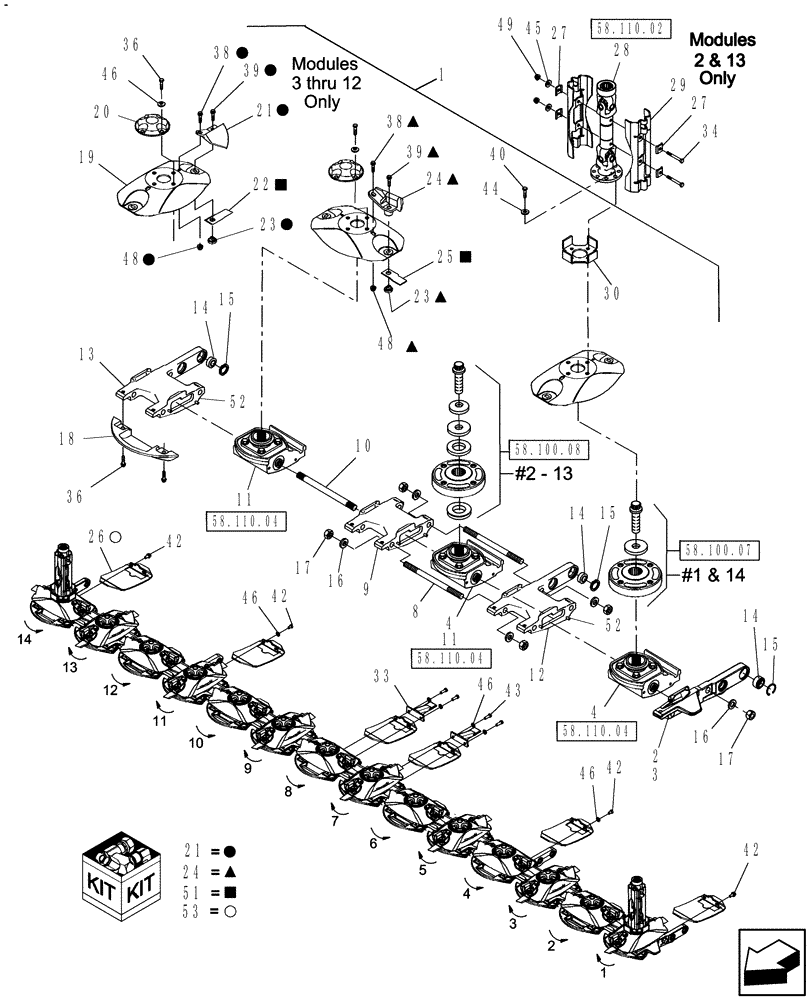

Запчасти Case IH RD182 (58.110.01[02]) - CUTTERBAR, 14 DISC (58) - ATTACHMENTS/HEADERS

1

87749857

CUTTERBAR

1шт.

Does not include PTO Assembly or guards.

1шт.

2

86640565

ARM

LH, Includes (2) of Ref. 52

1шт.

3

86631408

ARM

RH, Includes (2) of Ref. 52

1шт.

4

0C

ORDER COMPONENTS

CW Module

7шт.

8

86501934

THREADED ROD

28шт.

9

87044107

SPACER

9шт.

10

86519042

SHAFT

248mm

13шт.

11

0C

ORDER COMPONENTS

CCW Module

7шт.

12

86531774

SPACER

LH, Includes (4) of Ref. 52

1шт.

13

86531772

SPACER

RH, Includes (4) of Ref. 52

1шт.

14

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

8шт.

15

271429

SNAP RING,1.625", Int, #162

8шт.

16

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

56шт.

17

86518194

NUT,3/4"-10, G8

56шт.

18

87047845

STONEGUARD

14шт.

19

87646406

DISC

14шт.

20

87581143

CAP

See Also: Fig. 20.14.05[1]

12шт.

21

87528245

KIT

Lifter, CW, Includes: (2) Lifters, Hardware & Instructions

7шт.

22

86532078

KNIFE

"V"

14шт.

22

86621872

BLADE

CW, 14° Twist

14шт.

Standard equipment.

1шт.

22

87029587

BLADE

CW, 14° Twist, Over Serrated

14шт.

22

9847683

BLADE,Knife CW

CW

14шт.

23

87725066

NUT

28шт.

24

87528249

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions

7шт.

25

9847684

BLADE,Knife CCW

CCW

14шт.

25

87029588

BLADE

CCW, 14° Twist, Over-serrated

14шт.

25

86621873

BLADE

CCW, 14° Twist

14шт.

Standard equipment.

1шт.

26

87047426

SKID/SHOE

14шт.

26

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

14шт.

26

87622885

SHOE

Hi Stubble

14шт.

27

NSS

NOT SOLD SEPARAT

Reinforcement

8шт.

28

87519705

PTO

2шт.

29

84260963

KIT

Tall Drum, Inc: 27, 34, 45 & 49, Start Serial: YAG621201

2шт.

Drum Halves and Reinforcements Are NSS

1шт.

29

84469547

KIT

Tabbed Tall Drum, Inc: 27, 34, 45 & 49

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

30

86629689

DISC

2шт.

33

86632774

STOP

2шт.

34

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

35

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

36

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

76шт.

38

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

28шт.

39

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

28шт.

40

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

41

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

42

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

43

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

4шт.

44

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

46

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

56шт.

48

86544265

FLANGE NUT,Flg, 1/2"-13, G8

28шт.

49

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

51

86624751

KNIFE SET

Includes (10) Ref. 9, 14° CW Blades, & (10) Ref. 28, 14° CCW Blades

1шт.

51

86624752

KNIFE SET

Includes (16) Ref. 9, 14° CW Blades, & (16) Ref. 28, 14° CCW Blades

1шт.

51

87037027

SET OF BLADES

Includes (16) Ref. 9, 14° CW OS Blades, & (16) Ref. 28, 14° CCW OS Blades

1шт.

52

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

12шт.

53

715289026

DIA KIT, HARVESTER

Hi Stub, Includes: (8) of Ref. 26 Hi Skid Shoes & Instructions

1шт.
