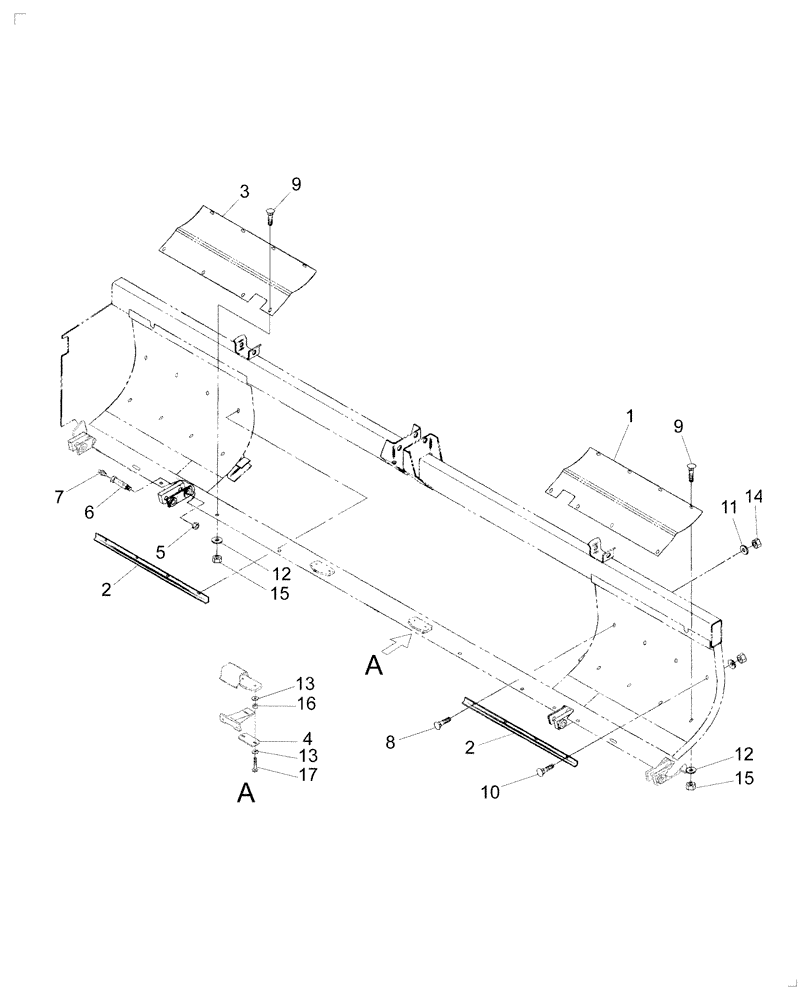

Запчасти Case IH RD162 (90.119.16) - FLOOR, GRASS SEED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87730200

FLOOR

LH

1шт.

2

86632465

ANGLE

3шт.

3

87730198

FLOOR

RH

1шт.

4

86633268

SHIM

2шт.

5

86557260

SPECIAL NUT

.75-10

8шт.

6

86571960

BOLT

8шт.

7

87414

LUBE NIPPLE,1/4" - 28

8шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

9

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

25шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

14

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

15

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

29шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

17

86508732

BOLT,5/8"-11 x 2.391" Cl 8

4шт.
