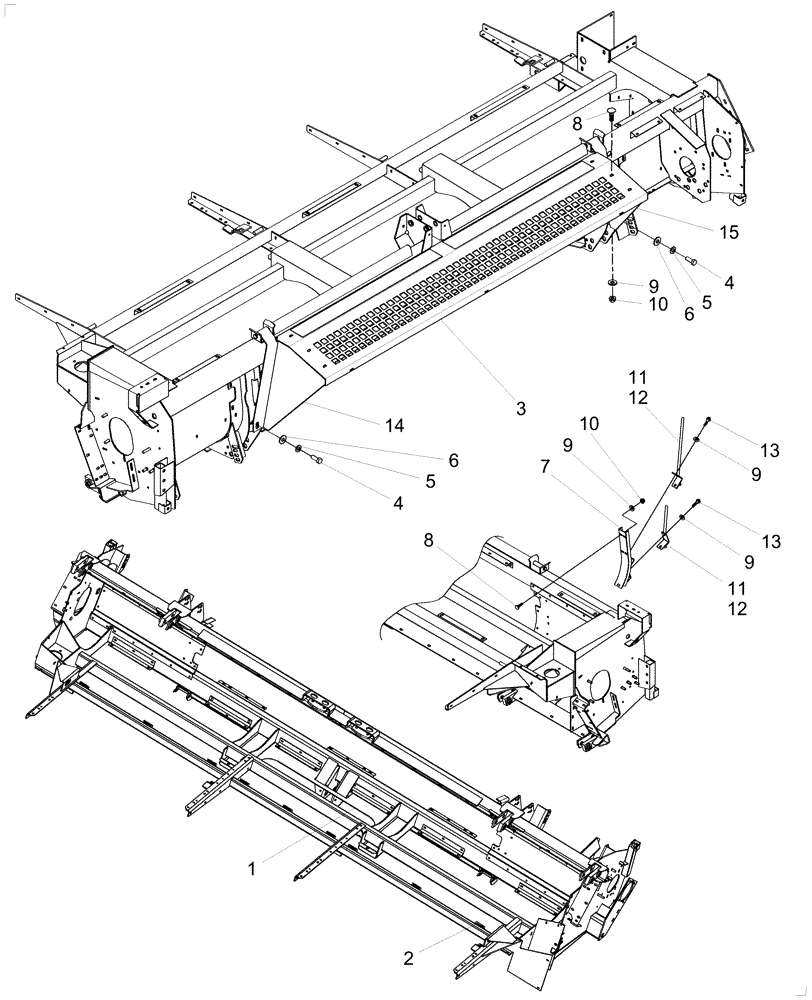

Запчасти Case IH RD162 (90.119.15) - DECK - GRASS SEED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Installed at Factory

1шт.

2

87709954

BRACKET

Dealer install, for second curtain

9шт.

Already installed on Grass Seed units.

1шт.

3

84132328

SHEET METAL

1шт.

Also used on RD182 less conditioner.

1шт.

4

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

5

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

6

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

7

87730206

BRACKET

2шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

11

87012926

ROD

LH

2шт.

12

87012927

ROD

RH

2шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

84132286

BRACKET

LH

1шт.

15

84132287

BRACKET

RH

1шт.
