Запчасти Case IH RD162 (90.119.06) - FLOOR, & HEADER CLOSURE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

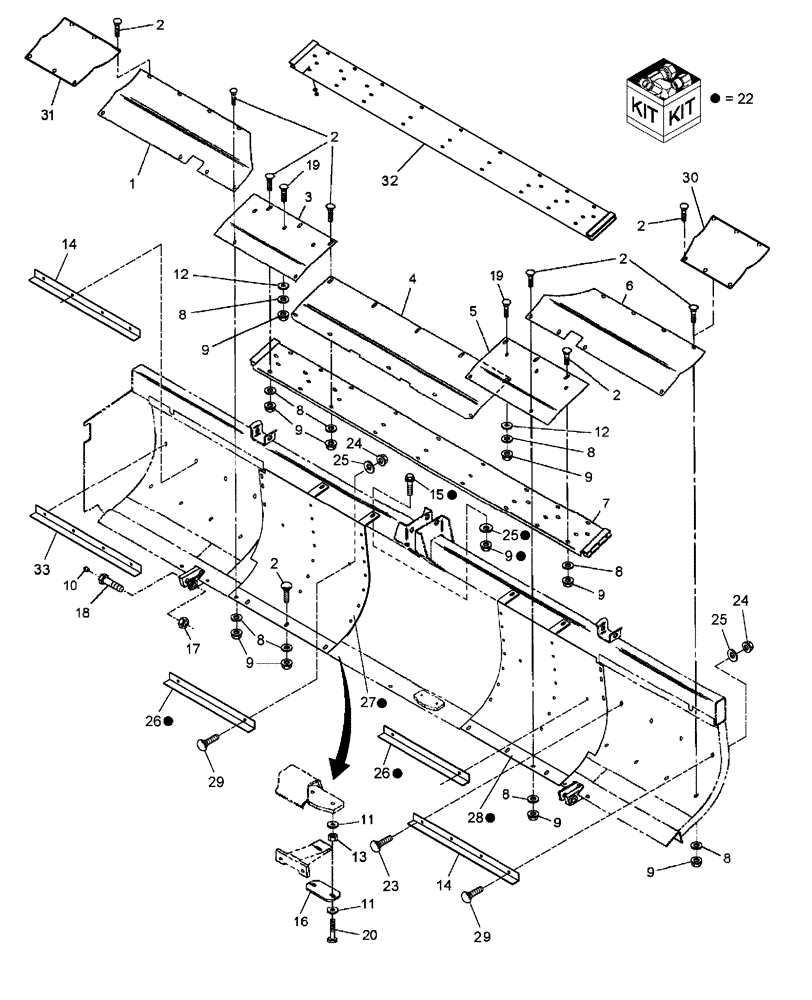

Схема запчастей Case IH RD162 - (90.119.06) - FLOOR, & HEADER CLOSURE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
19
1
28
27
25
31
10
23
9
2
2
2
17
25
11
8
22
19
14
12
25
5
8
12
9
9
24
15
32
29
7
26
2
9
3
2
8
16
18
4
30
8
11
8
9
13
33
26
24
29
9
14
9
20
8
9
8
2

Артикул

Название

Примечание

Количество

1

86584388

FLOOR

Insert, RH

1шт.

2

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

3

86554120

FLOOR

RH

1шт.

4

86532466

FLOOR

Center

1шт.

5

86532468

FLOOR

LH

1шт.

6

86584387

FLOOR

Insert, LH

1шт.

7

86633267

PLATE

Extension

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

8шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

14

86632465

ANGLE

14 Ft.

2шт.

15

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

86633268

SHIM

1шт.

17

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

8шт.

18

86571960

BOLT

Special

8шт.

19

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

6шт.

20

86508732

BOLT,5/8"-11 x 2.391" Cl 8

4шт.

22

716539016

ATTACHMENT

Kit, Header Closure, Includes Parts Indicated & Hardware

1шт.

23

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

24

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

26

86633368

ANGLE

2шт.

27

86633372

FLOOR

Extension RH

1шт.

28

86633370

FLOOR

Extension LH

1шт.

29

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

30

87482064

FLOOR

Insert, LH, RD182

1шт.

31

87482065

FLOOR

Insert, RH, RD182

1шт.

32

86633267

PLATE

Extension, RD182

1шт.

33

87659757

STRIP

RD182

2шт.

Выбрано товаров: 32
