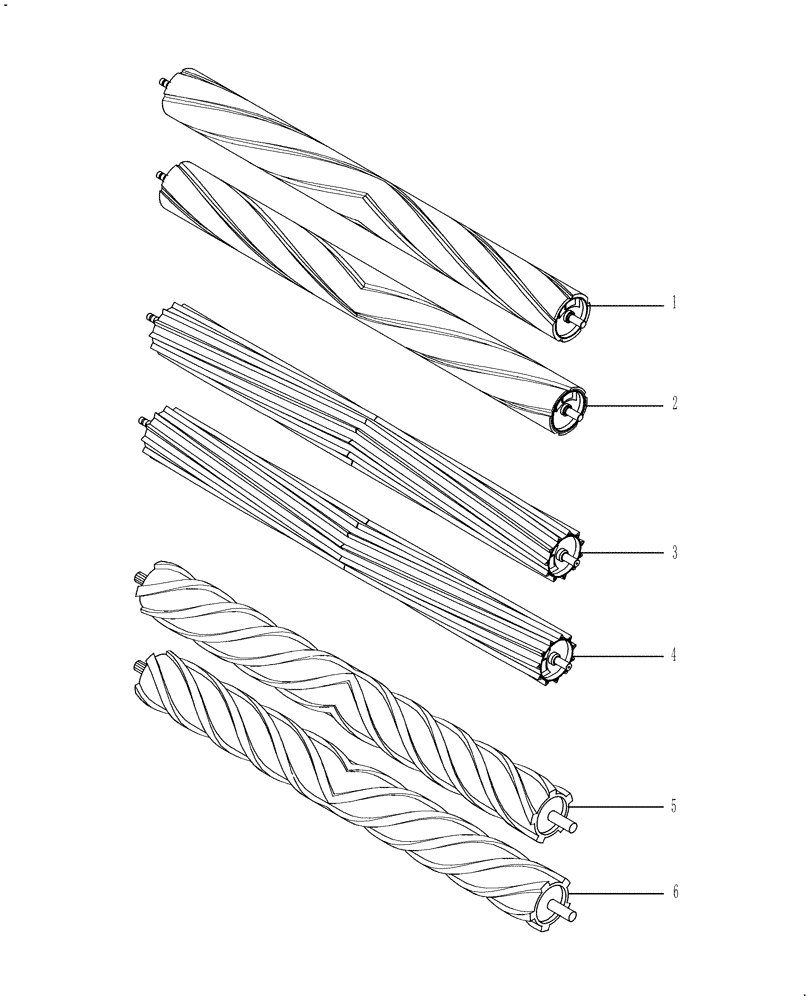

Запчасти Case IH RD162 (60.620.02[02]) - CONDITIONING ROLLS, CHEVRON (60) - PRODUCT FEEDING

1

87379229

ROLLER ASSY.,247.6mm OD x 2846.2mm L

HI Contact, Chevron Rubber, Upper

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

See Also: Ref. 32

1шт.

2

87379229

ROLLER ASSY.,247.6mm OD x 2846.2mm L

HI Contact, Chevron Rubber, Lower

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

See Also: Ref. 32

1шт.

3

84294055

ROLL

Steel, Chevron, Upper

1шт.

Do Not Intermix Steel and Rubber Rolls

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

4

84294053

ROLL

Steel, Chevron, Lower

1шт.

Do Not Intermix Steel and Rubber Rolls

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

5

87489875

ROLL

Rubber, Chevron, Upper

1шт.

Do Not Intermix Steel and Rubber Rolls

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

5

84392692

ROLL,263.5mm OD x 2798.24mm L

Chevron Rubber Upper, Start Year: 01-MAR-11

1шт.

5

84392692R

REMAN-ROLLER

Chevron Rubber Upper

1шт.

5

84392692C

CORE-ROLLER

Return Number

1шт.

6

87490270

ROLL

Rubber, Chevron, Lower

1шт.

Do Not Intermix Steel and Rubber Rolls

1шт.

When Converting From Spiral to Chevron, Use Chevron on Top and Bottom

1шт.

6

84392701

ROLL

Rubber, Lower, Start Year: 01-MAR-11

1шт.

6

84392701R

REMAN-ROLLER

Rubber, Lower

1шт.

6

84392701C

CORE-ROLLER

Return Number

1шт.
