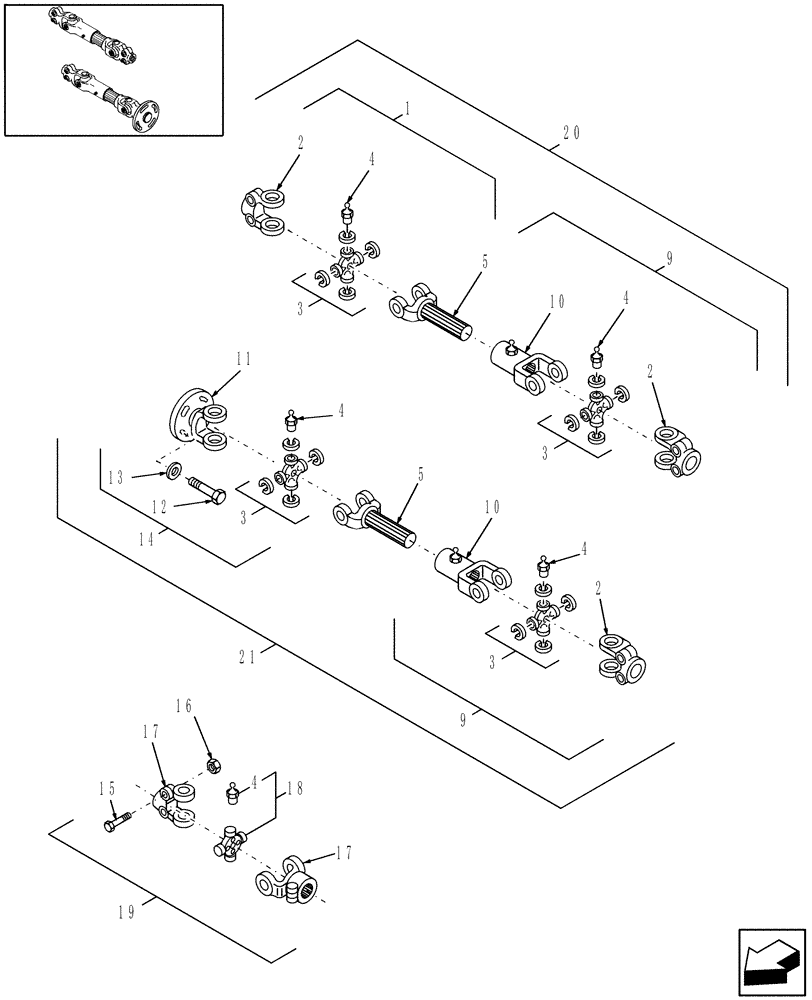

Запчасти Case IH RD162 (60.620.01) - CONDITIONER DRIVE SHAFTS (60) - PRODUCT FEEDING

1

86571222

PTO

Includes: Ref. 2 thru 5

1шт.

2

86507085

YOKE

& Clamp

3шт.

3

9847253

BEARING ASSY

Includes: Ref. 4

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

7шт.

5

86571226

YOKE

& Shaft

2шт.

6

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

6шт.

9

86571224

PTO

Includes: Ref. 2, 3, 4 & 10

2шт.

10

86571225

YOKE

Slip, Includes: Ref. 4

2шт.

11

86533168

YOKE

Flange

1шт.

12

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

13

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

8шт.

14

86571223

PTO

Includes Ref. 3, 5, & 11

1шт.

15

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

16

280431

NUT,1/2"-13, G5

2шт.

17

87027863

YOKE

& Clamp

2шт.

18

86520904

BEARING ASSY

Spider, Includes: Ref. 4

1шт.

19

87033945

KIT

Includes: 15 (4), 16 (4), 17 (2) & 18

1шт.

20

87564987

PTO

Includes: Ref.'s 1, 2, 3, 5, 9, & 10

1шт.

21

87564986

PTO

Includes: Ref.'s 2, 3, 5, 9, 10, 11, & 14

1шт.
