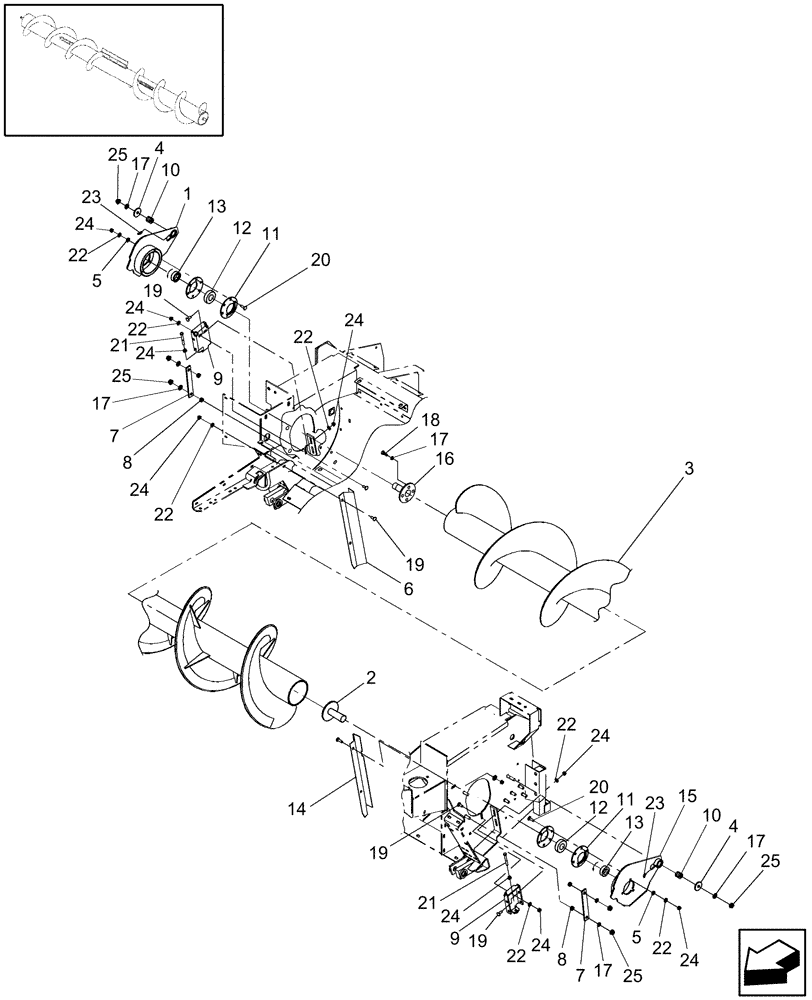

Запчасти Case IH RD162 (58.120.01[02]) - AUGER ASSEMBLY - GRASS SEED (58) - ATTACHMENTS/HEADERS

1

87582156

ARM

RH, Includes Ref. 2

1шт.

1

84346262

ARM

RH, Includes Ref. 2

1шт.

2

87582139

SHAFT

Shaft, Weld In Place Part

1шт.

3

87641115

AUGER

Tapered

1шт.

3

84217289

AUGER

Tapered, With 5/16" Flighting

1шт.

4

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

13.5ID x 50.8OD x 5.0Thk

2шт.

5

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

6

87594432

DEFLECTOR

RH

1шт.

7

86625581

GUIDE

2шт.

8

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

9

86631571

BRACKET

Auger Stop

2шт.

10

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

11

138820

FLANGED BEARING

4шт.

12

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

13

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

14

87594431

DEFLECTOR

LH

1шт.

15

87582155

ARM

LH, Includes Ref. 2

1шт.

15

84346241

ARM

LH, Includes Ref. 2

1шт.

16

87582146

SHAFT

Shaft

1шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

BV, 1/2"

10шт.

18

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

19

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

20

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

21

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

23

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

18шт.

25

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.
