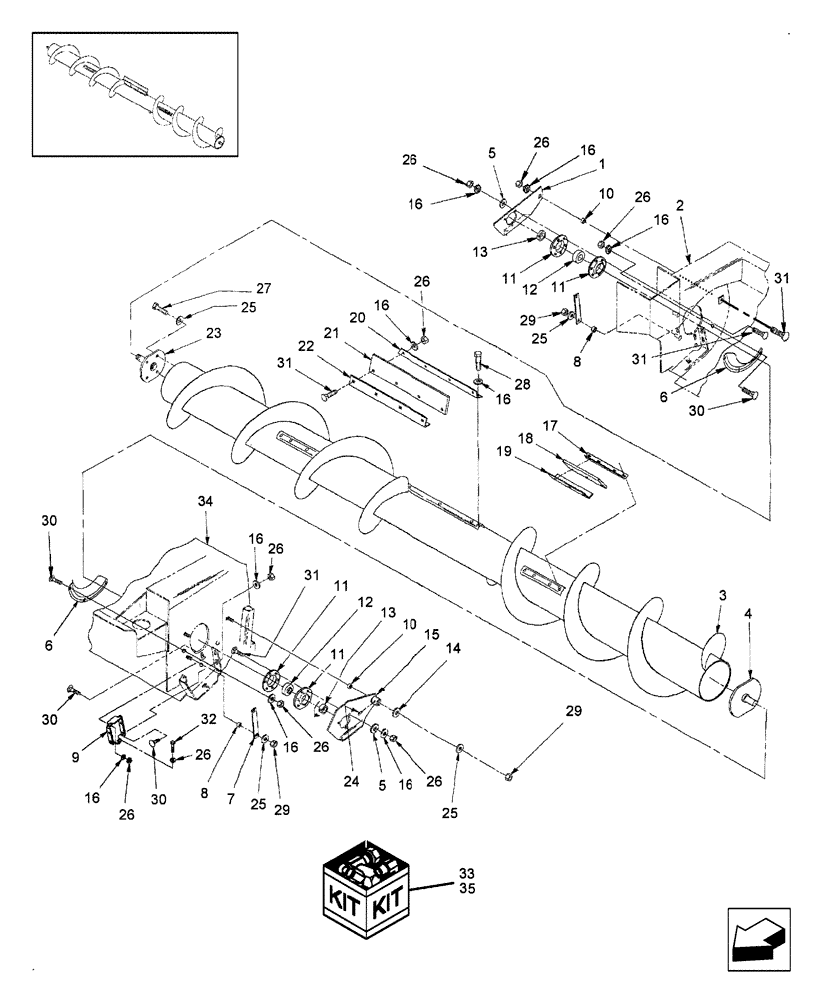

Запчасти Case IH RD162 (58.120.01[01]) - AUGER ASSEMBLY, 10" CENTER TUBE (58) - ATTACHMENTS/HEADERS

1

87646859

ARM ASSY.

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

87047799

AUGER

Includes: Ref. 4 & 23

2шт.

4

86629902

SHAFT

1шт.

5

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

6

87048721

SHIELD

Anti-Wrap

2шт.

7

86625581

GUIDE

2шт.

8

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

9

86631571

BRACKET

Auger Stop

2шт.

10

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

11

86635012

FLANGE

4шт.

12

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

13

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

14

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

15

87646858

ARM ASSY.

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

38шт.

17

86631019

BRACKET

1шт.

18

9843137

PADDLE

11"

4шт.

19

86632467

STRIP

4шт.

20

86632437

BRACKET

2шт.

21

9843136

PADDLE

24"

2шт.

22

86632466

STRIP

2шт.

23

86979776

SHAFT

21T Spline

1шт.

24

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

6шт.

26

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

40шт.

27

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

28

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

26шт.

29

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

31

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

26шт.

32

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

33

87010547

KIT

Auger Reinforcement

1шт.

34

87622901

FRAME

1шт.

35

87639949

CONVERSION KIT

Auger; For Component Breakdown, See Fig. 20.14.09/03

1шт.

Used to replace 10" center tube with 6" center tube auger.

1шт.
