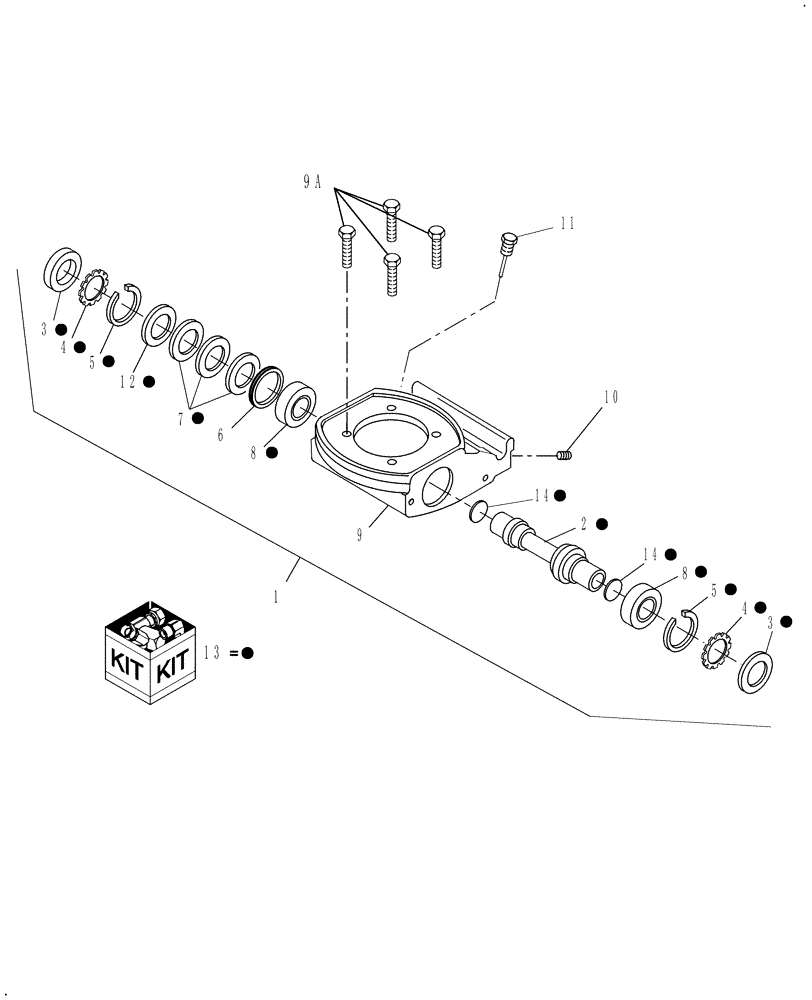

Запчасти Case IH RD162 (58.110.04) - CW & CCW MODULE (58) - ATTACHMENTS/HEADERS

1

84220789

MODULE,ASSEMBLY, CW SPA

Module, CW

1шт.

1

84220789R

REMAN-GEARBOX

RD162, RD182

1шт.

1

84220789C

CORE-GEARBOX

Return Number

1шт.

1

84220790

MODULE

Module, CCW

1шт.

1

84220790R

REMAN-GEARBOX

RD162, RD182

1шт.

1

84220790C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Pinion, 14T

1шт.

3

86511201

SEAL

2шт.

4

86515894

SLINGER

2шт.

5

86508784

SNAP RING

Int, 2.312"

2шт.

6

NS

NOT SERVICED

Spacer, (No Longer Serviced, Use Ref.7)

2шт.

7

122271

SHIM,.003" Thk

1шт.

7

122272

SHIM,.005" Thk

1шт.

7

122273

SHIM,.007" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing

2шт.

9

87044115

HOUSING

1шт.

9a

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

10

86568834

PLUG,1/4" - 18 NPT

1шт.

11

86506262

DIPSTICK

1шт.

12

86524423

WASHER

1шт.

2 Washers are included with Pinion Kit, Ref. 13.

1шт.

13

84220791

PINION

1шт.

Use shims, Ref. 7 in place of Ref. 6 to adjust end play. Shims are installed between washers, Ref. 12

1шт.

14

87744672

RUBBER JOINT

2шт.
