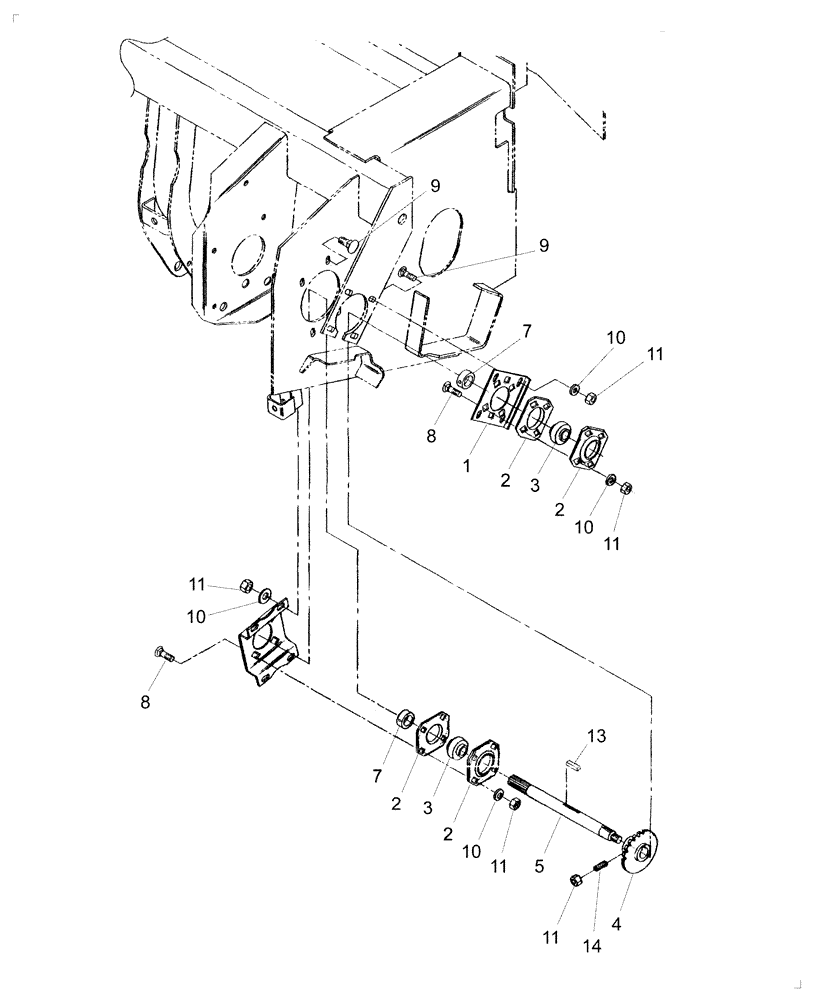

Запчасти Case IH RD162 (58.100.06) - GEARBOX DRIVE - GRASS SEED (58) - ATTACHMENTS/HEADERS

1

86633554

PLATE

1шт.

2

86974037

FLANGE

4шт.

3

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

4

86611314

DRIVING SPROCKET

1шт.

5

86601761

SHAFT

1шт.

6

86633555

SHEET

1шт.

7

45393

COLLAR

2шт.

8

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

8шт.

9

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

10

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

16шт.

11

9628503

NUT,3/8"-16, G5

2шт.

12

86521607

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

13

224132

KEY

1шт.

14

80435

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

2шт.
