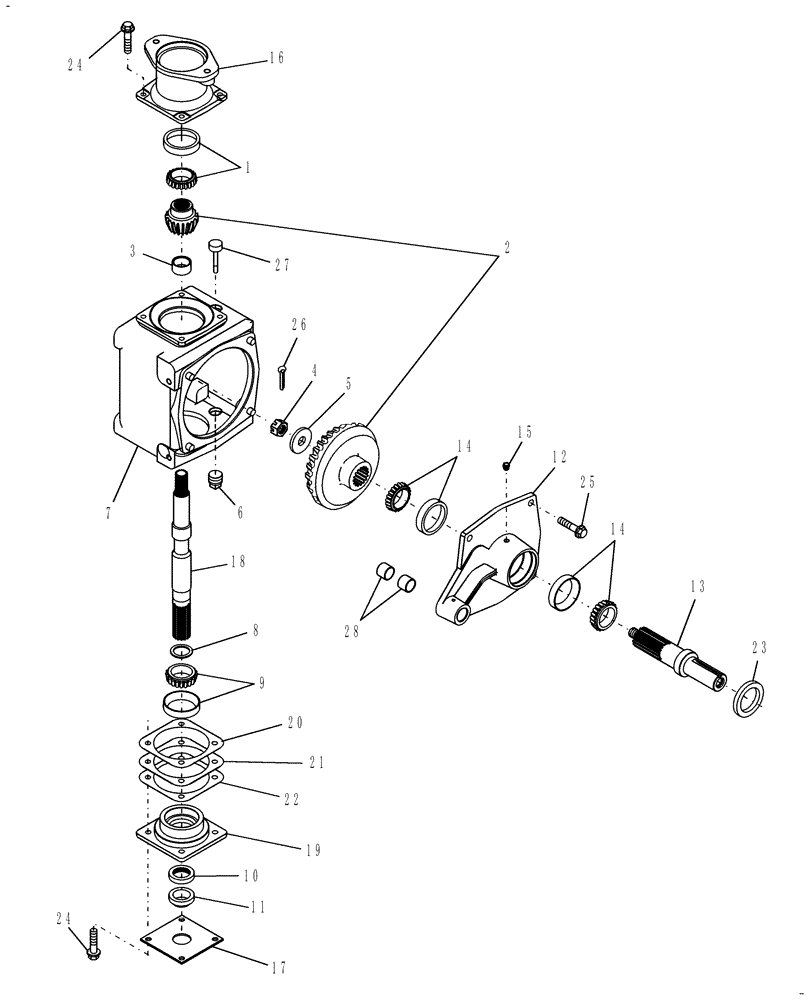

Запчасти Case IH RD162 (58.100.05) - GEARBOX, BELT DRIVE (58) - ATTACHMENTS/HEADERS

87582682

GEARBOX

Gearbox, Includes: Ref. 1 thru 28

1шт.

87582682R

REMAN-GEARBOX

Reman Gearbox

1шт.

87582682C

CORE-GEARBOX

Return Number

1шт.

1

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

1шт.

2

87054843

GEAR SET

1шт.

3

87585164

SLEEVE

1шт.

4

88886

SLOTTED NUT,3/4"-16

1шт.

5

86516694

WASHER

3/4"

1шт.

6

80815

PLUG,Sq Hd, 3/4"-14

1шт.

7

86532398

GEARBOX

1шт.

8

86000341

SNAP RING,#137. Ext

1шт.

9

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

10

634036

OIL SEAL

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

11

84138975

HUB

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

12

86632441

COVER

Includes: Ref. 28

1шт.

13

87541435

GEAR SHAFT

L = 11-1/2"

1шт.

14

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

15

572820

BREATHER

1шт.

16

86640567

CAP COVER

1шт.

17

87028086

SHIELD

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

18

86532584

SHAFT

16-3/8" L

1шт.

19

87022171

HUB

Cap

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

20

86501593

SHIM

Steel, .002"

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

21

86501594

SHIM

Steel, .010"

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

22

86501595

SHIM

Steel, .003"

1шт.

Component of Antiwrap Kit, 87528482.

1шт.

23

189602

SEAL,53.98mm ID x 76.38mm OD x 9.53mm Thk

3" ID

1шт.

24

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

26

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

27

86564382

DIPSTICK

1шт.

28

27767

BUSHING

2шт.
