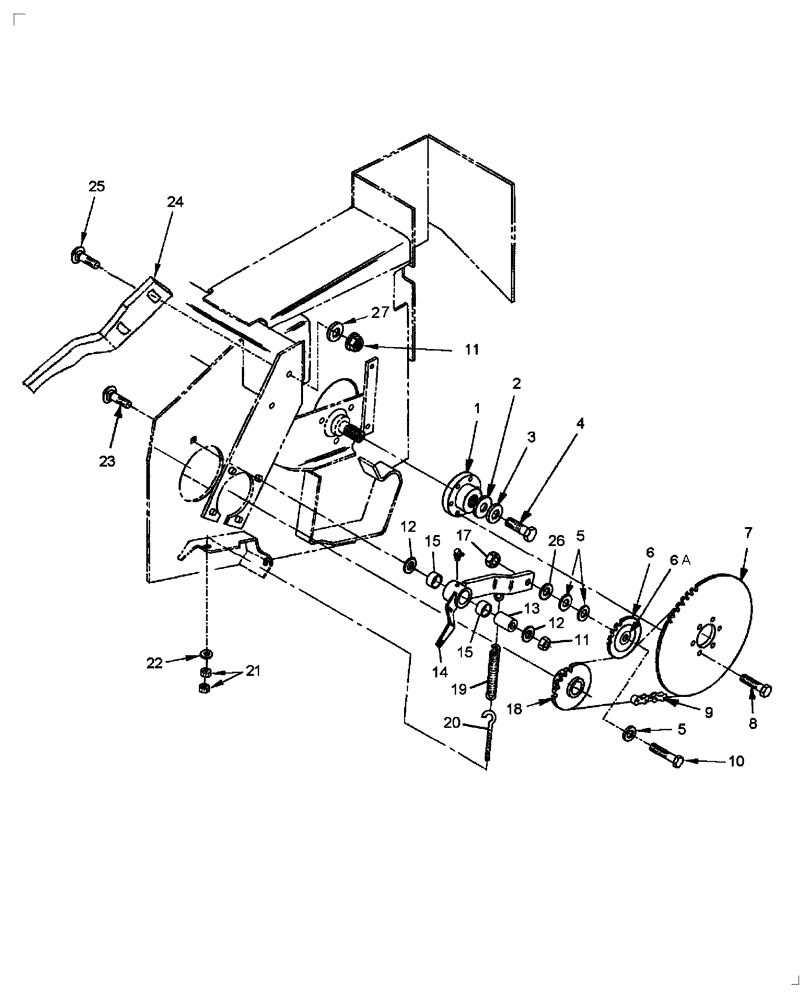

Запчасти Case IH RD162 (58.100.03) - CHAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

86543237

HUB

1шт.

2

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

1шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

4

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

5

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

3шт.

6

86576898

SPROCKET

12T, RC 80 Chain, Includes Ref. 6A

1шт.

6a

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

7

86620746

DRIVEN SPROCKET

37T, RC 80 Chain

1шт.

8

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

9

86588944

CHAIN

Roller, RC 80, 62 Pitches

1шт.

9

87470940

CHAIN (AG),RC 80, 60 Links x 25.4mm = 2032mm

Roller, RC 80, 60 Pitches

1шт.

9

140774

LINK

Roller, RC 80 [Qty 59 Grass seed]

61шт.

9

86643889

CONNECTING LINK

Roller, RC 80, Cotter-style

1шт.

10

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

1шт.

11

86521607

FLANGE NUT,Flg, 1/2"-13, G5

3шт.

12

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

Flat, 1/2"

2шт.

13

9849929

SPACER

1шт.

14

86633566

ARM

Includes Ref. 15

1шт.

15

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

1-3/16" ID x 3/4" L

1шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

17

86521608

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

18

86611314

DRIVING SPROCKET

13T, RC80 Chain

1шт.

19

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

1шт.

20

631201

EYEBOLT

3/8"-16 x 5-1/2"

1шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

23

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

24

86633568

ARM

1шт.

25

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

26

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

21/32" ID x 1-1/16" OD x 1/16" Thk

1шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

Grass Seed units.

1шт.
