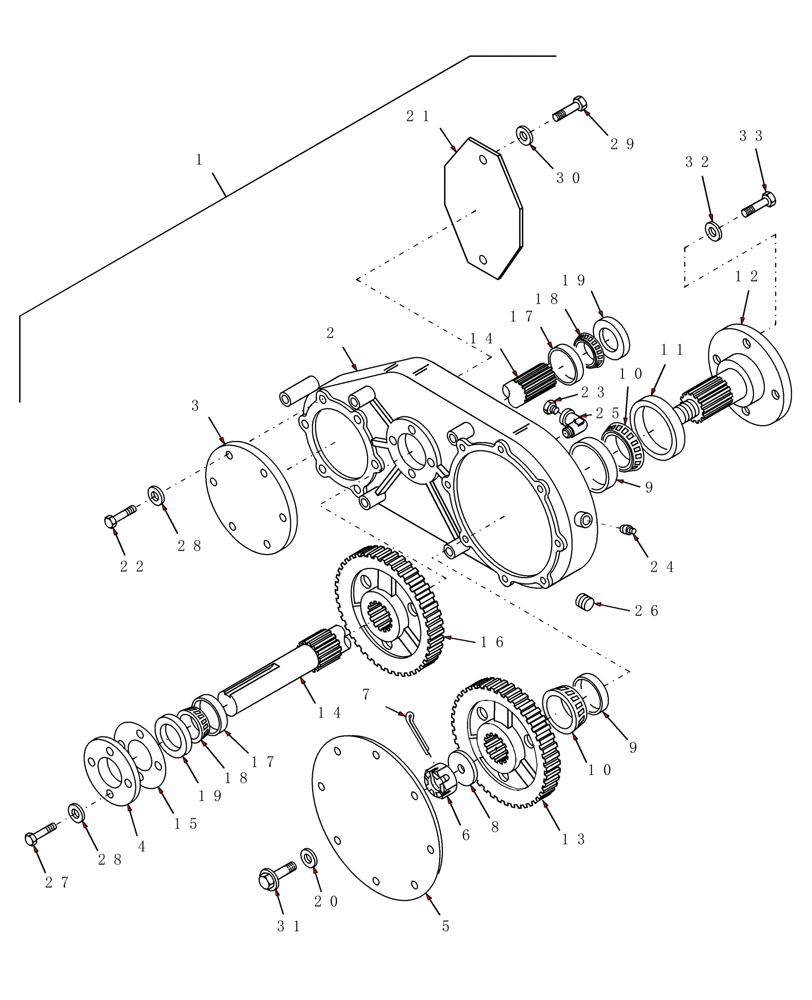

1
87567912
GEARBOX
Use W/ 44cc Hyd. Motor, Includes: Ref. 2 - 35
1шт.
1
87567912R
REMAN-GEARBOX
Remanufactured Gearbox
1шт.
1
87567912C
CORE-GEARBOX
Return Number, Gearbox
1шт.
2
NSS
NOT SOLD SEPARAT
Housing
1шт.
3
87013725
COVER
1шт.
4
247491
COVER
1шт.
5
86632444
COVER
1шт.
6
116311
SLOTTED NUT
Slotted, G2, 3/4"-16
1шт.
7
87395
COTTER PIN,1/8" OD x 1-1/4" OAL
1шт.
8
56867
WASHER
1шт.
9
175508
BEARING CUP,59.16mm OD x 11.94mm W
2шт.
10
175507
BEARING CONE,35 mm ID x 16.764 mm
2шт.
11
694956
SEAL
1шт.
12
9847669
SHAFT
1шт.
13
87051773
GEAR,48T External, 23T Spline
48T, Forged, Do Not Mix With Cast Gears.
1шт.
14
86555379
SHAFT
1шт.
15
136804
SHIM,.003" Thk
1шт.
15
136803
SHIM,.005" Thk
1шт.
15
136802
SHIM,.0075" Thk
1шт.
15
86617096
SHIM
.018" Thk
1шт.
16
87051765
GEAR,48T External, 23T Spline
48T, Forged, Do Not Mix With Cast Gears.
1шт.
17
36723
BEARING CUP,59.16mm OD x 11.81mm W
2шт.
18
36726
BEARING CONE,31.75mm ID x 16.76mm W
2шт.
19
701519
OIL SEAL
2шт.
20
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
8шт.
21
86632445
COVER
1шт.
22
9628510
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
23
572820
BREATHER
1шт.
24
80781
PLUG,3/8" - 18 NPT
Pipe
1шт.
25
86511898
ELBOW
90°, Street, Brass
1шт.
26
263136
MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF
PLUG, MAGNETIC
1шт.
27
280523
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
4шт.
28
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
10шт.
29
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
2шт.
30
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
31
86521552
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
32
65319
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
4шт.
33
86533474
FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
