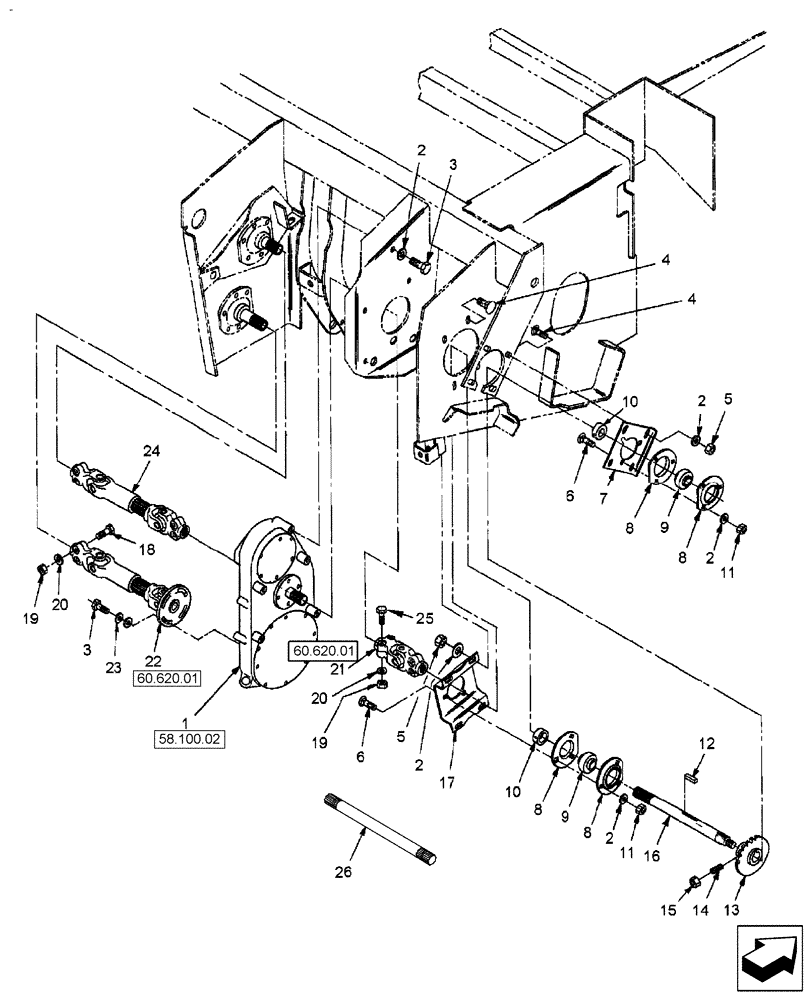

Запчасти Case IH RD162 (58.100.01) - CONDITIONER GEARBOX DRIVE MOUNTING (58) - ATTACHMENTS/HEADERS

1

87567912

GEARBOX

Use W/ 44cc Motor, Start Serial: YAG621205

1шт.

1

87567912R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

87567912C

CORE-GEARBOX

Return Number

1шт.

2

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

21шт.

3

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

9шт.

4

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

5

86521607

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

6

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

8шт.

7

86633554

PLATE

1шт.

8

848286

FLANGE

4шт.

9

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

2шт.

10

45393

COLLAR

2шт.

11

280431

NUT,1/2"-13, G5

4шт.

12

224132

KEY

5/16" Sq x 2"

1шт.

13

86611314

DRIVING SPROCKET

13T, RC80 Chain

1шт.

14

80435

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

2шт.

15

9628503

NUT,3/8"-16, G5

2шт.

16

86601761

SHAFT

19T, 1-3/8" Dia.

1шт.

17

86633555

SHEET

1шт.

18

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

6шт.

19

280963

NUT,Nut, 1/2-20 GR 5 ZND

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

21

87033945

KIT

1шт.

2 used if unit is less conditioner.

1шт.

22

87564986

PTO

Flanged, Timed

1шт.

23

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

24

87564987

PTO

Timed

1шт.

25

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

26

87689508

SHAFT

L/Conditioner, 770HD

1шт.
