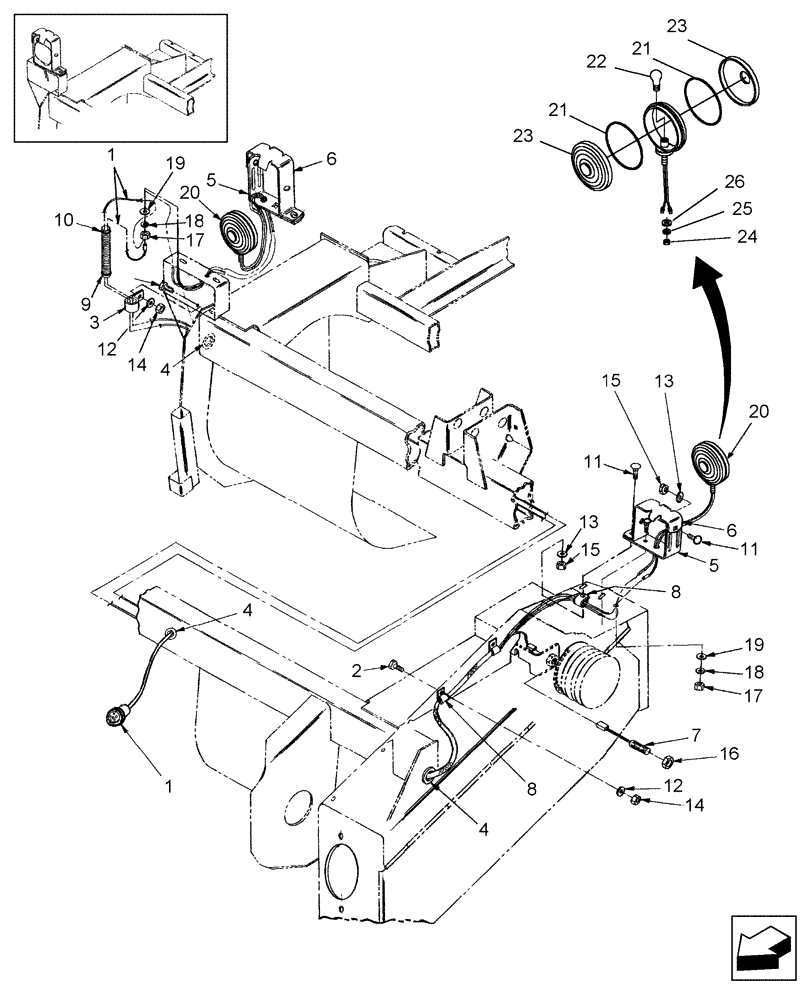

Запчасти Case IH RD162 (55.100.01) - ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

87709969

WIRE HARNESS

1шт.

2

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

4

237915

GROMMET

3шт.

5

87648305

BRACKET

2шт.

6

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

9825943

SENSOR

1шт.

8

86557777

PLASTIC-RUBBER TUBE,0.51" ID x 9.00" L

1шт.

9

591182

BAND

5шт.

10

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

15

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

16

14084111

LOCK NUT,M5 x .8, Flg

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

19

367321A1

LAMP

Has Two 5m studs on bottom

2шт.

20

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

2шт.

21

529068

BULB,#1156, 12V, 21W

2шт.

22

86576124

LENS

2шт.

23

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.
