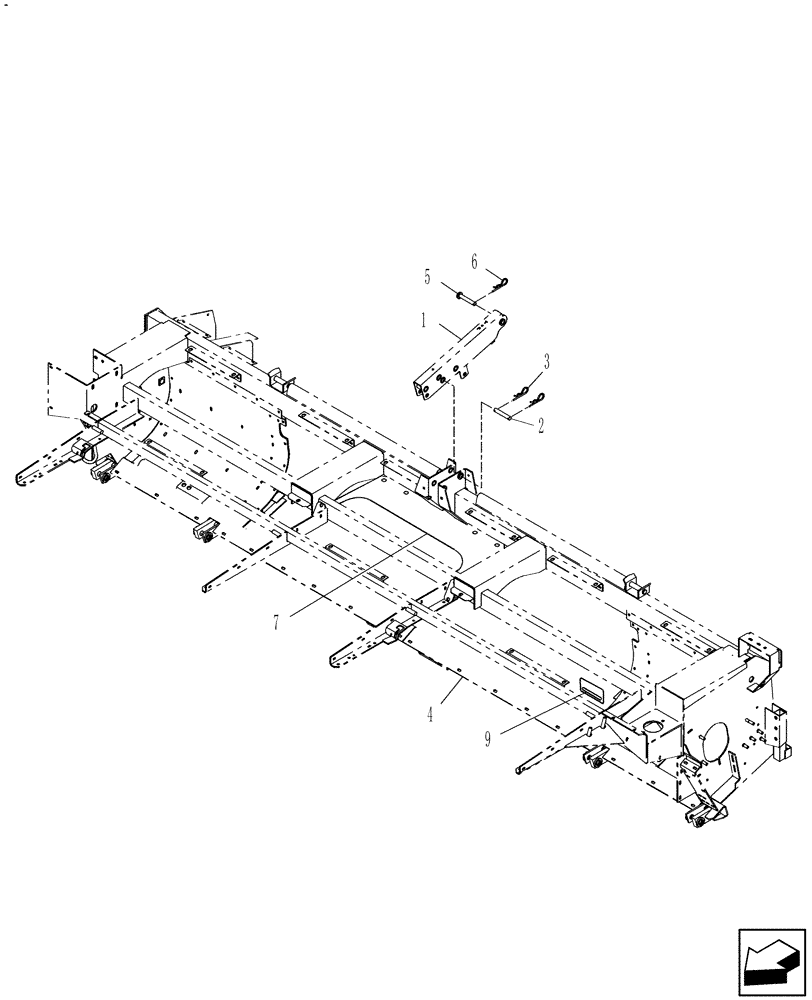

Запчасти Case IH RD162 (39.100.01) - HEADER FRAME (39) - FRAMES AND BALLASTING

1

87524587

CHANNEL

1шт.

2

86596231

PIN

2шт.

3

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

4шт.

4

87622901

FRAME

RD162, See Figure Note

1шт.

4

87482060

HEADER

RD182

1шт.

5

84206494

PIN,19.05mm OD x 108.07mm L

98.5 x 19, Headed, HT, GR8

1шт.

6

86000109

COTTER PIN

1шт.

7

NS

NOT SERVICED

Plate, Welded, Grass Seed Special

1шт.

8

87709954

BRACKET

Bracket, Welded, Grass Seed Special

9шт.
