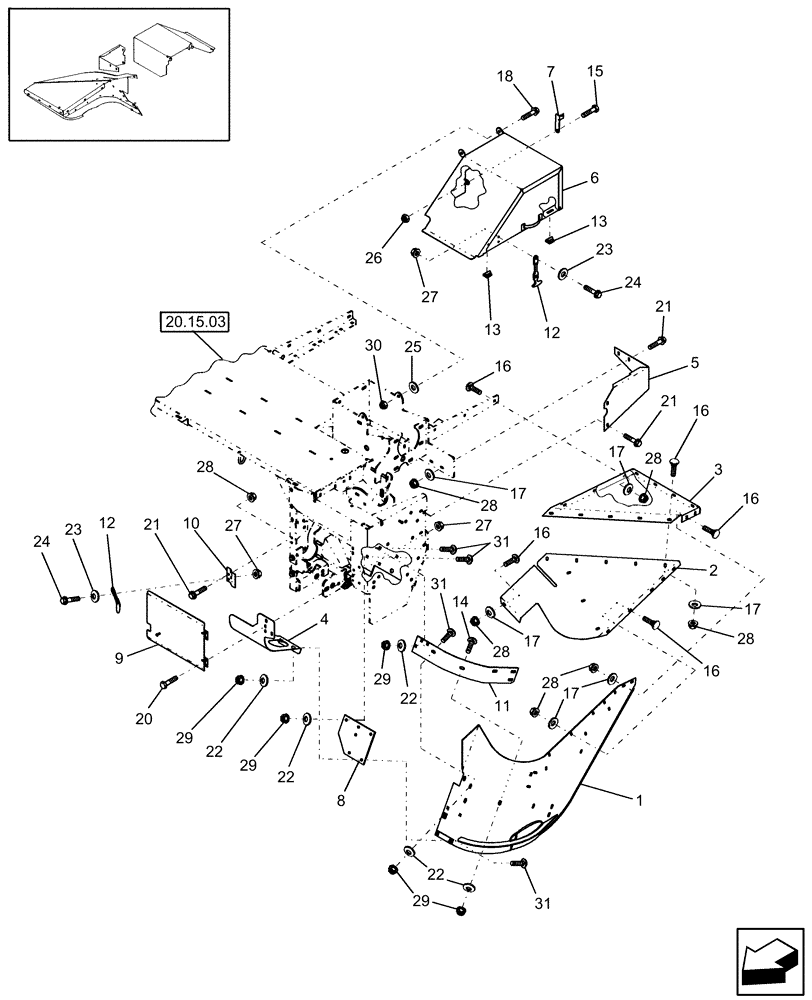

Запчасти Case IH RD132 (20.08.05) - SHIELDING, RIGHT SIDE (00) - COMPLETE MACHINE

1

87047997

SHEET

1шт.

2

87659730

SHEET

RH Top

1шт.

Includes decals.

1шт.

3

86632224

SUPPORT

1шт.

Includes decals.

1шт.

4

87387380

SHIELD

1шт.

5

87519304

SHIELD

1шт.

6

87522872

SHIELD

1шт.

7

87534014

SUPPORT

1шт.

8

86631739

PLATE

1шт.

9

87387389

DOOR

1шт.

10

87387392

CLIP

1шт.

11

87399537

SUPPORT

1шт.

12

86000448

LATCH

2шт.

13

138140

BUMPER

2шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

16

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

18

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

20

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

21

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

23

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

3шт.

24

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

25

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

27

9626558

FLANGE NUT,Flg, 1/4"-20

7шт.

28

86521605

FLANGE NUT,5/16"-18, Cl 5

20шт.

29

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

13шт.

30

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

31

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

9шт.
