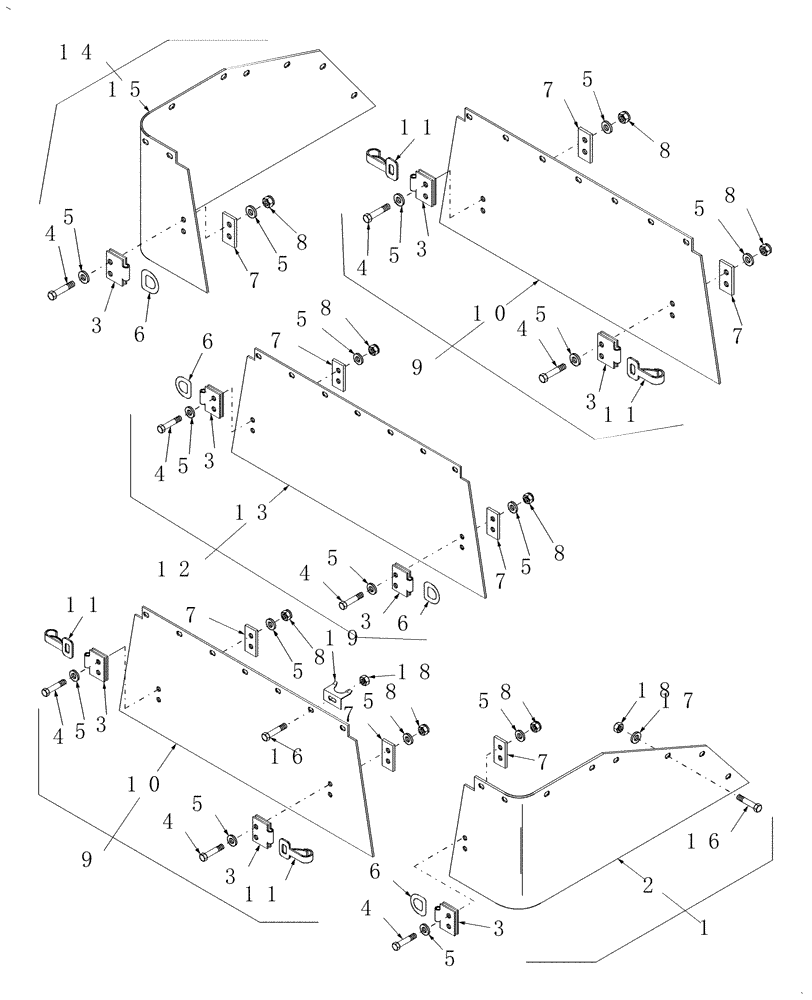

Запчасти Case IH RD132 (20.08.04) - SKIRTS, FRONT (00) - COMPLETE MACHINE

1

86522267

SKIRT

LH, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Skirt

1шт.

3

9604627

STRAP

8шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

16шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

32шт.

6

9604626

RING

4шт.

7

9604628

STRAP

Backup

8шт.

8

280129

NUT,1/4"-20

16шт.

9

86522272

PROTECTING COVER

Hood, Includes: Ref. 3 - 5, 7, 8, 10, & 11

2шт.

10

NSS

NOT SOLD SEPARAT

Skirt

2шт.

11

9604631

SPRING CLIP

Snap

4шт.

12

86522269

RUBBER

Center, Includes: Ref. 3 - 8, & 13

1шт.

13

NSS

NOT SOLD SEPARAT

Skirt

1шт.

14

86522266

RUBBER

RH, Includes: Ref. 3 - 8, & 15

1шт.

15

NSS

NOT SOLD SEPARAT

Skirt

1шт.

16

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

38шт.

17

577826

WASHER

5/16" SAE

29шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

38шт.

19

86582727

CLIP

9шт.
