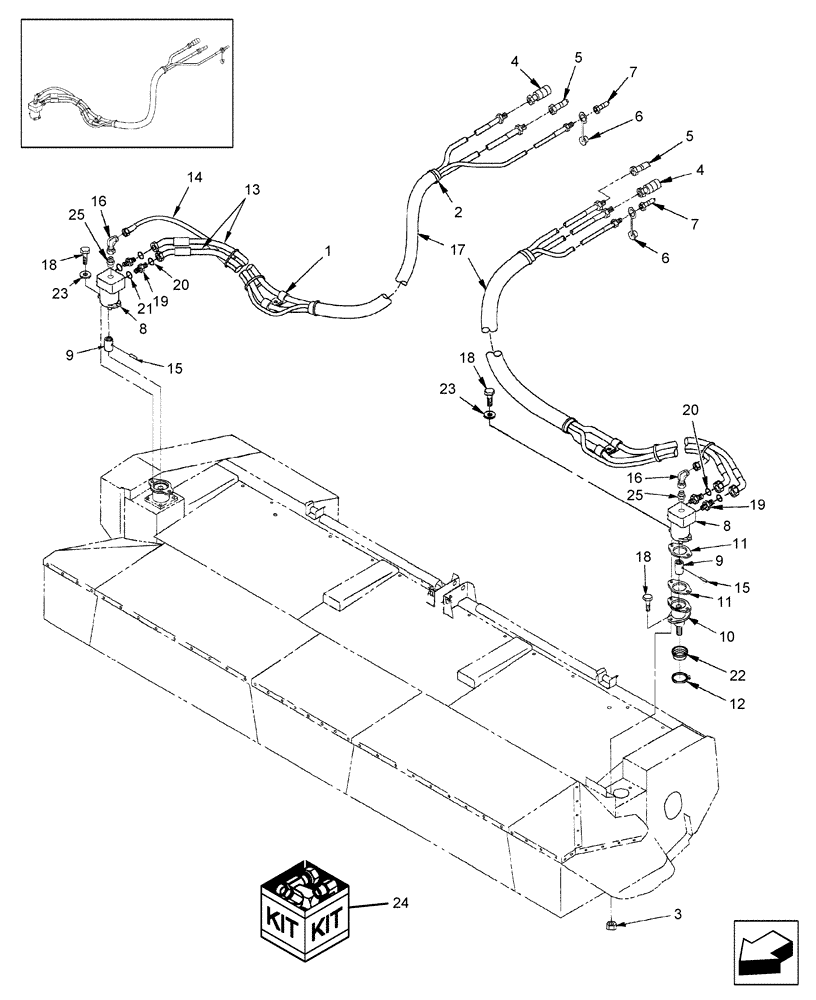

Запчасти Case IH RD132 (20.07.01) - HYDRAULICS, HEADER (00) - COMPLETE MACHINE

1

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

3

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

4

86564734

COUPLING

Female

2шт.

5

9820148

COUPLING,1-1/16" - 12

Male

2шт.

6

86621124

DUST CAP

2шт.

7

87037008

QUICK MALE COUPLING

Nipple

2шт.

8

87037263

MOTOR

See Also: Ref. 28

2шт.

8

87037263R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

8

87037263C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

8

87298020

REMAN-HYD MOTOR

Remanufactured, HYDRAULIC MOTOR

1шт.

8

87298021

CORE-MOTOR HYDRAULIC

Return Number N.A. Only

1шт.

8

87037263R

REMAN-HYD MOTOR

Reman for New PN 87298020

1шт.

8

87037263C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

9

601802

COUPLING,15T

2шт.

10

87053662

HOUSING ASSY.

Coupling

1шт.

11

763604

GASKET

3шт.

12

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

1шт.

13

87565607

HOSE ASSY.

Includes: O-Ring

4шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

14

87565608

HOSE ASSY.

Includes: O-Ring

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

2шт.

16

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

17

86520217

SLEEVE

1шт.

18

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

19

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Includes Ref. 20 & 21

4шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

22

87013676

SHIELD

1шт.

23

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

24

87060667

SEAL KIT

Services Ref. 8

1шт.

25

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: O-Ring

2шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
