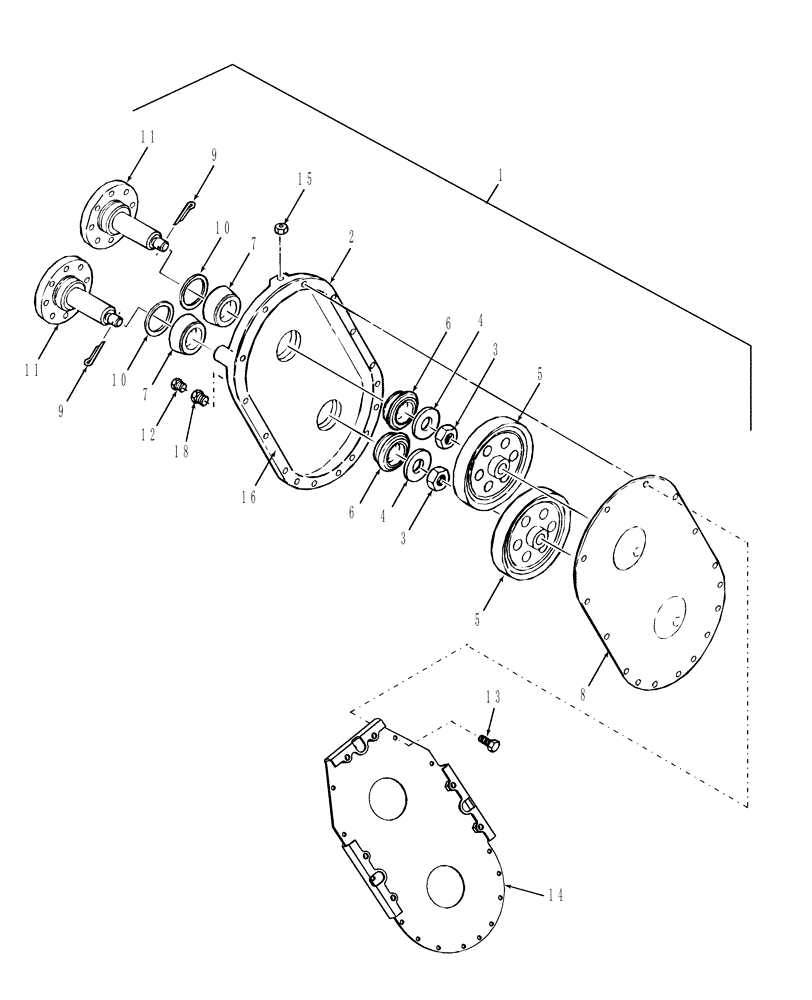

Запчасти Case IH RD132 (20.15.02) - GEARBOX, CONDITIONER (00) - COMPLETE MACHINE

1

87515809

GEARBOX ASSY

Includes: Ref. 2 - 17

1шт.

1

87515809R

REMAN-GEARBOX

Reman Gearbox, RD132 Disc Mower Cond. Header 11/07-->

1шт.

1

87515809C

CORE-GEARBOX

Return Number

1шт.

2

NS

NOT SERVICED

Housing

1шт.

3

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

2шт.

4

56867

WASHER

2шт.

5

87051763

GEAR

Spur, 63T

2шт.

6

175508

BEARING CUP,59.16mm OD x 11.94mm W

4шт.

7

175507

BEARING CONE,35 mm ID x 16.764 mm

4шт.

8

9847741

COVER

1шт.

9

80750

COTTER PIN,1/8" x 1 1/8"

2шт.

10

694956

SEAL

2шт.

11

9847669

SHAFT

2шт.

12

572820

BREATHER

1шт.

13

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

16шт.

14

87515569

SUPPORT

1шт.

15

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

2шт.

16

ZPX81158

ADHESIVE

1шт.

Apply Between Housing & Cover. Bead Must Be Continuous & Inside Bolt Pattern

1шт.

18

87520047

REDUCER FITTING

Plug

1шт.
