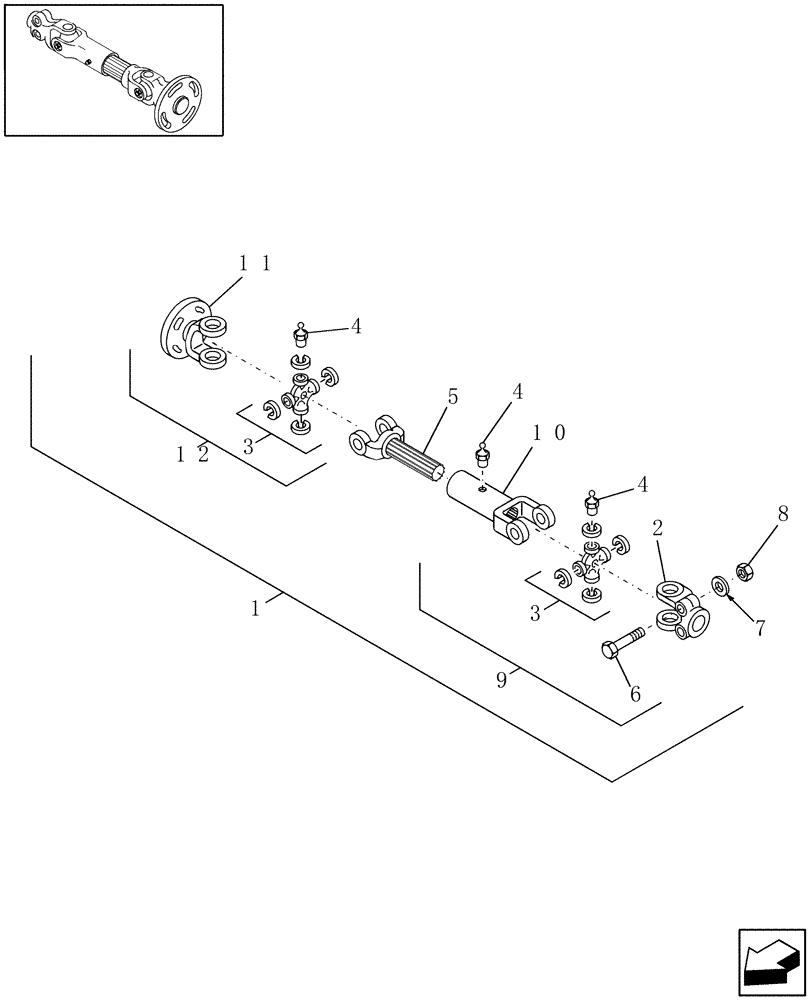

Запчасти Case IH RD132 (20.15.01) - CONDITIONER DRIVE SHAFTS (00) - COMPLETE MACHINE

1

87564986

PTO

Includes: 2, 3, 5, 9, 10, 11, & 14

2шт.

2

87543886

YOKE

Clamp

2шт.

3

87575195

U-JOINT SPIDER

Includes: Ref. 4

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

6шт.

5

87543882

YOKE

Male

2шт.

6

88009

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

9

87543861

PTO

Female Half, Includes: Ref. 2, 3 & 10

2шт.

10

87543880

YOKE

Slip, Includes: Ref. 4

2шт.

11

87543867

YOKE

Flange

2шт.

12

87543726

PTO

Male Half, Includes Ref. 3, 5 & 11

2шт.
