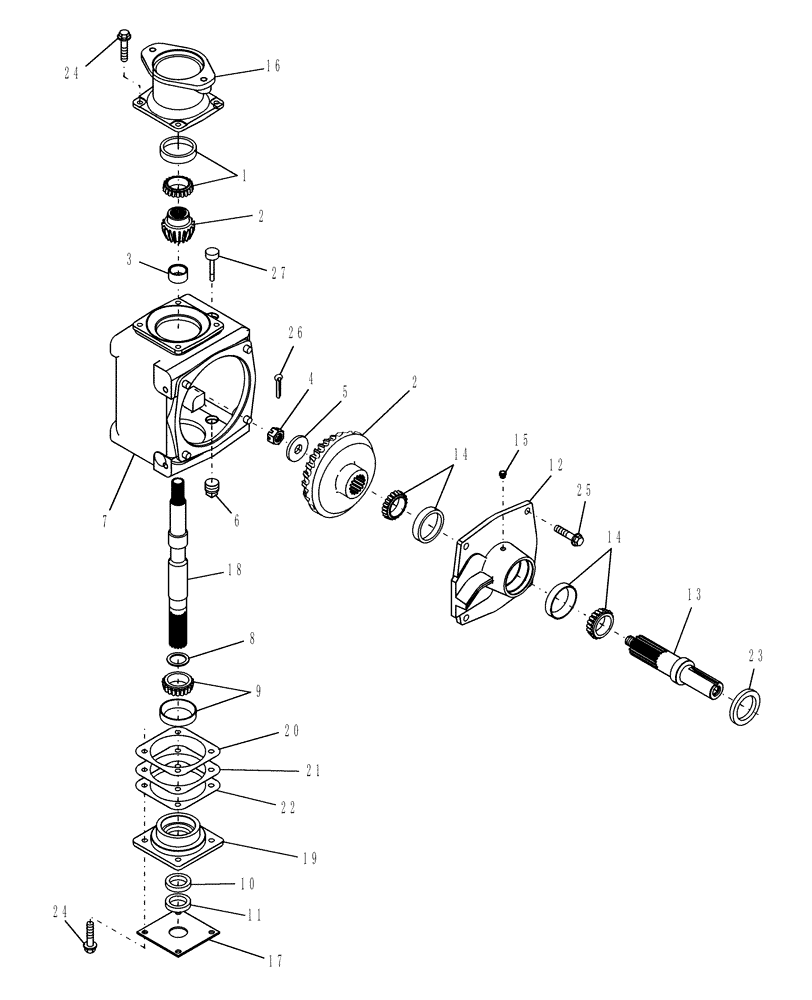

Запчасти Case IH RD132 (20.14.05) - GEARBOX, BELT DRIVE (00) - COMPLETE MACHINE

0

87380376

GEARBOX

Includes: Ref. 1 - 27

1шт.

0

87380376R

REMAN-GEARBOX

Reman Gearbox

1шт.

0

87380376C

CORE-GEARBOX

Return Number

1шт.

1

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

1шт.

2

87054843

GEAR SET

18 T & 54T

1шт.

3

87585164

SLEEVE

1шт.

4

88886

SLOTTED NUT,3/4"-16

1шт.

5

86516694

WASHER

3/4"

1шт.

6

80815

PLUG,Sq Hd, 3/4"-14

1шт.

7

86532398

GEARBOX

Case

1шт.

8

86000341

SNAP RING,#137. Ext

1шт.

9

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

1шт.

10

634036

OIL SEAL

1шт.

11

84138975

HUB

1шт.

12

87387503

CAP

1шт.

13

87380377

SHAFT

L = 17"

1шт.

14

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

15

572820

BREATHER

1шт.

16

86640567

CAP COVER

1шт.

17

87028086

SHIELD

PTO

1шт.

18

86532584

SHAFT

L = 16-3/8"

1шт.

19

87022171

HUB

Cap

1шт.

20

86501593

SHIM

Steel, .002"

1шт.

21

86501594

SHIM

Steel, .010"

1шт.

22

86501595

SHIM

Steel, .003"

1шт.

23

189602

SEAL,53.98mm ID x 76.38mm OD x 9.53mm Thk

3" ID

1шт.

24

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

25

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

26

80750

COTTER PIN,1/8" x 1 1/8"

1шт.

27

86564382

DIPSTICK

1шт.
