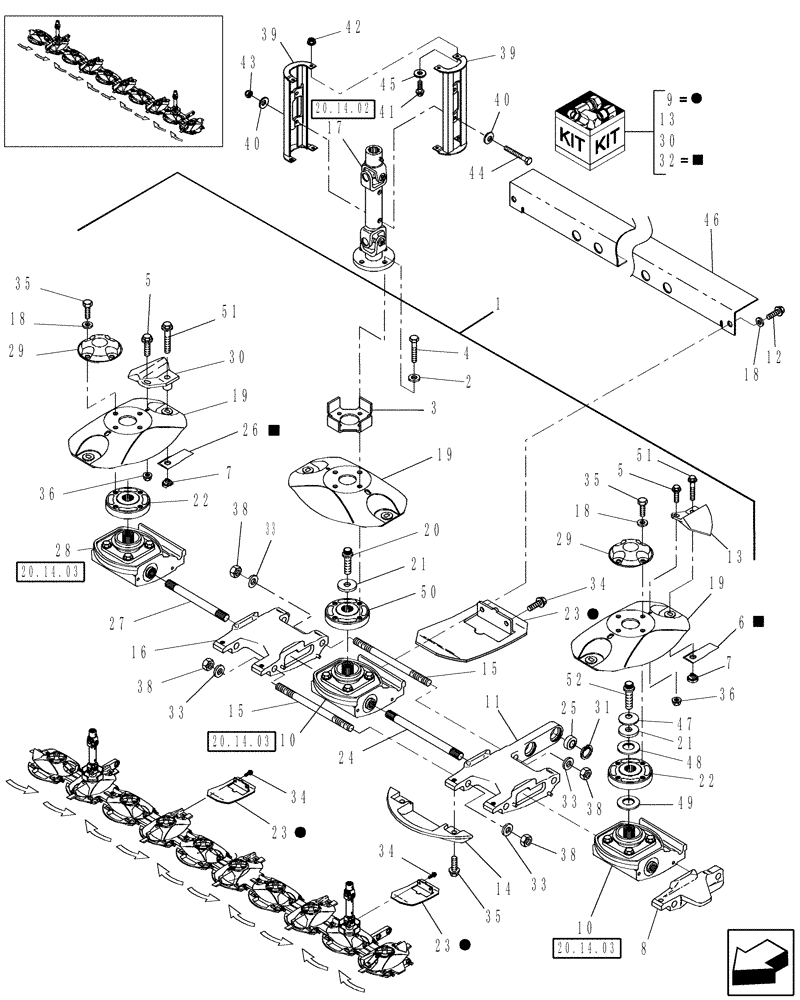

Запчасти Case IH RD132 (20.14.01) - CUTTERBAR, 10 DISC (00) - COMPLETE MACHINE

1

87674849

CUTTERBAR

Complete

1шт.

Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

3

86629689

DISC

2шт.

Modules 2 and 9.

1шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

5

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

20шт.

6

86621872

BLADE

CW, 14°, Standard Equipment

10шт.

Modules 1, 2, 4, 6 and 8.

1шт.

6

86532078

KNIFE

Straight (Also Called "V")

10шт.

6

87029587

BLADE

CW, Over Serrated, 14°

10шт.

6

9847683

BLADE,Knife CW

CW, 7°

10шт.

7

87725066

NUT

20шт.

8

86629691

ARM

LH

1шт.

8

86629690

ARM

RH

1шт.

Not Shown

1шт.

10

0C

ORDER COMPONENTS

Module, CW, See Figure 20.14.03

5шт.

11

87057898

ARM ASSY.

LH

1шт.

11

87057901

ARM ASSY.

RH

1шт.

Not Shown

1шт.

12

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

13

87528245

KIT

Lifter, CW, Includes: (2) Lifters, Hardware & Instructions

10шт.

Modules 1, 2, 4, 6 and 8.

1шт.

14

87047845

STONEGUARD

10шт.

15

86501934

THREADED ROD

20шт.

16

87044107

SPACER

7шт.

17

87056089

PTO SHAFT

LH

1шт.

17

87388046

PTO SHAFT

RH

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

32шт.

19

87646406

DISC

10шт.

20

87584169

BOLT,5/8" - 11 x 1-1/2"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 1/2", Locking Patch

2шт.

Modules 2 and 9.

1шт.

Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.

1шт.

21

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

10шт.

Included in kit 87642200.

1шт.

22

0C

ORDER COMPONENTS

Shock Hub, See Figure 20.14.03[2]

8шт.

23

87047426

SKID/SHOE

Included in Ref 1

10шт.

23

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

10шт.

23

87622885

SHOE

Skid, High Stub

10шт.

24

86519039

SHAFT

268mm

2шт.

25

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

26

86621873

BLADE

CCW, 14°, Standard Equipment

10шт.

26

87029588

BLADE

CCW, Over Serrated, 14°

10шт.

26

9847684

BLADE,Knife CCW

CCW, 7°

10шт.

27

86519042

SHAFT

248mm

7шт.

27

9861804DS

GREASE

14oz. Tube

1шт.

28

0C

ORDER COMPONENTS

Module, CCW, See Figure 20.14.03

5шт.

29

87581143

CAP

See Fig. 20.14.03[1]

8шт.

30

87528249

KIT

Lifter, CCW, Includes: (2) Lifters, Hardware & Instructions

5шт.

Modules 3, 5, 7, 9 and 10.

1шт.

31

271429

SNAP RING,1.625", Int, #162

4шт.

32

86624751

KNIFE SET

Includes (10) Ref. 6, 14° CW Blades, & (10) Ref. 26, 14° CCW Blades

1шт.

32

86624752

KNIFE SET

Includes (16) Ref. 6, 14° CW Blades, & (16) Ref. 26, 14° CCW Blades

1шт.

32

87037027

SET OF BLADES

Includes (16) Ref. 6, 14° CW OS Blades, & (16) Ref. 26, 14° CCW OS Blades

1шт.

33

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

34

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

35

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

52шт.

36

86544265

FLANGE NUT,Flg, 1/2"-13, G8

20шт.

38

86518194

NUT,3/4"-10, G8

40шт.

39

87061791

DRUM

LH, Short

2шт.

39

87390432

DRUM

RH, Long

2шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

41

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

42

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

43

88902

NUT,3/8"-16

4шт.

44

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

4шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

46

87609027

CHANNEL

1шт.

47

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

8шт.

Included in kit 87642200.

1шт.

48

87376405

LOCK WASHER,28.68mm ID x 56mm OD x 6.35mm Thk

8шт.

49

87376403

SEAL

8шт.

Included in kit 87642200.

1шт.

50

87560472

HUB ASSY.

Standard Hub, 20.14.03[1]

2шт.

Modules 2 and 9.

1шт.

51

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

20шт.

52

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1-3/4", Locking Patch

8шт.

Included in kit 87642200.

1шт.
