(18.01[01]) - KIT, HYDRAULIC TOP LINK

Запчасти Case IH DCX91 (18.01[01]) - KIT, HYDRAULIC TOP LINK (18) - ACCESSORIES

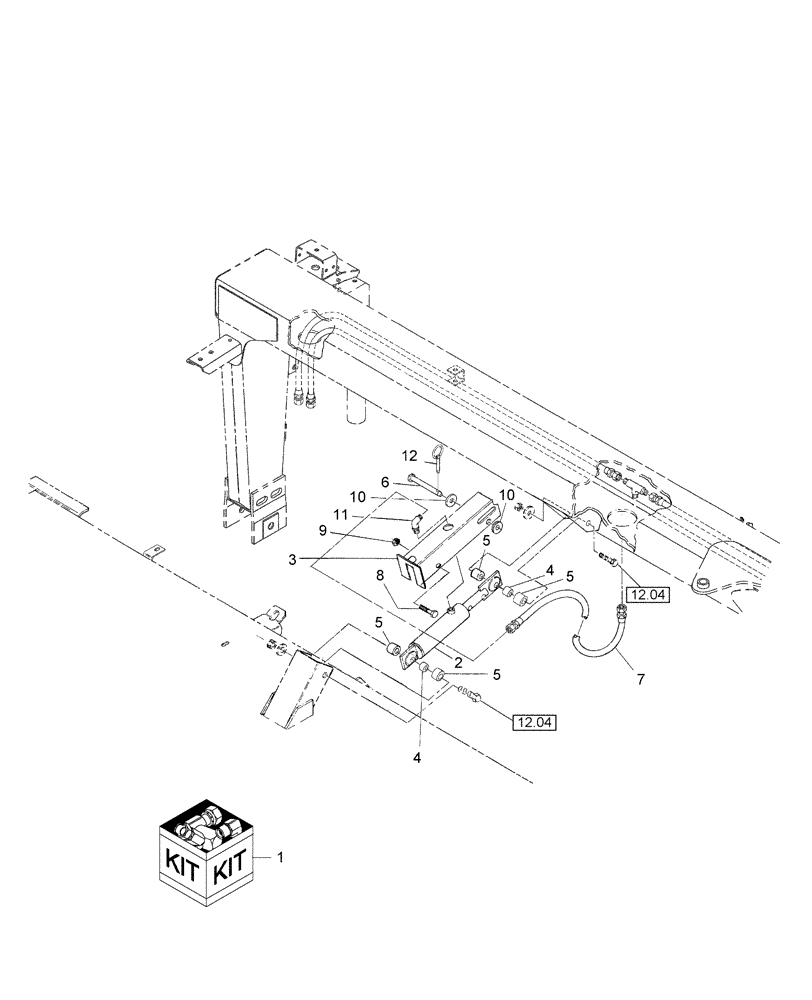

Схема запчастей Case IH DCX91 - (18.01[01]) - KIT, HYDRAULIC TOP LINK (18) - ACCESSORIES
8
4
12
3
5
11
10
9
10
2
4
6
7
5
5
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Kit, Hydraulic Top Link; Includes: Ref.s 2 Thru 12

1шт.

2

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Refer To Component Breakdown, Fig. 07.04

1шт.

87394809R

REMAN-HYD CYLINDER

DCX91 (2/05-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

3

86627885

CHAMBER

1шт.

4

87033961

BUSHING

2шт.

5

86599380

SPACER

4шт.

6

86510381

PIN

1шт.

7

176085

FLEXIBLE HOSE,9.53mm ID x 571.5mm L, SAE 100R1

3/8" ID x 22-1/2" L

1шт.

8

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

9

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

10

495-11081

WASHER,3/4", SAE

2шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4"

1шт.
