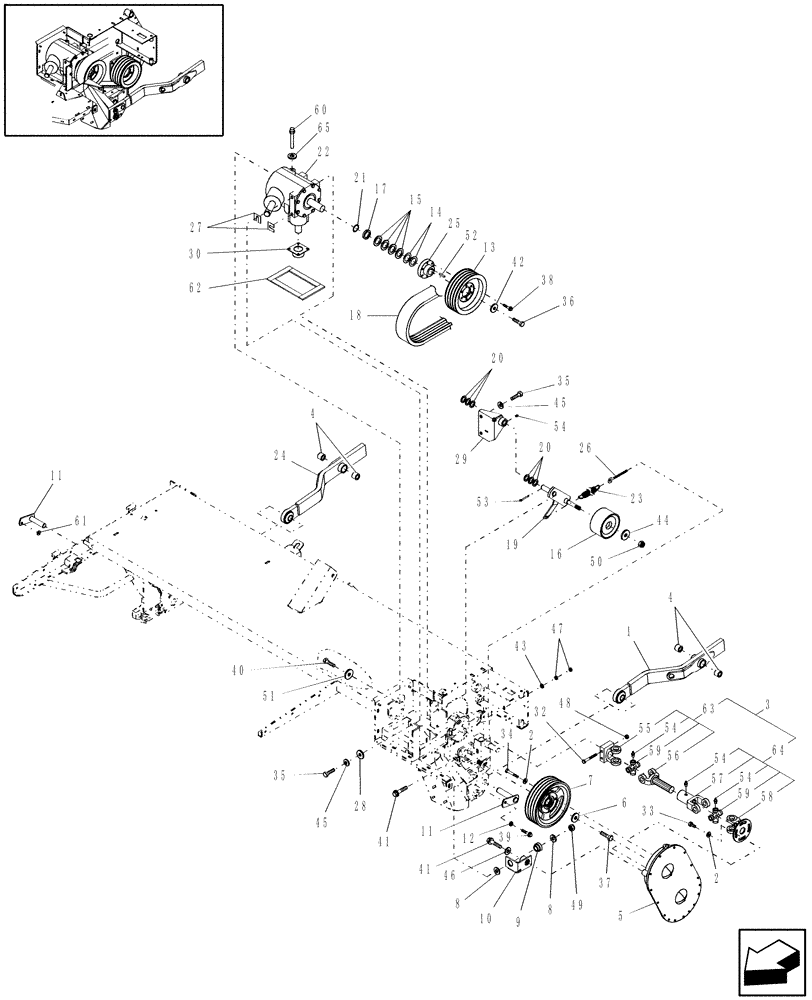

Запчасти Case IH DCX91 (15.03) - HEADER DRIVE (15) - CROP CONDITIONING

1

86607957

LIFT ARM

LH

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

3

86511008

DRIVE SHAFT

1шт.

4

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

4шт.

5

86602361

GEARBOX

Conditioner; For Component Breakdown, Refer To Fig. 03.02

1шт.

5

86602361R

REMAN-TRANSMISSION

Reman Gearbox

1шт.

5

86602361C

CORE-TRANSMISSION

Return Number, Gearbox, Conditioner, N.A. Only

1шт.

6

86516694

WASHER

1шт.

7

86634082

SHEAVE

1шт.

8

234567

WASHER

2шт.

9

173893

MOUNTING PARTS

1шт.

10

86634083

BRACKET

1шт.

11

86506026

PIN,28.57mm OD x 140mm L

2шт.

12

167381

SPACER

2шт.

13

86633564

PULLEY

247.7mm OD

1шт.

14

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

2/ARшт.

15

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4/ARшт.

16

86632727

IDLER

1шт.

17

86510186

SPACER

1шт.

18

87030923

V-BELT,80.50" L, 4 Ribs

Banded, 4HB

1шт.

19

86634084

PIVOTING ARM

1шт.

20

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

6/ARшт.

21

626286

SNAP RING

Ext, 1.50"

1шт.

22

87025403

GEARBOX ASSY

Bevel, 540 rpm

1шт.

22

87025403R

REMAN-GEARBOX

Reman Gearbox, DCX91 2/05

1шт.

22

87025403C

CORE-GEARBOX

Return Number

1шт.

23

87054556

TENSION SPRING

1шт.

24

87040686

LIFT ARM

RH

1шт.

25

87033740

HUB ASSY.

1шт.

26

631201

EYEBOLT

3/8"-16 x 5-1/2"

1шт.

27

66271

SHIM,.036" Thk

2/ARшт.

28

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

1-3/8" OD

2шт.

29

87030339

BRACKET

1шт.

30

87035616

SHIELD

1шт.

31

Reference Not Used

1шт.

32

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

34

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

35

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

36

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

37

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

38

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

39

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

40

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

41

86521622

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

2шт.

42

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

1шт.

43

495-21044

WASHER,3/8"

1шт.

44

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

45

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

46

495-21069

WASHER,5/8"

1шт.

47

425-106

NUT,3/8"-16, Cl 5

2шт.

48

232-4146

NUT,3/8"-16, GC

2шт.

49

232-41410

LOCK NUT,5/8"-11, GC

1шт.

50

232-41412

LOCK NUT,3/4"-10, GC

1шт.

51

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

52

87495

KEY,0.31" x 2.50" L

5/16" Sq x 2-1/2"

1шт.

53

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

54

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

55

86520865

YOKE

1шт.

56

86520867

YOKE

& Shaft

1шт.

57

86520868

YOKE

Telescoping

1шт.

58

87024320

YOKE

& Plate

1шт.

59

136908

SPIDER

Kit

2шт.

60

87051580

DIPSTICK

1шт.

61

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1шт.

62

87058748

SEAL

1шт.

63

86520870

SHAFT

1шт.

64

86520871

SHAFT

1шт.

65

87054108

WASHER,17.16mm ID x 22mm OD x 1mm Thk

1шт.
