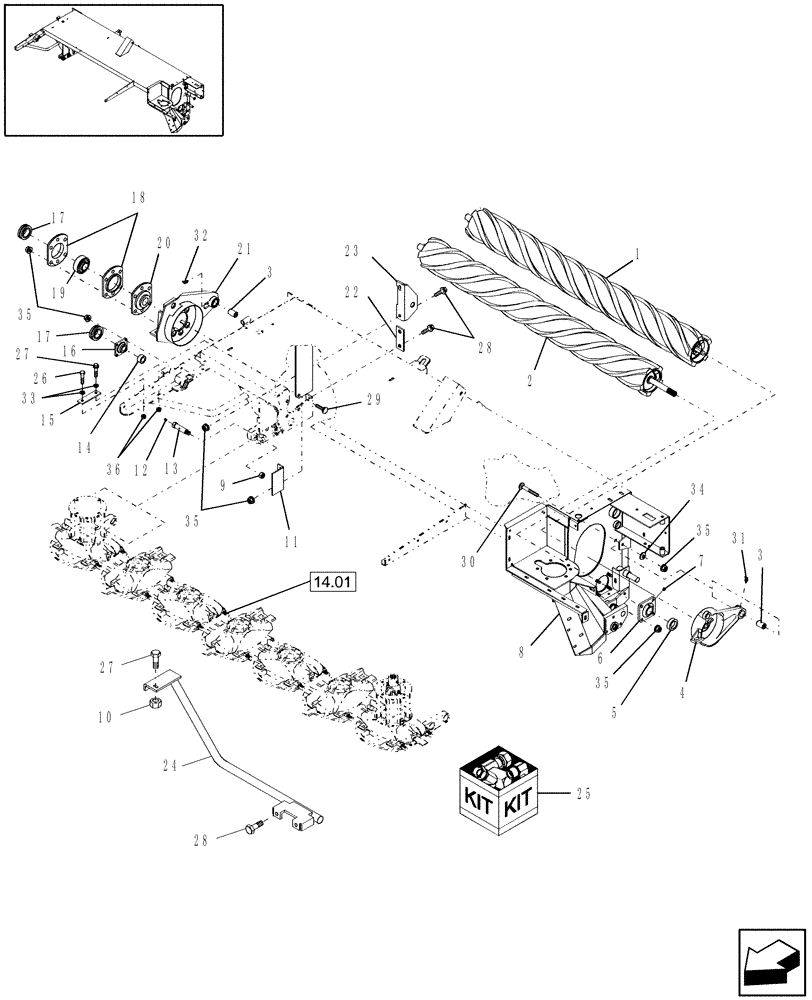

Запчасти Case IH DCX91 (15.01) - HEADER & CONDITIONING ROLLS (15) - CROP CONDITIONING

1

87013397

FEED ROLLER

Upper, Rubber

1шт.

2

87013398

FEED ROLLER

Lower, Rubber

1шт.

3

9849929

SPACER

2шт.

4

87042108

BEARING ASSY

1шт.

5

45631

COLLAR

1шт.

6

86603185

BEARING ASSY

1шт.

7

788938

PLUG

1/4"-28

1шт.

8

87040012

FRAME

Header

1шт.

For Units Built Prior To HCA048080, Also Order 87349309

1шт.

9

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

10

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

11

86631049

SHIELD

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

13

86571960

BOLT

Cutterbar Mounting

4шт.

13

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

14

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

15

849495

RUBBER PAD

2шт.

16

86573043

BEARING ASSY

1шт.

17

45393

COLLAR

2шт.

18

86629969

FLANGE

2шт.

19

84258416

BALL BEARING,34.92mm ID x 77.5mm OD x 25mm W

1шт.

20

86633047

SHROUD

1шт.

21

87055307

ARM

1шт.

22

87029857

LOCKING TAB

1шт.

23

87026978

PIN

1шт.

24

NSS

NOT SOLD SEPARAT

Guide, RH

1шт.

25

86603195

KIT

Viney Crop Guide; Includes: 10, 12, 24, 27, 28, & Instructions

1шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

27

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

28

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

29

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

30

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

31

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

32

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

33

495-21038

WASHER,5/16"

4шт.

34

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

35

425-288

FLANGE NUT,Flg, 1/2"-13, G5

18шт.

36

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.
