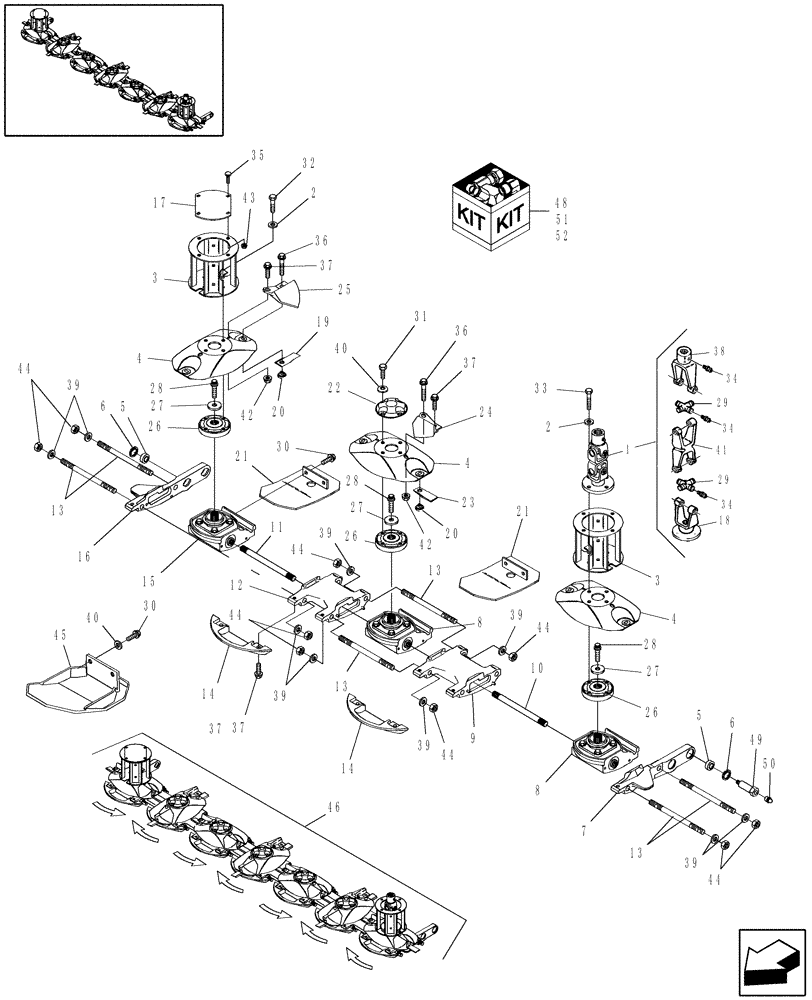

Запчасти Case IH DCX91 (14.01[01]) - CUTTERBAR (14) - CROP CUTTING

1

87027235

PTO

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

3

87040772

DRUM

2шт.

4

87040895

DISC

7шт.

4

87528245

KIT

CW Crop Lifter

1шт.

4

87528249

KIT

CCW Crop Lifter

1шт.

5

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

6

100-21162

SNAP RING,1.625", Int, #162

4шт.

7

86640565

ARM

LH

1шт.

8

0C

ORDER COMPONENTS

Module, Control, CW; Refer To Fig. 14.02

4шт.

9

86506070

SPACER

1шт.

10

86519039

SHAFT

L = 268mm

1шт.

11

86519042

SHAFT

L = 248mm

5шт.

12

86506032

SPACER

5шт.

13

86501934

THREADED ROD

14шт.

14

86565383

GUARD

Rock, See Figure Note

7шт.

Prior To MY 2006

1шт.

14

87047845

STONEGUARD

See Figure Note

7шт.

From MY 2006

1шт.

15

0C

ORDER COMPONENTS

Module, Control, CCW; Refer To Fig. 14.02

3шт.

16

86631408

ARM

RH

1шт.

17

86631895

COVER

1шт.

18

86585339

YOKE

1шт.

19

86621873

BLADE

CCW, 14° Twist, Standard Equipment

6шт.

19

9847684

BLADE,Knife CCW

CCW, 7° Twist

6шт.

19

87029588

BLADE

CCW, 14° Twist, Over-serrated

6шт.

19

86532078

KNIFE

V

6шт.

20

87725066

NUT

Knife

14шт.

20

87725066

NUT

Knife, Start Year: 01-APR-06

14шт.

21

86572263

SKID/SHOE

[Welded Shoe], See Figure Note

7шт.

Prior To MY 2006

1шт.

21

87047426

SKID/SHOE

[Formed Shoe], See Figure Note

7шт.

From MY 2006

1шт.

21

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

7шт.

22

9828165

CAP

See Fig. 14.03

6шт.

23

86621872

BLADE

CW - 14° Twist Standard Equipment

8шт.

23

9847683

BLADE,Knife CW

CW, 7° Twist

8шт.

23

87029587

BLADE

CW - 14° Twist, Over-serrated

8шт.

23

86532078

KNIFE

V

8шт.

24

87040840

KIT

Lifter, CW; Includes: Lifters (2), Ref. 20 (2), Ref. 36 (2), Ref. 37 (2), & Ref. 45 (2)

4шт.

25

87040841

KIT

Lifter, CCW; Includes: Lifters (2), Ref. 20 (2), Ref. 36 (2), Ref. 37 (2), & Ref. 45 (2)

3шт.

26

86629692

HUB

7шт.

27

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

7шт.

28

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

7шт.

29

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

2шт.

30

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

14/ARшт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

35

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

36

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

14шт.

37

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

28шт.

38

87042223

YOKE

UNIVERSAL JOINT YOKE

1шт.

39

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

28шт.

40

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

20/ARшт.

41

87042224

YOKE

UNIVERSAL JOINT YOKE

1шт.

42

86544265

FLANGE NUT,Flg, 1/2"-13, G8

14шт.

43

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

44

429-1012

NUT,3/4"-10, G8

28шт.

45

86630488

SHOE

High Stub

7шт.

45

715289026

DIA KIT, HARVESTER

High Stubble

1шт.

46

87648074

BAR

Cutterbar

1шт.

Does Not Include Ref. 1 or 3.

1шт.

48

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 23 & (10) 14° CCW Blades, Ref 19

1шт.

48

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 23 & (16) 14° CCW Blades, Ref 19

1шт.

49

86571960

BOLT

Cutterbar Mounting

4шт.

49

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

50

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

51

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

52

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.
