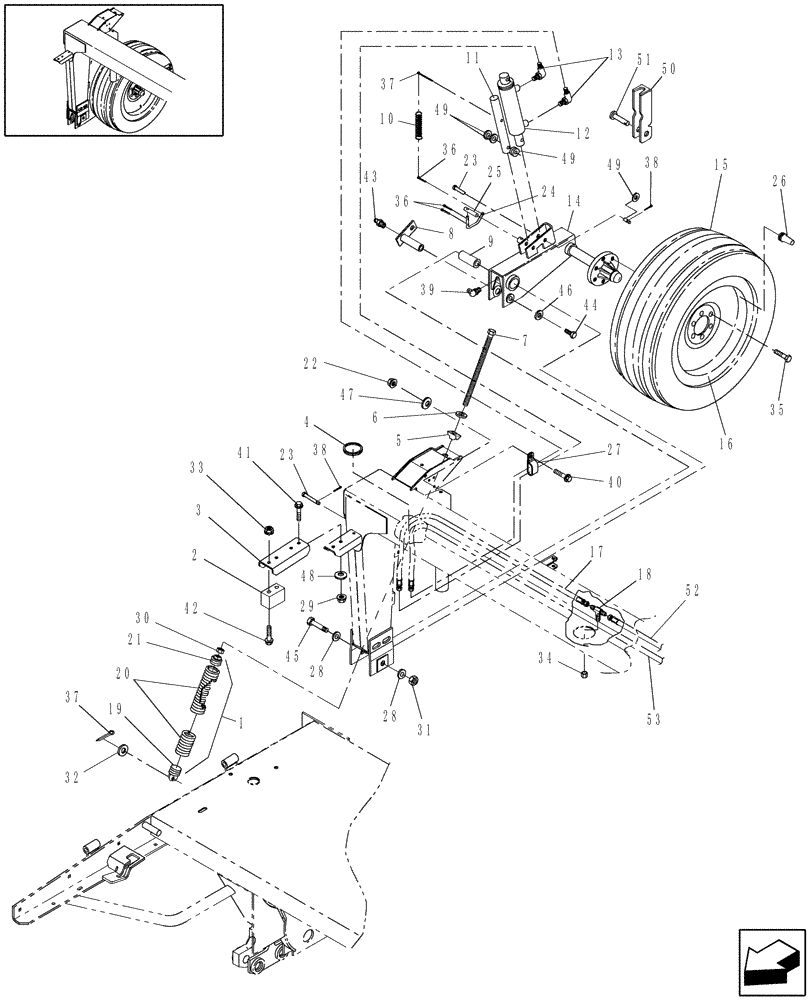

Запчасти Case IH DCX91 (12.05) - TRAILFRAME, RH (12) - MAIN FRAME

1

9840708

SPRING

1шт.

2

86519305

BUMPER

1шт.

3

86549090

CHANNEL

1шт.

4

86517966

EDGE,14mm W x 17mm H x 76200mm L

Cut To Fit

1шт.

5

694420

PIVOT

1шт.

6

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

1шт.

7

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

1шт.

8

86607244

PIN

1шт.

9

86526469

SPACER

1шт.

10

86539129

SPRING

1шт.

11

86632240

ROD

1шт.

12

87018066

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

0C

ORDER COMPONENTS

Spindle, Right Hand, Refer to Fig. 11.01

1шт.

15

PL

PROCURE LOCALLY

Tire, 9.5L - 14 6 Ply

1шт.

16

87047837

WHEEL

1шт.

17

86515766

FLEXIBLE HOSE,0.38" ID x 91.00", SAE 100R1

Lower Cylinder Connection

1шт.

18

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

19

9840709

SPRING NUT

1шт.

20

226527

SPRING

1шт.

21

247383

SPRING NUT

1шт.

22

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

23

86529064

PIN

1шт.

24

86631667

ROD

1шт.

24

87618910

LATCH

, Start Serial: Y7B663015

1шт.

25

86546360

PIN

1шт.

26

196033

VALVE STEM

Tubeless Tire

1шт.

27

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

28

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

29

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

31

425-1016

NUT,1"-8, G5

1шт.

32

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

1шт.

33

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

34

574342

CAP,9/16" - 18 JIC

1шт.

35

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

6шт.

36

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

37

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

38

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

39

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

40

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

42

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

44

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

45

426-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

46

86516694

WASHER

1шт.

47

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

48

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

49

495-11066

WASHER,5/8", SAE

7шт.

50

86718699

, Start Serial: Y7B663015

1шт.

51

87061043

PIN

, Start Serial: Y7B663015

1шт.

52

87053825

HOSE,0.38" ID x 260.00", SAE 100R1

1шт.

53

86515767

HYDRAULIC HOSE,0.38" ID x 166.00", SAE 100R1

Upper Cylinder Connection

1шт.
