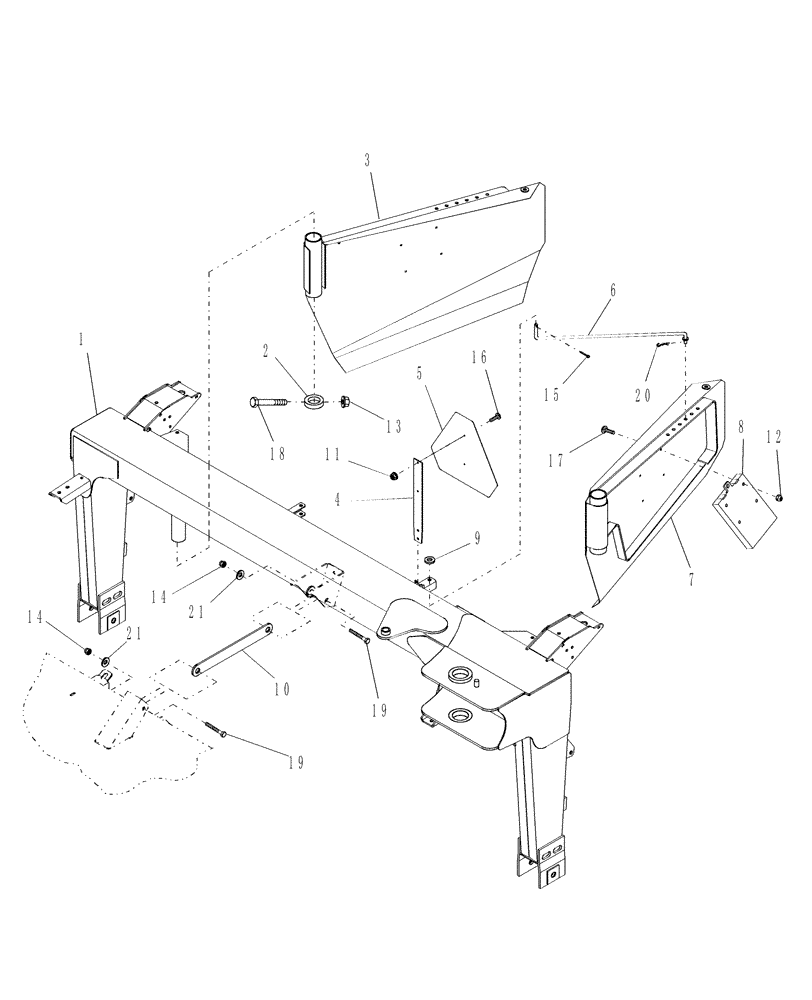

Запчасти Case IH DCX91 (12.04[01.1]) - TRAIL FRAME, CENTER (12) - MAIN FRAME

1

87040010

FRAME

1шт.

2

86545693

COLLAR

2шт.

3

86627018

SHIELD

1шт.

4

86535159

ARM

1шт.

5

86547710

EMBLEM

KIT SMV

1шт.

6

86506511

ADJUSTMENT ROD

2шт.

7

86627020

SHIELD

1шт.

8

86613674

CASE

1шт.

9

495-11053

WASHER,1/2", SAE

2шт.

10

NS

NOT SERVICED

Strap, Shipping

1шт.

11

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

12

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

13

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

14

232-41412

LOCK NUT,3/4"-10, GC

2шт.

15

394818

COTTER PIN,M5 x 25

2шт.

16

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

17

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

18

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

19

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

20

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

21

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.
