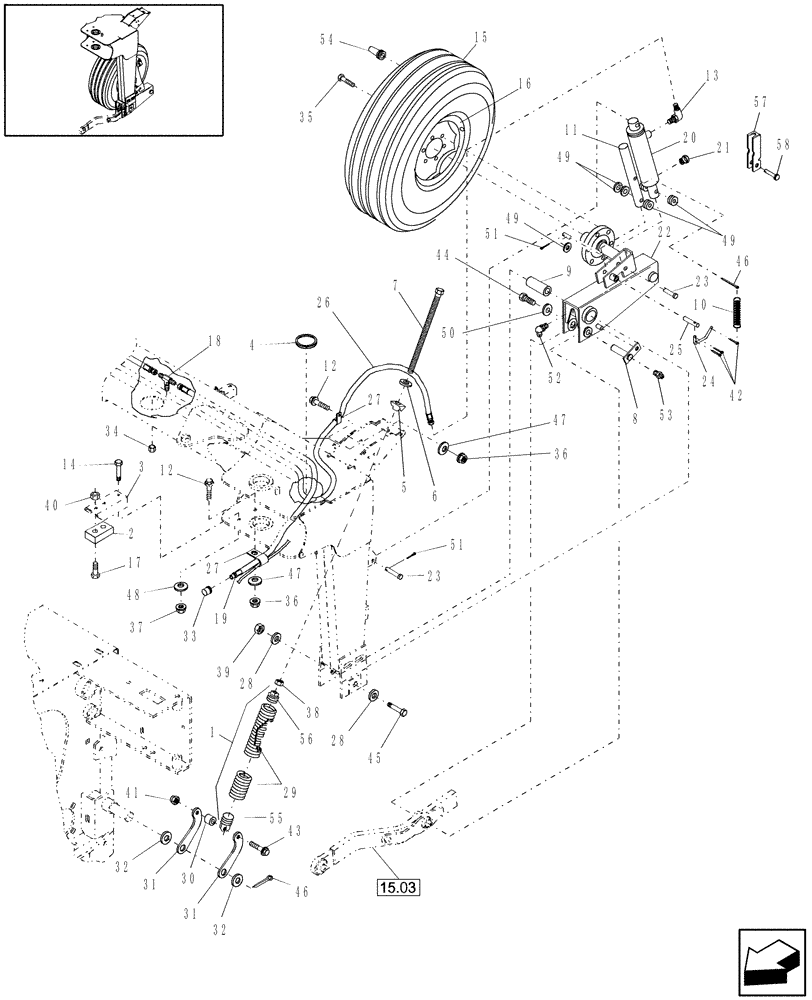

Запчасти Case IH DCX91 (12.03) - TRAILFRAME, LH (12) - MAIN FRAME

1

9840706

SPRING

1шт.

2

86519305

BUMPER

1шт.

3

86549090

CHANNEL

1шт.

4

86517966

EDGE,14mm W x 17mm H x 76200mm L

Cut To Fit

1шт.

5

694420

PIVOT

1шт.

6

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

1шт.

7

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

Spring Adjusting

1шт.

8

86607244

PIN

1шт.

9

86526469

SPACER

1шт.

10

86539129

SPRING

1шт.

11

86632240

ROD

1шт.

12

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

15

PL

PROCURE LOCALLY

Tire, 9.5L - 14 6 Ply

1шт.

16

87047837

WHEEL

1шт.

17

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

218-593

TEE,9/16"-18, 37 Degree

1шт.

19

87053825

HOSE,0.38" ID x 260.00", SAE 100R1

1шт.

20

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

Refer to Component Breakdown, Fig. 07.03

1шт.

20

87018039R

REMAN-HYD CYLINDER

DCX91 DISC MOWER CONDITIONER, LH (2/05-)

1шт.

20

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

21

854071

BREATHER

1шт.

22

0C

ORDER COMPONENTS

Spindle, Left Hand, Refer to Fig. 11.01

1шт.

23

86529064

PIN

1шт.

24

86631667

ROD

1шт.

24

87618910

LATCH

, Start Serial: Y7B663015

1шт.

25

86546360

PIN

1шт.

26

86515767

HYDRAULIC HOSE,0.38" ID x 166.00", SAE 100R1

1шт.

27

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

28

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

29

768968

SPRING

1шт.

30

36698

SPACER

1шт.

31

86629713

CONNECTING LINK

2шт.

32

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

4/ARшт.

33

116070

CAP

1шт.

34

574342

CAP,9/16" - 18 JIC

1шт.

35

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

6шт.

36

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

37

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

38

425-1010

NUT,5/8"-11, G5

1шт.

39

425-1016

NUT,1"-8, G5

1шт.

40

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

41

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

42

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

43

86521622

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

1шт.

44

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

45

426-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

46

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

47

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

48

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

49

495-11066

WASHER,5/8", SAE

7шт.

50

86516694

WASHER

1шт.

51

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

52

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

54

387897R91

VALVE STEM

Tubeless Tire

1шт.

55

9840707

SPRING NUT

1шт.

56

768970

SPRING NUT

1шт.

57

87618699

STOP

, Start Serial: Y7B663015

1шт.

58

87061043

PIN

, Start Serial: Y7B663015

1шт.
