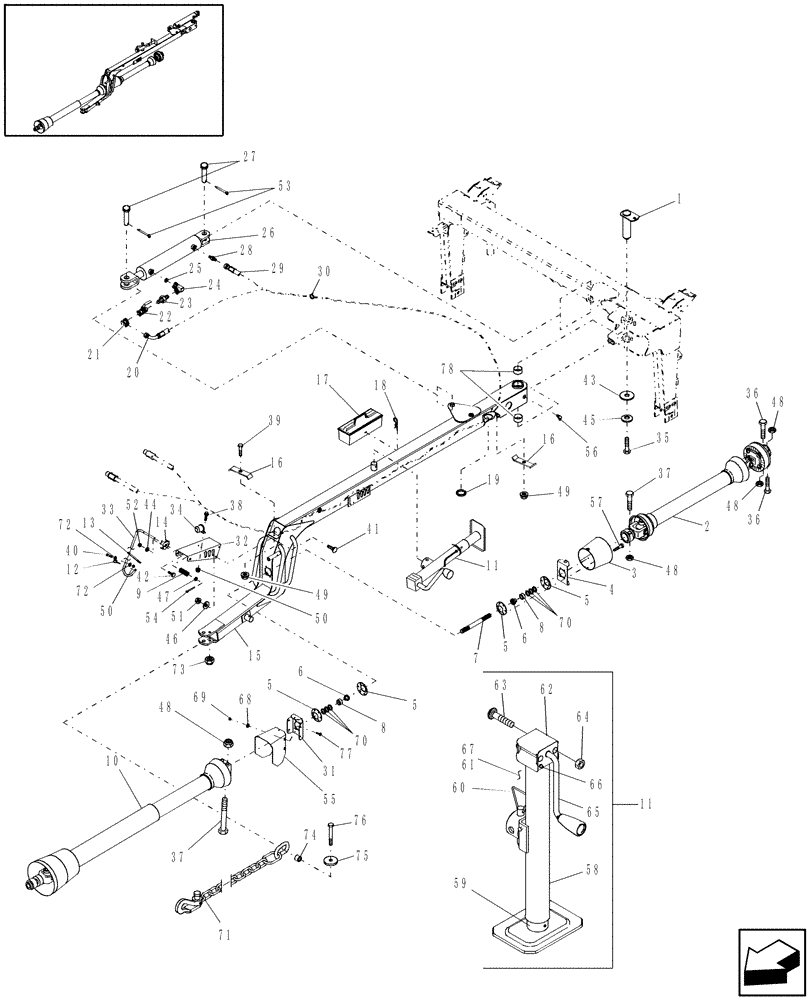

Запчасти Case IH DCX91 (12.01) - TONGUE (12) - MAIN FRAME

1

86630513

PIN,69.85mm OD x 260mm L

1шт.

2

0C

ORDER COMPONENTS

Secondary PTO; Refer To Component Breakdown, Fig. 01.03

1шт.

3

86549399

SHIELD

2шт.

4

NS

NOT SERVICED

Bracket

2шт.

5

138820

FLANGED BEARING

4шт.

6

87029741

BEARING,34.92mm ID x 72mm OD x 19mm W

2шт.

7

87028923

SHAFT

1шт.

8

87046877

SPACER

2шт.

9

47603

SPRING

1шт.

10

0C

ORDER COMPONENTS

Primary PTO; Refer To Component Breakdown, Fig. 01.01 & 01.02

1шт.

11

86617866

JACK

1шт.

12

270184

LINCH PIN,6.35mm OD

1шт.

13

87041970

LATCH

1шт.

14

87040051

LATCH

1шт.

15

87589853

TONGUE

Tongue; Includes: Decals; See Fig. 08.03

1шт.

16

86571694

CLAMP

2шт.

17

5135060

TOOL BOX

1шт.

18

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

19

86517966

EDGE,14mm W x 17mm H x 76200mm L

1 Ft. Length, Serial Range: Cut-Fit

1шт.

20

87053826

HOSE ASSY.

L = 215"

1шт.

21

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

22

87041786

HYDRAULIC VALVE

1шт.

23

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

3/8" NPTF

1шт.

24

80271642

ELBOW

9/16"-3/8", 90°

1шт.

25

701811

ORIFICE

1шт.

26

87018072

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 292.1mm Stroke

Refer To Component Breakdown, Fig. 07.01

1шт.

27

514112

PIN

1" x 2-3/4"

2шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

29

87053825

HOSE,0.38" ID x 260.00", SAE 100R1

1шт.

30

249730

SECURING STRAP,8" L

1шт.

31

NS

NOT SERVICED

Bracket

1шт.

32

87037703

CHANNEL

1шт.

33

87037700

SUPPORT

1шт.

34

9611467

HOLDER

1шт.

35

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

36

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

37

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

38

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

39

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

40

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

41

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

42

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

43

86502976

WASHER

78" ID x 3.75" OD x .25"

1шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

45

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

46

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

47

495-11066

WASHER,5/8", SAE

1шт.

48

232-4148

NUT,1/2"-13, GC

3шт.

49

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

50

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.

51

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

52

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

53

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

54

394818

COTTER PIN,M5 x 25

1шт.

55

87039765

SHIELD

Rubber

1шт.

56

219-32

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1шт.

57

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

58

NSS

NOT SOLD SEPARAT

Outer Tube

1шт.

59

NSS

NOT SOLD SEPARAT

Inner Tube

1шт.

60

86590810

KIT

Jack, Chain and Pin

1шт.

61

86590811

KIT

Gear

1шт.

62

86590816

COVER

1шт.

63

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

64

425-104

NUT,1/4"-20, Cl 5

1шт.

65

86590812

KIT

Crank

1шт.

66

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

67

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

68

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

5шт.

69

231-5345

FLANGE NUT,Flg, 5/16"-18

5шт.

70

58630

WASHER,.0299" Thk

6/ARшт.

71

850116

CHAIN

1шт.

72

495-21031

WASHER,1/4"

2шт.

73

232-41410

LOCK NUT,5/8"-11, GC

1шт.

74

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

75

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

76

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

77

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

78

86511199

BUSHING,69.88mm ID x 76.35mm OD x 37.3mm L

2шт.
