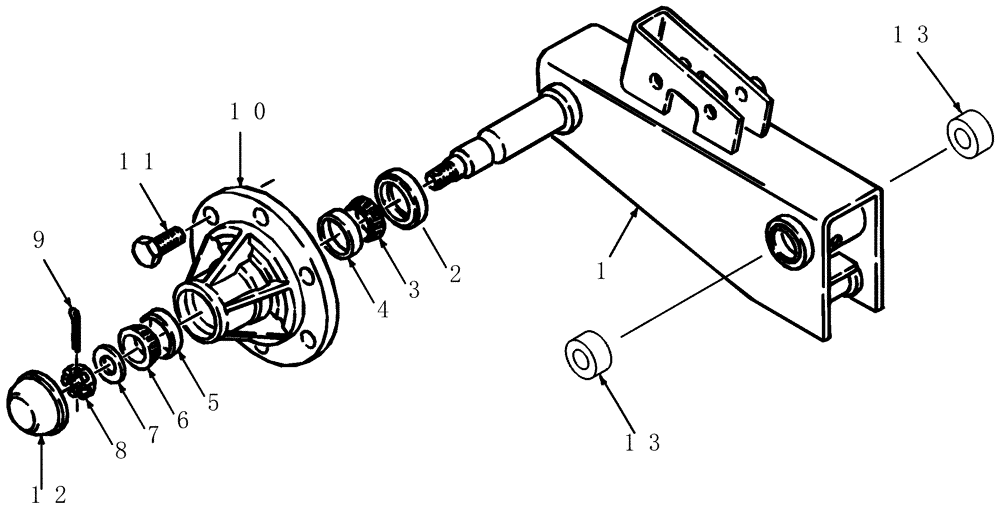

Запчасти Case IH DCX91 (11.01) - SPINDLE (11) - WHEELS

1

86631392

ARM ASSY.

Wheel, LH, Includes Ref. 13

1шт.

1

87616846

ARM ASSY.

Wheel, LH, Includes Ref. 13, Start Serial: Y7B663015

1шт.

1

86631395

ARM ASSY.

Wheel, RH, Includes Ref. 13

1шт.

1

87616929

ARM ASSY.

Wheel, RH, Includes Ref. 13, Start Serial: Y7B663015

1шт.

2

663004R91

OIL SEAL

2шт.

3

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

4

36723

BEARING CUP,59.16mm OD x 11.81mm W

2шт.

5

574810

BEARING CUP,45.26mm OD x 12.06mm W

2шт.

6

574809

BEARING CONE,21.98mm ID x 16.64mm W

2шт.

7

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

3/4" x .135" Thk.

2шт.

8

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

9

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

10

86631051

HUB

Wheel

2шт.

11

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

12

249130

HUB CAP

2шт.

13

788926

DRIVE BUSHING,50.75mm ID x 54mm OD x 47.8mm L

4шт.

14

87298555

KIT

Includes: 2 - 9 & 12

2шт.

Wheel Bearing Kit / Ship Direct Option

1шт.
