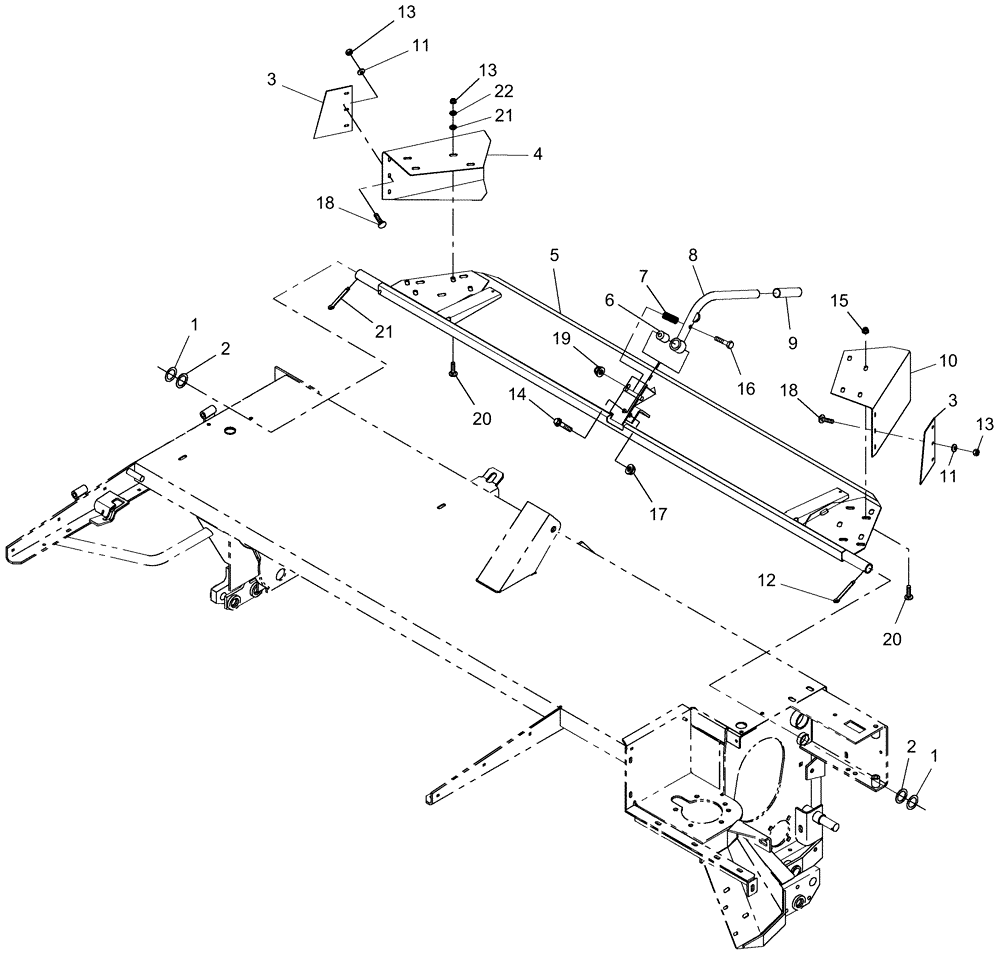

Запчасти Case IH DCX91 (08.05) - SWATHGATE (08) - SHEET METAL

1

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

2/ARшт.

2

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

2/ARшт.

3

86506232

DEFLECTOR

2шт.

4

87040575

DEFLECTOR

RH

1шт.

5

87030905

GATE ASSY

1шт.

6

285505

SPACER

1шт.

7

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

8

86639636

HANDLE

1шт.

9

602734

HANDLE GRIP

1шт.

10

87040572

DEFLECTOR

LH

1шт.

11

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

13

9626558

FLANGE NUT,Flg, 1/4"-20

6шт.

14

86521618

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

15

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

16

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

17

425-288

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

18

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

6шт.

19

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

20

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

21

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.
