Запчасти Case IH DCX91 (07.04[01]) - CYLINDER, HYDRAULIC, TILT (07) - HYDRAULICS

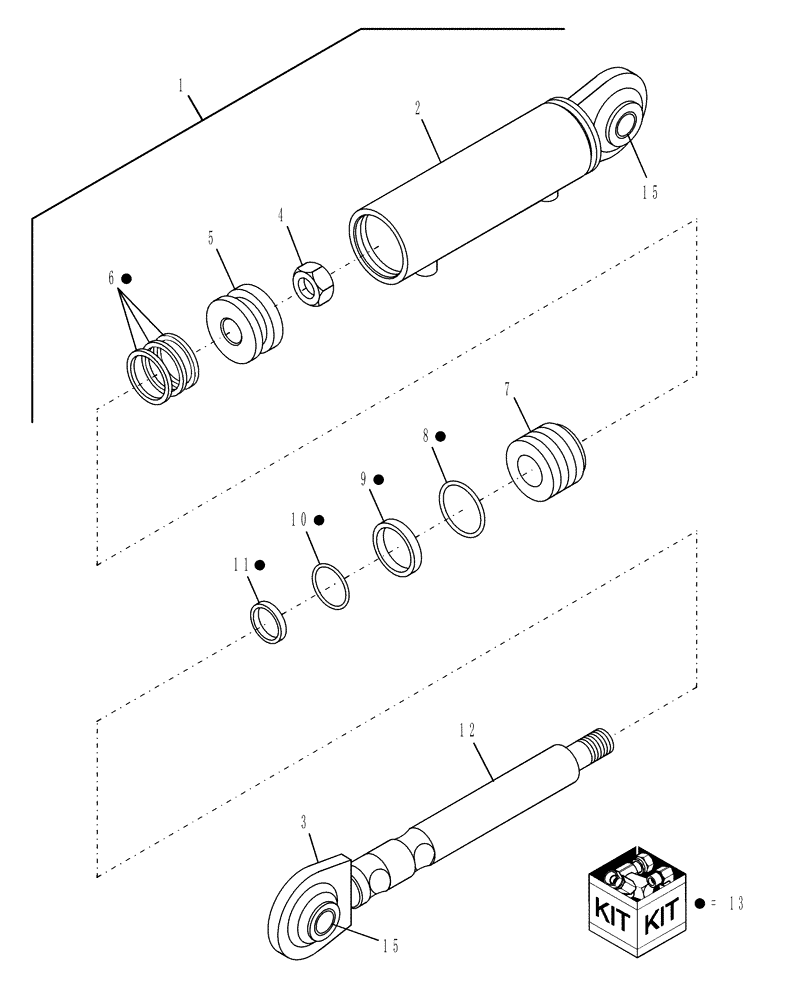

Схема запчастей Case IH DCX91 - (07.04[01]) - CYLINDER, HYDRAULIC, TILT (07) - HYDRAULICS
4
10
2
6
8
15
3
11
9
7
5
1
12
15

Артикул

Название

Примечание

Количество

1

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt

1шт.

87394809R

REMAN-HYD CYLINDER

DCX91 (2/05-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Monarch cylinders are stamped with a date code that starts with the letter "M".

1шт.

2

NS

NOT SERVICED

Separately

1шт.

3

87025738

PISTON ROD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87025737

PISTON

1шт.

6

86553483

SEAL

3 Piece, Piston

1шт.

7

87025720

HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

11

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

12

87026834

ROD

1шт.

13

87025441

SEAL KIT

Kit

1шт.

14

854071

BREATHER

1шт.

Not Shown

1шт.

15

87580646

BUSHING,19.05mm ID x 34.92mm OD x 34.92mm L

Bushing, Spring

2шт.

Included W/Those Cylinders Manufactured After 10/01/06

1шт.

Выбрано товаров: 20
