Запчасти Case IH DCX91 (07.02) - CYLINDER, HYDRAULIC, LIFT, MASTER (07) - HYDRAULICS

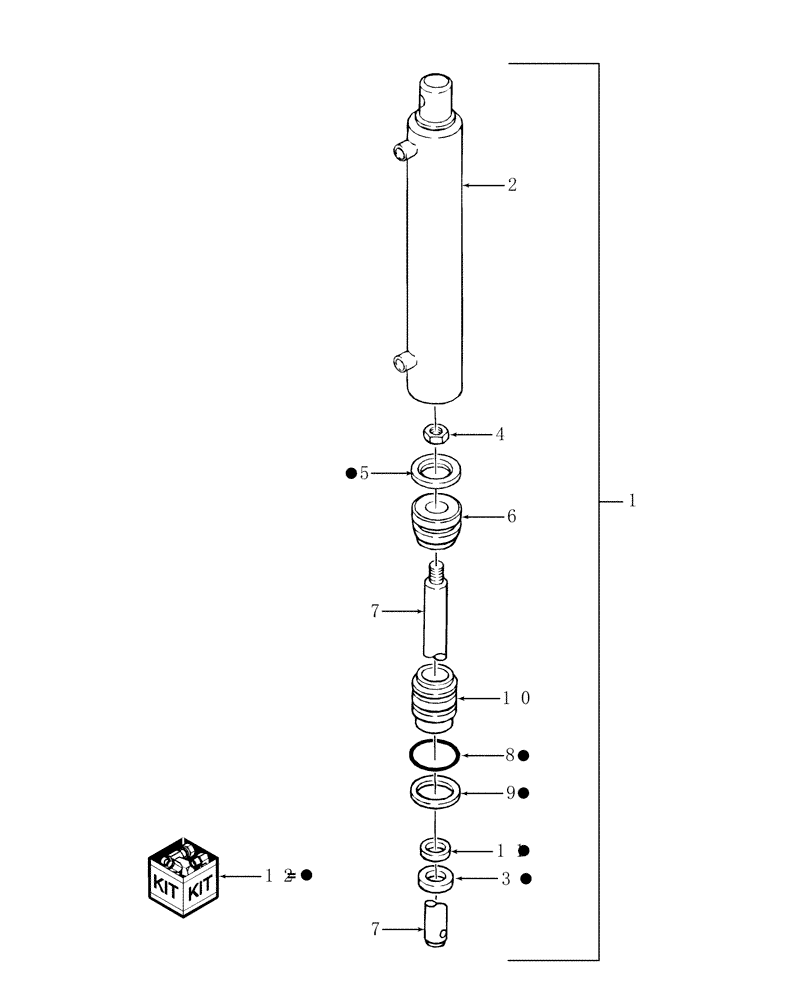

Схема запчастей Case IH DCX91 - (07.02) - CYLINDER, HYDRAULIC, LIFT, MASTER (07) - HYDRAULICS
12
5
8
6
1
2
7
4
7
10
11
9
3

Артикул

Название

Примечание

Количество

1

87018066

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, Lift, Master

1шт.

Monarch cylinders are stamped with a date code that starts with the letter "M".

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86557272

SEAL

1шт.

6

87027473

PISTON

1шт.

7

87027476

PISTON ROD

1шт.

8

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Polyurethane

1шт.

9

9603673

WASHER

Back-Up

1шт.

10

87027469

HEAD

1шт.

11

2978421

O-RING

1шт.

12

87027481

SEAL KIT

Includes 3, 5, 8, 9, & 11

1шт.

Выбрано товаров: 13
