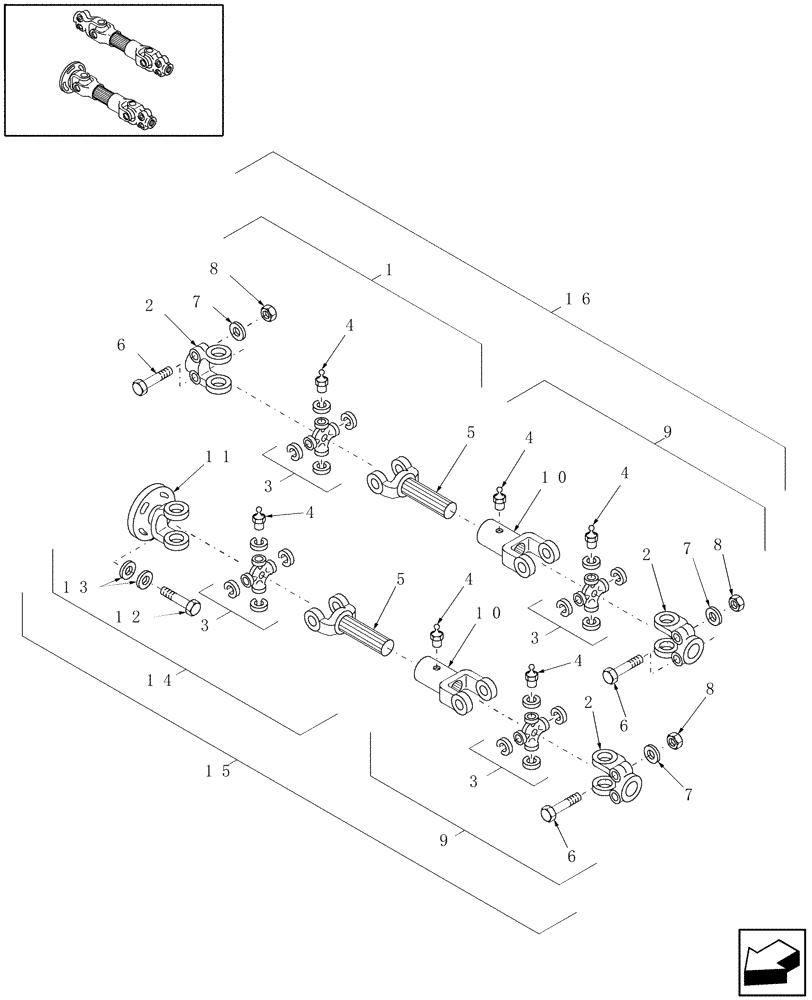

Запчасти Case IH DCX161 (15.04) - CONDITIONER ROLLS DRIVE SHAFTS (15) - CROP CONDITIONING

1

86571222

PTO

Includes: Ref. 2 Through 5

1шт.

2

86507085

YOKE

Clamp

3шт.

3

9847253

BEARING ASSY

Includes: Ref. 4

4шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

5

86571226

YOKE

Shaft,Timed

2шт.

6

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

425-118

NUT,1/2"-20, G5

6шт.

9

86571224

PTO

Yoke & Slip Yoke, Includes: Ref. 2 - 4, & 10

2шт.

10

86571225

YOKE

Slip, Timed, Includes: Ref. 4

2шт.

11

86533168

YOKE

Flange

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

13

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

14

86571223

PTO

Includes: Ref. 3, 5, & 11

1шт.

15

86595841

PTO

Includes: Ref. 2, 3, 5, 9, 10, 11, & 14

1шт.

16

86595840

PTO

Includes: Ref. 1, 2, 3, 5, 9, & 10

1шт.
