Запчасти Case IH DCX161 (15.03) - CONDITIONER DRIVE (15) - CROP CONDITIONING

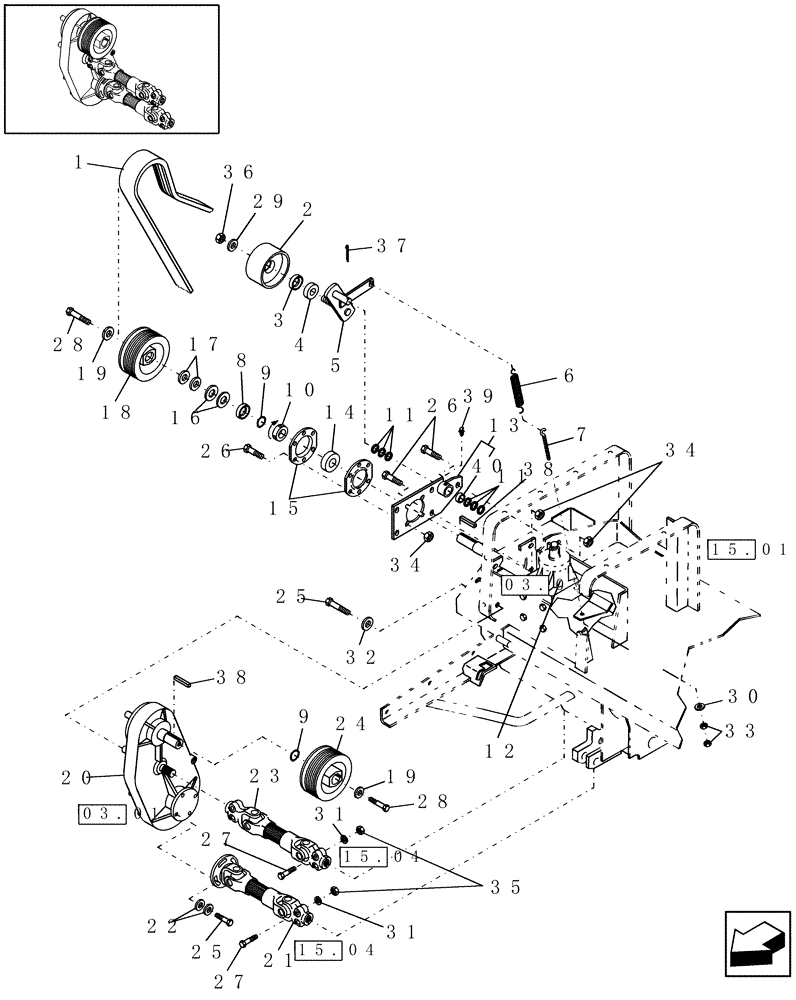

Схема запчастей Case IH DCX161 - (15.03) - CONDITIONER DRIVE (15) - CROP CONDITIONING
21
11
26
6
19
34
27
25
9
3
8
27
24
20
10
23
32
5
18
31
11
39
15
31
28
38
1
16
17
03.01
15.04
03.03
15.01
15.04
29
26
19
36
33
22
37
34
4
30
35
7
2
40
14
25
38
13
28
12
9

Артикул

Название

Примечание

Количество

1

86627797

V-BELT,0.66" W x 54.20" L, 4 Ribs

1шт.

For 740 RPM Roll Speed (Standard).

1шт.

1

86627810

V-BELT,0.66" W x 55.70" L, 4 Ribs

1шт.

For 640 RPM Roll Speed (Optional).

1шт.

2

86632727

IDLER

1шт.

3

217994

SPACER

3/4" ID x 1" x 1-1/4" L

1шт.

4

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

5

86632284

ARM

1шт.

6

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

1шт.

7

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

G2, 3/8"-16 x 6-1/2"

1шт.

8

86510186

SPACER

1шт.

9

626286

SNAP RING

2шт.

10

455112R11

COLLAR

& Set Screw

1шт.

11

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

6шт.

12

86518543

GEARBOX

1шт.

12

86518543R

REMAN-GEARBOX

Reman Gearbox

1шт.

12

86518543C

CORE-GEARBOX

Return Number

1шт.

13

86632943

PLATE

1шт.

14

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

1шт.

15

86629969

FLANGE

2шт.

16

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4ARшт.

17

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

2ARшт.

18

86632264

PULLEY

7" OD

1шт.

19

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

2шт.

20

86592075

GEARBOX

Conditioner

1шт.

20

86592075R

REMAN-GEARBOX

Reman Gearbox, DCX161 Pivot Tongue Disc Mower Cond. 9/01 - 4/08

1шт.

20

86592075C

CORE-GEARBOX

Return Number

1шт.

21

86595841

PTO

Drive Shaft, Flanged, Conditioner Gearbox

1шт.

22

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

23

86595840

PTO

Gearbox

1шт.

24

86632265

SHEAVE

6" OD

1шт.

For 740 RPM Roll Speed (Standard).

1шт.

24

86632264

PULLEY

7" OD

1шт.

For 640 RPM Roll Speed (Optional).

1шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

9шт.

26

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

9шт.

27

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

29

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

1шт.

30

495-21044

WASHER,3/8"

1шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

5шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

425-288

FLANGE NUT,Flg, 1/2"-13, G5

9шт.

35

425-118

NUT,1/2"-20, G5

6шт.

36

232-41412

LOCK NUT,3/4"-10, GC

1шт.

37

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

38

87485

KEY,50.8mm OAL x 7.96mmThk

Square, 5/16" x 2"

2шт.

39

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

40

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.

Выбрано товаров: 50
