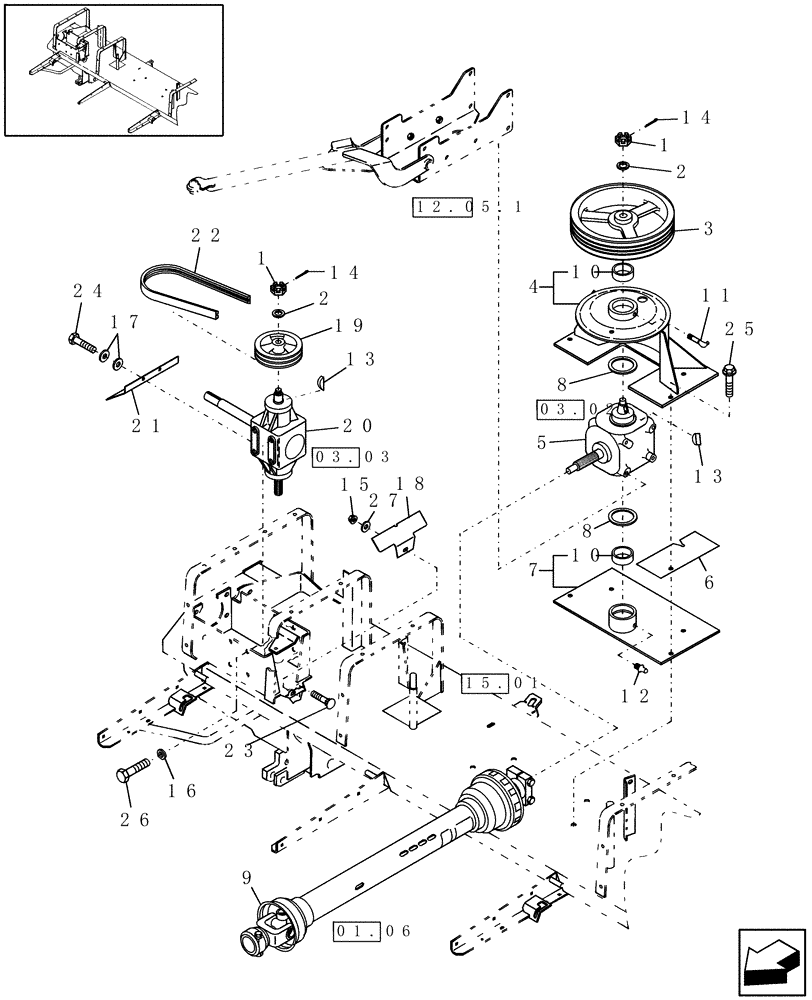

Запчасти Case IH DCX161 (14.05) - HEADER DRIVE, CENTER & RIGHT SIDE (14) - CROP CUTTING

1

49027

SLOTTED NUT

Slotted

2шт.

2

672

WASHER

2шт.

3

86632255

PULLEY

1шт.

4

86641961

SUPPORT

1шт.

5

86572192

GEARBOX

Pivot

1шт.

5

86572192R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

5

86572192C

CORE-GEARBOX

Return Number, Gearbox, Pivot

1шт.

6

86632259

SHIM

1шт.

7

86632258

PLATE

1шт.

8

86523854

THRUST WASHER

2шт.

9

0C

ORDER COMPONENTS

Secondary PTO

1шт.

10

86512604

DRIVE BUSHING,88.9mm ID x 93.66mm OD x 25.65mm L

2шт.

11

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

2шт.

14

432-832

COTTER PIN,1/8" x 2"

2шт.

15

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

17

495-21038

WASHER,5/16"

4шт.

18

86629762

SHIELD

1шт.

19

86632261

PULLEY

1шт.

20

86518543

GEARBOX

Bevel

1шт.

20

86518543R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

20

86518543C

CORE-GEARBOX

Return Number

1шт.

21

86632263

SHIELD

1шт.

22

86627796

V-BELT,0.66" W x 147.00" L, 2 Ribs

1шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

25

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

26

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

8шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.
