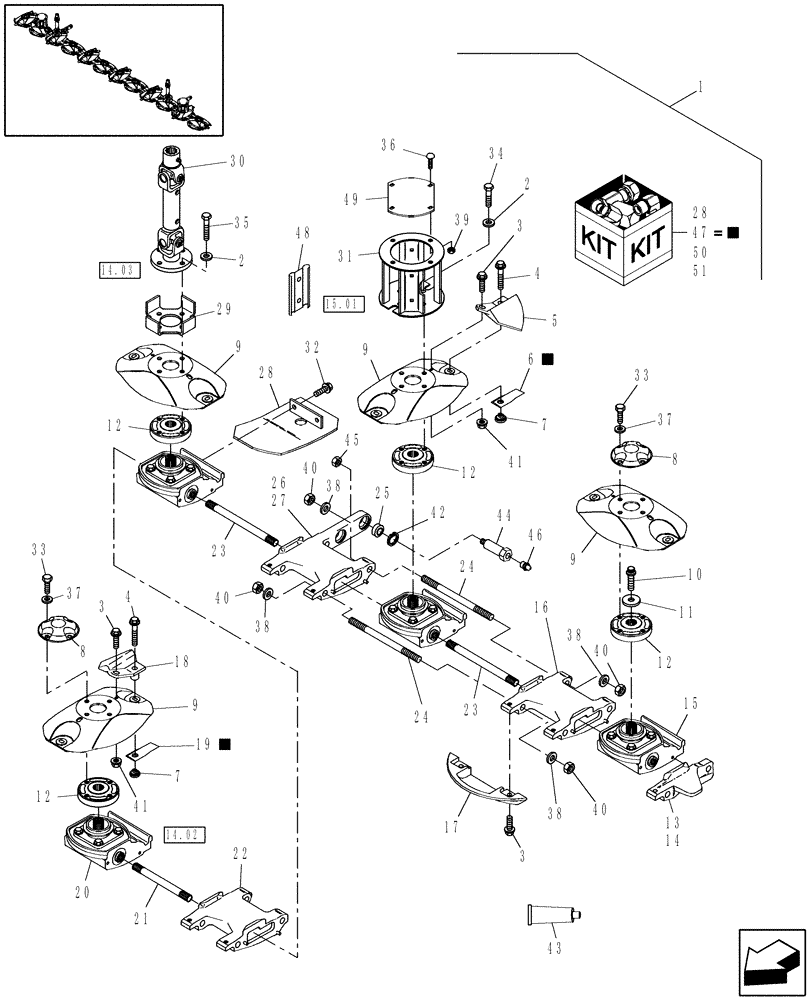

Запчасти Case IH DCX161 (14.01) - CUTTERBAR (14) - CROP CUTTING

1

87039902

CUTTERBAR

1шт.

1

87688687

CUTTERBAR

Ref. 30 and Ref. 31 Not Included

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

3

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

48шт.

3

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

24шт.

Replaces 86515925 in kits 87040840 & 87040841

1шт.

4

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

24шт.

5

87040840

KIT

Lifter, CW, Includes: (2) Ref. 3, 4, 7, 41, two CW lifters and instructions

1шт.

6

9847683

BLADE,Knife CW

CW, 7° Twist

1шт.

6

86621872

BLADE

CW, 14° Twist

1шт.

6

87029587

BLADE

CW, Over-Serrated, 14° Twist

1шт.

6

86532078

KNIFE

Straight

1шт.

7

87725066

NUT

1/2" Special

24шт.

7

87725066

NUT

Knife, Start Year: 01-APR-06

24шт.

8

9828165

CAP

8шт.

9

87646406

DISC

12шт.

10

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

12шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

12шт.

12

86629692

HUB

12шт.

13

86629691

ARM

LH, Includes: Groove Pins

1шт.

13

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

2шт.

14

86629690

ARM

End, RH - Includes: Groove Pins

1шт.

14

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

2шт.

15

0C

ORDER COMPONENTS

Module, Control, CW

6шт.

16

86506070

SPACER

Includes: Groove Pins

2шт.

16

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

8шт.

17

86565383

GUARD

Rock, See Figure Note

12шт.

Prior To MY 2006

1шт.

17

87047845

STONEGUARD

See Figure Note

12шт.

From MY 2006

1шт.

18

87040841

KIT

Lifter, CCW, Includes: (2) Ref. 3, 4, 7, 41, (2) CCW lifters and instructions

12шт.

19

9847684

BLADE,Knife CCW

CCW, 7° Twist

1шт.

19

86621873

BLADE

CCW, 14° Twist

1шт.

19

87029588

BLADE

CCW, Over-Serrated, 14° Twist

1шт.

19

86532078

KNIFE

Straight

1шт.

20

0C

ORDER COMPONENTS

Module, Control, CCW

6шт.

21

86519042

SHAFT

L = 248mm

7шт.

22

86506032

SPACER

Includes: Groove Pins

7шт.

22

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

28шт.

23

86519039

SHAFT

L = 268mm

4шт.

24

86501934

THREADED ROD

Services Both Partially and Fully-Threaded Rods

24шт.

25

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

26

86540364

SPACER

LH, Includes: Groove Pins

1шт.

26

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

4шт.

27

87057901

ARM ASSY.

RH, Includes: Groove Pins

1шт.

27

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

4шт.

28

86572263

SKID/SHOE

[Welded Shoe], See Figure Note

12шт.

Prior To MY 2006

1шт.

28

87047426

SKID/SHOE

[Formed Shoe], See Figure Note

12шт.

From MY 2006

1шт.

28

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

12шт.

28

86630488

SHOE

Hi Skid

12шт.

28

715289026

DIA KIT, HARVESTER

High Stubble Kit, Includes (8) Hi Skid Shoe 86630488 Plus Instructions

1шт.

29

86629689

DISC

2шт.

30

86565923

SHAFT

2шт.

Not Included With Ref. 1 Cutterbar Assy, Must Be Ordered Separate.

1шт.

31

86634229

DRUM

2шт.

Prior To PIN HCA0012101

1шт.

31

87040772

DRUM

2шт.

From PIN HCA0012101

1шт.

Not Included With Ref. 1 Cutterbar Assy, Must Be Ordered Separate.

1шт.

32

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

34

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

35

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

36

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

37

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

38

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

48шт.

39

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

40

429-1012

NUT,3/4"-10, G8

48шт.

41

86544265

FLANGE NUT,Flg, 1/2"-13, G8

24шт.

42

100-21162

SNAP RING,1.625", Int, #162

4шт.

43

132096A1

GREASE

14oz. tube

1шт.

44

86571960

BOLT

Cutterbar Mounting

4шт.

44

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

45

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

46

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

47

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 19

1шт.

47

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 19

1шт.

47

87037027

SET OF BLADES

Includes (16) 14° CW OS Blades, Ref 6 & (16) 14° CCW OS Blades, Ref 19

1шт.

48

86633750

WEAR STRIP

1шт.

49

86631895

COVER

2шт.

50

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

51

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.
