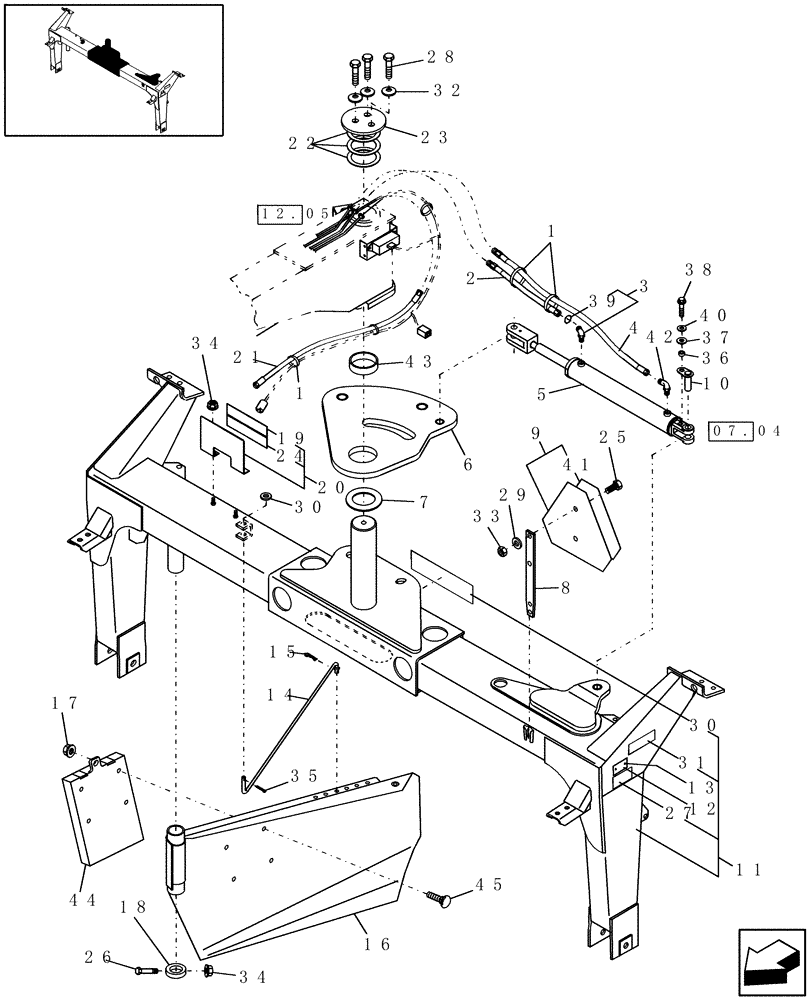

Запчасти Case IH DCX161 (12.08) - TRAILFRAME REAR (12) - MAIN FRAME

1

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

2

86539890

HOSE

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

4

86539891

HOSE

1шт.

5

86630071

HYDRAULIC CYLINDER

Swing

1шт.

Prior to PIN HAJ0005117

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 86630071

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

5

86643606

HYDRAULIC CYLINDER

Swing

1шт.

BTWN PIN HAJ0005117 & HCA0012022

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 86643606

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

5

87018098

HYDRAULIC CYLINDER

Swing, Monarch

1шт.

Components interchangeable with 86643606.

1шт.

From PIN HCA0012023

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

6

86631782

PLATE ASSY.

1шт.

When Ordering Plate also Order Ref. 43.

1шт.

Transporter Ready Part.

1шт.

Prior To PIN HCA0012112

1шт.

7

86568174

WASHER

1шт.

8

86535159

ARM

SMV

1шт.

9

86547710

EMBLEM

KIT SMV Emblem

1шт.

10

86603686

PIN,25.4mm OD x 90mm L

2шт.

11

86631780

FRAME

Trail, Includes: Decals

1шт.

Transporter Ready Part.

1шт.

Prior To PIN HCA0012112

1шт.

11

87055692

FRAME ASSY

Trail, Includes: Decals

1шт.

From PIN HCA0012112

1шт.

12

NSS

NOT SOLD SEPARAT

PIN PLATE

1шт.

13

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

14

86506511

ADJUSTMENT ROD

2шт.

15

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

5/32" x 2-3/4"

2шт.

16

86627020

SHIELD

LH (Not Shown)

1шт.

16

86627018

SHIELD

RH

1шт.

17

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

18

86545693

COLLAR

2шт.

19

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

20

86574272

ANGLE

1шт.

21

86539892

HOSE,9.65 mm ID x 1003.3 mm

1шт.

22

86510725

WASHER

1шт.

23

86627704

PLATE

1шт.

24

86547783

REFLECTOR,Tape, Red Orange

Red/OrangeFluorescent

1шт.

25

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

26

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

27

86624774

DANGER DECAL

DANGER, Header May Fall Rapidly

2шт.

27

86625174

DANGER DECAL

DANGER, Header May Fall Rapidly, French

2шт.

27

86625175

DANGER DECAL

DANGER, Header May Fall Rapidly, Spanish

2шт.

28

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

29

492-11010

LOCK WASHER,#10

2шт.

30

86624776

DECAL

CASE IH

1шт.

31

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

2шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

33

225-14110

NUT,#10-24

2шт.

34

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

35

394818

COTTER PIN,M5 x 25

2шт.

36

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

2шт.

37

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

38

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

41

86547711

DECAL,SMV

SMV

1шт.

42

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

43

86568155

BUSHING

1шт.

Transporter Ready Part.

1шт.

Prior To PIN HCA0012112

1шт.

44

86613674

CASE

1шт.

45

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.
