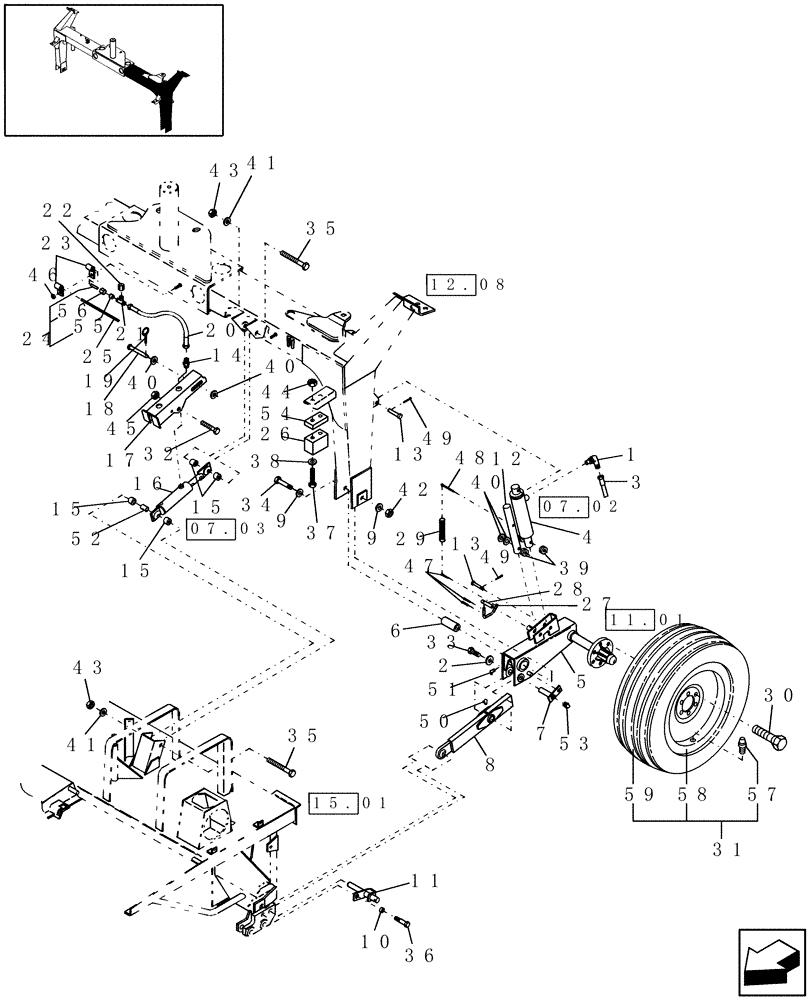

Запчасти Case IH DCX161 (12.07) - TRAILFRAME LEFT (12) - MAIN FRAME

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

2

86516694

WASHER

1шт.

3

86539889

HOSE

1шт.

4

86627756

HYDRAULIC CYLINDER

Slave

1шт.

Prior to PIN HCA0012023

1шт.

4

87573687R

REMAN-HYD CYLINDER

DCX161 Pivot Tongue (9/01-4/08) Prior To PIN HCA0012023, N.A. Only

1шт.

87573687C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

4

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Cylinder, Slave, Monarch

1шт.

Cylinder head will protrude beyond end of barrel.

1шт.

From PIN HCA0012023

1шт.

4

87573687R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

5

0C

ORDER COMPONENTS

HUB & SPINDLE

1шт.

6

86632243

SPACER

120.0 / 120.5 mm L

1шт.

7

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

8

86632234

ARM ASSY.

1шт.

9

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

10

167381

SPACER

1шт.

11

86522799

PIN

1шт.

12

86632240

ROD

1шт.

13

86529064

PIN

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

15

86599380

SPACER

4шт.

16

86627758

HYDRAULIC CYLINDER

Tilt

1шт.

87394809R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), REMAN FOR NEW P/N 86627758

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Prior to PIN HCA0012023

1шт.

16

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt, Monarch

1шт.

87394809R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Cylinder head will protrude beyond end of barrel.

1шт.

From PIN HCA0012023

1шт.

17

86627885

CHAMBER

1шт.

18

86510381

PIN

1шт.

19

270184

LINCH PIN,6.35mm OD

Klik

1шт.

20

86539893

HOSE,9.65 mm ID x 571.5 mm

1шт.

21

218-594

TEE,3/4"-16, 37 Degree

1шт.

22

218-755

CAP,37 Degree, 3/4"-16

1шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

24

86539895

HYD TUBE,12.70 mm OD

1шт.

25

86539896

HYD TUBE,12.70 mm OD

Includes: Ref. 55 & 56

1шт.

26

86519305

BUMPER

1шт.

27

86631667

ROD

Latch

1шт.

28

86546360

PIN

1шт.

29

86539129

SPRING

1шт.

30

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

31

0C

ORDER COMPONENTS

TIRE & WHEEL, Includes: Ref. 57, 58, & 59

1шт.

32

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

33

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

34

426-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

35

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

36

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

37

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

495-11053

WASHER,1/2", SAE

2шт.

39

495-11066

WASHER,5/8", SAE

9шт.

40

495-11081

WASHER,3/4", SAE

2шт.

41

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

42

425-1016

NUT,1"-8, G5

1шт.

43

232-41412

LOCK NUT,3/4"-10, GC

2шт.

44

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

45

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

46

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

47

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

48

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

49

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

50

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

51

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

52

87033961

BUSHING

2шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

54

86558691

PLATE

1шт.

55

218-364

SLEEVE,37 Degree, 1/2" Tube

2шт.

56

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

2шт.

57

387897R91

VALVE STEM

1шт.

58

86621298

WHEEL

1шт.

59

86564435

TYRE/TIRE

31 x 13.50 - 15

1шт.
