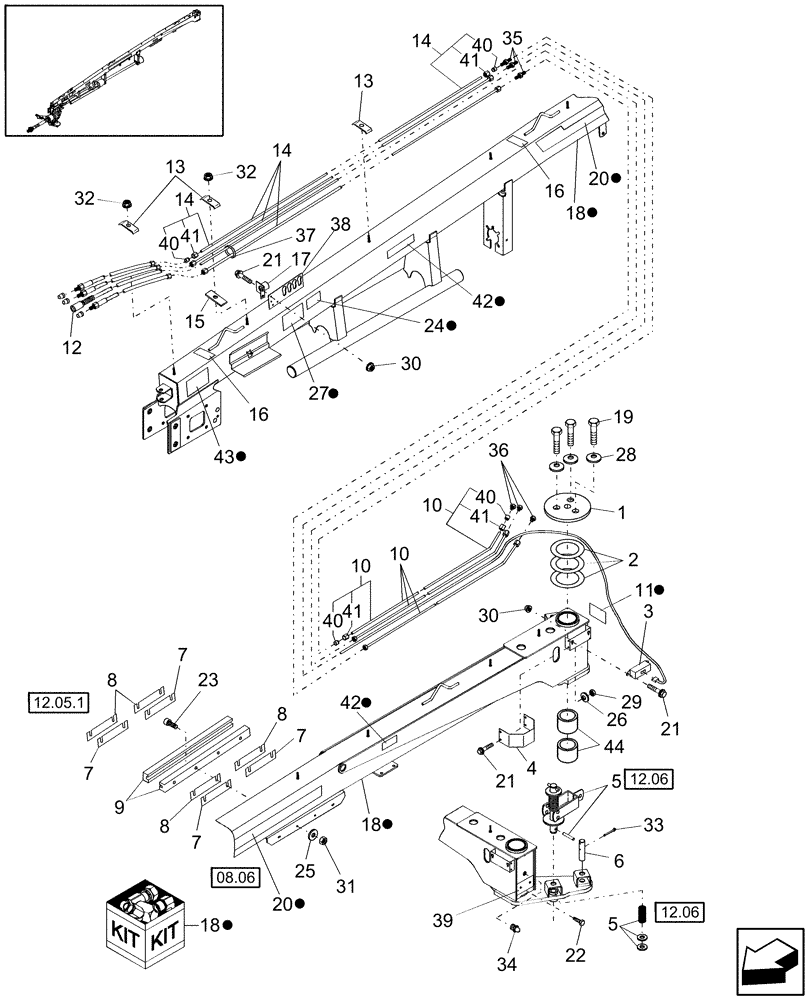

Запчасти Case IH DCX161 (12.05) - TONGUE & HYDRAULIC LINES (12) - MAIN FRAME

1

86627704

PLATE

1шт.

2

86510725

WASHER

1шт.

3

86561136

MODULE

Lighting

1шт.

4

86567415

COVER

1шт.

5

0C

ORDER COMPONENTS

Latch

1шт.

6

86605649

PIN

1шт.

7

58639

SHIM

.036" thk

4шт.

8

64612

SHIM,0.012" Thk

4шт.

9

86538357

CHANNEL

2шт.

10

86570701

HYD TUBE,12.70 mm OD

3шт.

11

770033

WARNING DECAL

Engage Safety Lock

1шт.

11

782380

WARNING DECAL

Engage Safety Lock, French

1шт.

12

86560342

WIRE HARNESS

Includes 51 thru 62, Connectors and Terminals, but Not Illustrated

1шт.

13

86571694

CLAMP

11шт.

14

86570700

HYD TUBE,12.70 OD x 3566.90 mm L

3шт.

15

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

11шт.

16

NSS

NOT SOLD SEPARAT

TAPE, Black Vinyl Foam (Procure Locally)

1шт.

17

9611467

HOLDER

Plug

1шт.

18

86595149

TONGUE

1шт.

Transporter Ready Part.

1шт.

Prior To PIN HCA0012112

1шт.

18

87055796

TONGUE

Tongue

1шт.

From PIN HCA0012112

1шт.

19

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

20

86626406

DECAL

DCX161, LH

1шт.

20

86626407

DECAL

DCX161, RH (Not Shown)

1шт.

21

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

22

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

23

87032817

BOLT

Cap, HSH, 5/16" x 1"

8шт.

24

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

24

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

24

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

25

495-21038

WASHER,5/16"

8шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

86622073

WARNING DECAL

English

1шт.

27

86622074

WARNING DECAL

WARNING, French

1шт.

27

86622075

WARNING DECAL

WARNING, Before Operating This Machine, Spanish

1шт.

28

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

29

425-104

NUT,1/4"-20, Cl 5

4шт.

30

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

31

280736

NUT,5/16"-18, GC

8шт.

32

231-5346

FLANGE NUT,Flg, 3/8"-16

11шт.

33

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

2шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

35

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3шт.

36

218-775

PLUG,3/4"-16, 37 Degree

3шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11шт.

38

86564683

SUPPORT

(welding required)

1шт.

39

NSS

NOT SOLD SEPARAT

Model PIN PLATE

1шт.

40

218-364

SLEEVE,37 Degree, 1/2" Tube

12шт.

41

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

12шт.

42

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

4шт.

43

86555718

DECAL

Operate With CheckChains

1шт.

44

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

2шт.

51

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

7 Cavities, To Tractor 7 Pin Receptacle

1шт.

52

87704559

TERMINAL

Splice Crimp Tin Plated Terminal

5шт.

53

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

4шт.

54

87694150

LOCKING TAB,Wedge Lock

Lock For 6 Cavity Plug To Module

1шт.

55

87694112

ELEC CONNECTOR,Female, 6 Pole

6 Cavity Recepacle Housing to Module

1шт.

56

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

2шт.

57

87694141

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Stamped Contact

4шт.

58

87694153

CONTACT HOUSING,Female, 4 Cavities

4 Cavity Receptacle Housing To Trail Frame Harness

1шт.

59

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock For 4 Contact Plug To Trail Frame Harness

1шт.

60

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Stamped Contact

3шт.

61

225161C1

ADAPTER

3 Cavity Housing, To Header Harness

1шт.

62

225290C1

DUST CAP

1шт.
