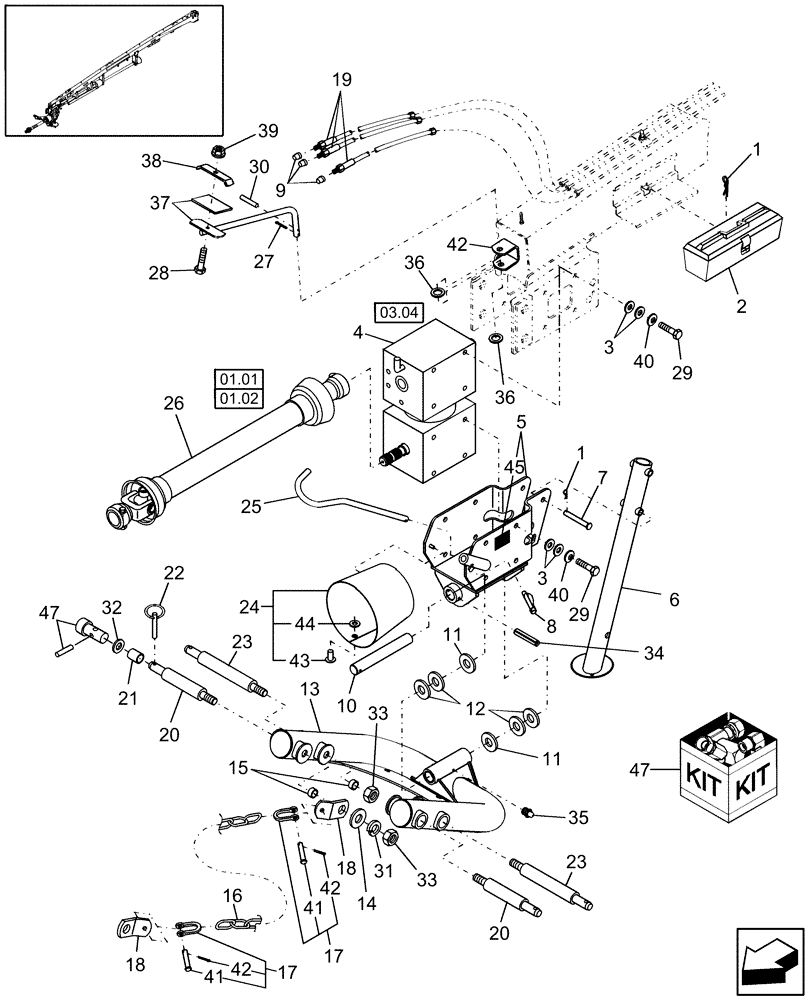

Запчасти Case IH DCX161 (12.04) - 2 POINT HITCH (12) - MAIN FRAME

1

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

5/32" x 2-3/4"

4шт.

2

5135060

TOOL BOX

1шт.

3

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

32шт.

4

86592258

GEARBOX

Swivel

1шт.

4

86592258R

REMAN-GEARBOX

Reman Gearbox

1шт.

4

86592258C

CORE-GEARBOX

Return Number

1шт.

5

86617330

TRUNNION

Includes: Ref. 46

1шт.

6

86629922

STAND

1шт.

7

29851

PIN,15.87mm OD x 128.8mm L

1шт.

8

647695

PIN,7.94mm OD

Snap

1шт.

9

116070

CAP

Oil Drain

3шт.

10

86519423

PIN

1шт.

11

233295

WASHER

2шт.

12

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

13

86629939

FRAME, HITCH

Includes: Decals

1шт.

13

86555717

DECAL

Attention, Quick Hitch

1шт.

13

165109

DECAL

Lube Fitting

1шт.

14

9801099

WASHER

2шт.

15

612121

SPACER

4шт.

16

9826529

CHAIN,799mm L

2шт.

17

573120

SHACKLE

4шт.

18

86573217

CONNECTING LINK

4шт.

19

86549016

HOSE,9.65 mm ID x 1727.2 mm

3шт.

20

86578389

PIN

L = 12.46"

2шт.

21

81846686

BUSHING,28.7mm ID x 36.7mm OD x 44.7mm L

See Ref 47

2шт.

22

132757

LINCH PIN,11.11mm OD x 44.45mm L

See Ref 47

2шт.

23

86578390

PIN

L = 15.25"

2шт.

24

86549399

SHIELD

1шт.

25

86629924

SUPPORT

1шт.

26

0C

ORDER COMPONENTS

Swivel PTO

1шт.

27

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

29

86604182

LOCK BOLT,Spcl, Gr 5

Cap, HH, Special, G5, 5/8"-11 x 1-3/4"

16шт.

30

435-1620

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

31

492-11100

LOCK WASHER,1"

2шт.

32

790435

WASHER

2шт.

33

425-1016

NUT,1"-8, G5

4шт.

34

38-12040

LOCK PIN,5/16" x 2 1/2", Slotted

1шт.

35

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

36

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

37

87029372

SUPPORT ASSY.

W/ Foam Tape

1шт.

37

853891

TAPE

Black Vinyl Foam -, Serial Range: Cut-Fit

1шт.

38

86571694

CLAMP

1шт.

39

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

40

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

41

64162

CLEVIS PIN,12.6mm OD x 54.76mm L

4шт.

42

432-816

COTTER PIN,1/8" x 1"

4шт.

43

86520136

RIVET,Aluminum, .196” Dia

3шт.

44

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

3шт.

45

86536919

DECAL

Attention, Store Jack In Middle Of Tongue, English

1шт.

45

86536920

DECAL

Attention, Store Jack In Middle Of Tongue, French

1шт.

46

165109

DECAL

Lube Fitting (Not Shown)

1шт.

47

87298929

KIT

Kit, Bushing Adapter

1шт.

Use in place of Ref. 21 & 22 with Quick Hitch - Pins Included

1шт.
