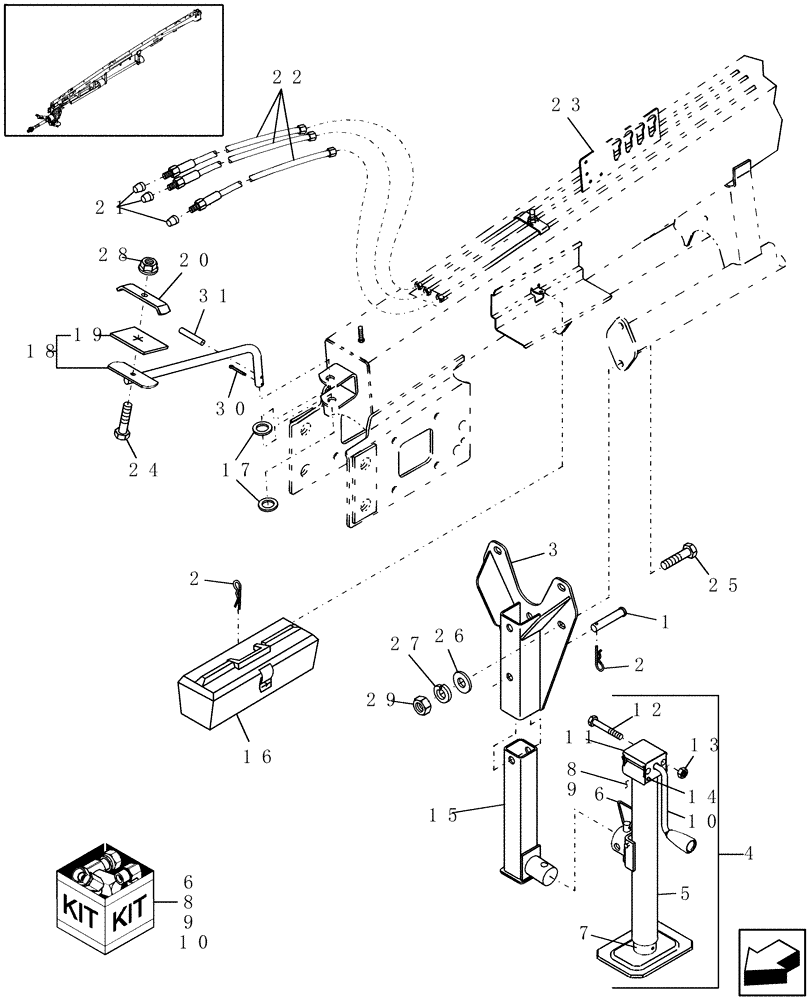

Запчасти Case IH DCX161 (12.03) - DRAWBAR HITCH, JACK, & TOOL BOX (12) - MAIN FRAME

1

86510381

PIN

2шт.

2

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

5/32" x 2-3/4"

1шт.

3

86617643

SUPPORT ASSY.

1шт.

4

86617866

JACK

1шт.

5

NSS

NOT SOLD SEPARAT

Jack TUBE, outer

1шт.

6

86590810

KIT

Pin & Chain

1шт.

7

NSS

NOT SOLD SEPARAT

Jack TUBE, inner

1шт.

8

86590811

KIT

Gear

1шт.

9

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

10

86590812

KIT

Crank

1шт.

11

86590816

COVER

Gearbox

1шт.

12

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

13

425-104

NUT,1/4"-20, Cl 5

1шт.

14

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

15

86629700

TUBE

1шт.

16

5135060

TOOL BOX

1шт.

17

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

18

86595948

SUPPORT

Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

TAPE, Black Vinyl Foam (Procure Locally)

1шт.

20

86571694

CLAMP

1шт.

21

116070

CAP

Oil Drain

3шт.

22

86549016

HOSE,9.65 mm ID x 1727.2 mm

3шт.

23

86564683

SUPPORT

(welding required)

1шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

25

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

26

495-11066

WASHER,5/8", SAE

4шт.

27

492-11062

BEARING WASHER,5/8"

4шт.

28

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

29

425-1010

NUT,5/8"-11, G5

4шт.

30

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

31

435-1620

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.
