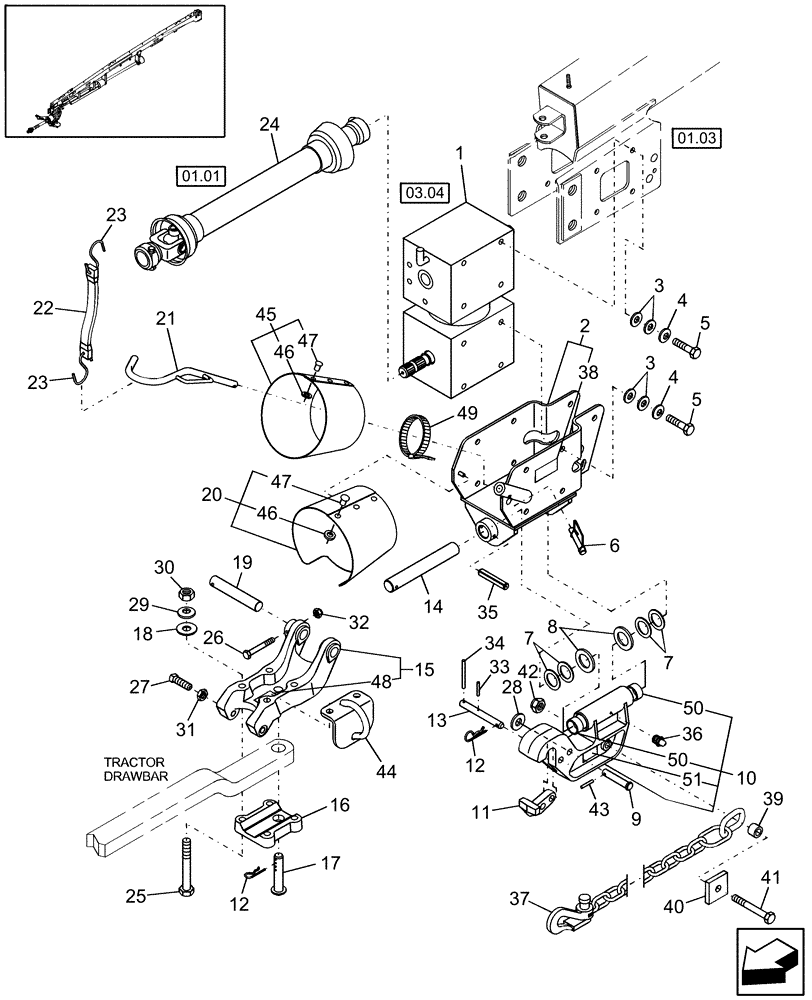

Запчасти Case IH DCX161 (12.01) - DRAWBAR HITCH & SAFETY CHAIN (12) - MAIN FRAME

1

86592258

GEARBOX

Swivel

1шт.

1

86592258R

REMAN-GEARBOX

Reman Gearbox

1шт.

1

86592258C

CORE-GEARBOX

Return Number

1шт.

2

86617330

TRUNNION

Includes: Ref. 52

1шт.

3

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

32шт.

4

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

5

86604182

LOCK BOLT,Spcl, Gr 5

Cap, HH, special, G5, 5/8"-11 x 1-3/4"

16шт.

6

647695

PIN,7.94mm OD

1шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

8

233295

WASHER

2шт.

9

86510381

PIN

1шт.

10

86617348

HITCH ASSY

1шт.

11

86603572

PAWL

1шт.

12

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

5/32" x 2-3/4"

2шт.

13

86602275

PIN,19.05mm OD x 175mm L

1шт.

14

86519423

PIN

1шт.

15

86632109

SUPPORT ASSY.

1шт.

16

86632111

CLAMP

1шт.

17

846927

PIN

1шт.

18

578092

WASHER,19.4mm ID x 47.6mm OD x 3.43mm Thk

3/4"

4шт.

19

86624603

PIN

1шт.

20

86602230

SHIELD

1шт.

21

86598503

SUPPORT

1шт.

22

273672

FASTENER

1шт.

23

115680

HOOK

2шт.

24

0C

ORDER COMPONENTS

PTO, drawbar hitch

1шт.

25

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

26

86625652

HEX SOC SCREW,3/8" - 16 x 2.50"

HH, G8, 3/8"-16 x 2-1/2"

1шт.

27

485-17540

SET SCREW,Sq Hd, 3/4"-10 x 2 1/2"

2шт.

28

495-11081

WASHER,3/4", SAE

1шт.

29

492-11075

LOCK WASHER,3/4"

4шт.

30

425-1012

NUT,3/4"-10, G5

4шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

32

232-4146

NUT,3/8"-16, GC

1шт.

33

435-1620

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

34

432-1648

COTTER PIN,1/4" x 3"

1шт.

35

38-12040

LOCK PIN,5/16" x 2 1/2", Slotted

1шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

37

850116

CHAIN

1шт.

38

86536919

DECAL

Attention, Store Jack In Middle Of Tongue, English

1шт.

38

86536920

DECAL

Attention, Store Jack In Middle Of Tongue, French

1шт.

39

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

40

87587325

PLATE

Plate

1шт.

41

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

42

85700693

NUT,5/8" - 11, Gr C

1шт.

43

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

44

86632113

SUPPORT ASSY.

Loop, 2 piece design, w/ Ref.15

1шт.

45

86532561

SHIELD

1шт.

46

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

7шт.

47

86520136

RIVET,Aluminum, .196” Dia

7шт.

48

86605697

DECAL

Torque

1шт.

49

527350

STRAP

1/2" x 20"

1шт.

50

137913

BUSHING

2шт.

51

86604628

WARNING DECAL

Pawl, English

1шт.

51

86605150

DECAL

Pawl, French

1шт.

52

165109

DECAL

Lube Fitting (Not Shown)

1шт.
