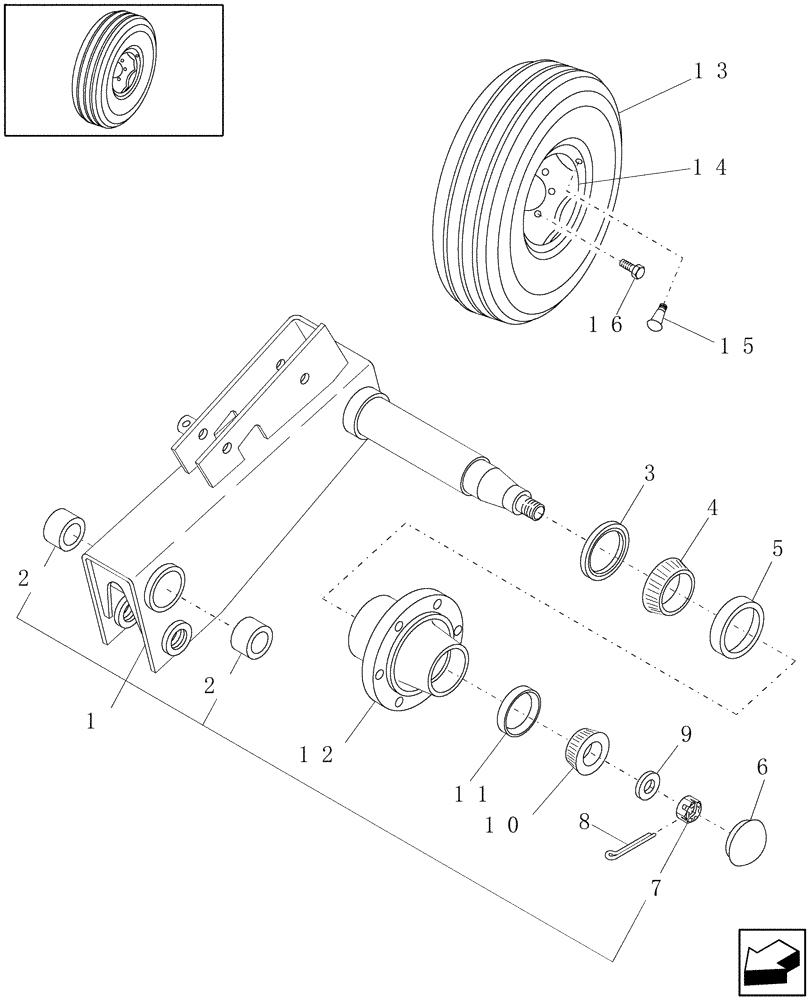

Запчасти Case IH DCX161 (11.01) - HUB, SPINDLE & TIRES (11) - WHEELS

1

86631413

ARM ASSY.

LH

1шт.

1

86632374

ARM ASSY.

RH

1шт.

2

788926

DRIVE BUSHING,50.75mm ID x 54mm OD x 47.8mm L

4шт.

3

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

2шт.

4

199954

BEARING CONE,50mm ID x 21.5mm W

2шт.

5

199955

BEARING CUP,82mm OD x 17mm W

2шт.

6

249128

HUB CAP

2шт.

7

280172

SLOTTED NUT,7/8"-14

2шт.

8

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

9

9845587

WASHER,23.8mm ID x 44.5mm OD x 6.4mm Thk

M23

2шт.

10

175507

BEARING CONE,35 mm ID x 16.764 mm

2шт.

11

H433209

BEARING CUP

2шт.

12

86632701

HUB

2шт.

13

86564435

TYRE/TIRE

31 x 13.50 - 15

2шт.

14

86621298

WHEEL

2шт.

15

387897R91

VALVE STEM

2шт.

16

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

17

87298567

KIT

Wheel Bearing

1шт.

Includes Ref. 3 Thru 11

1шт.

Ship Direct Option

1шт.
