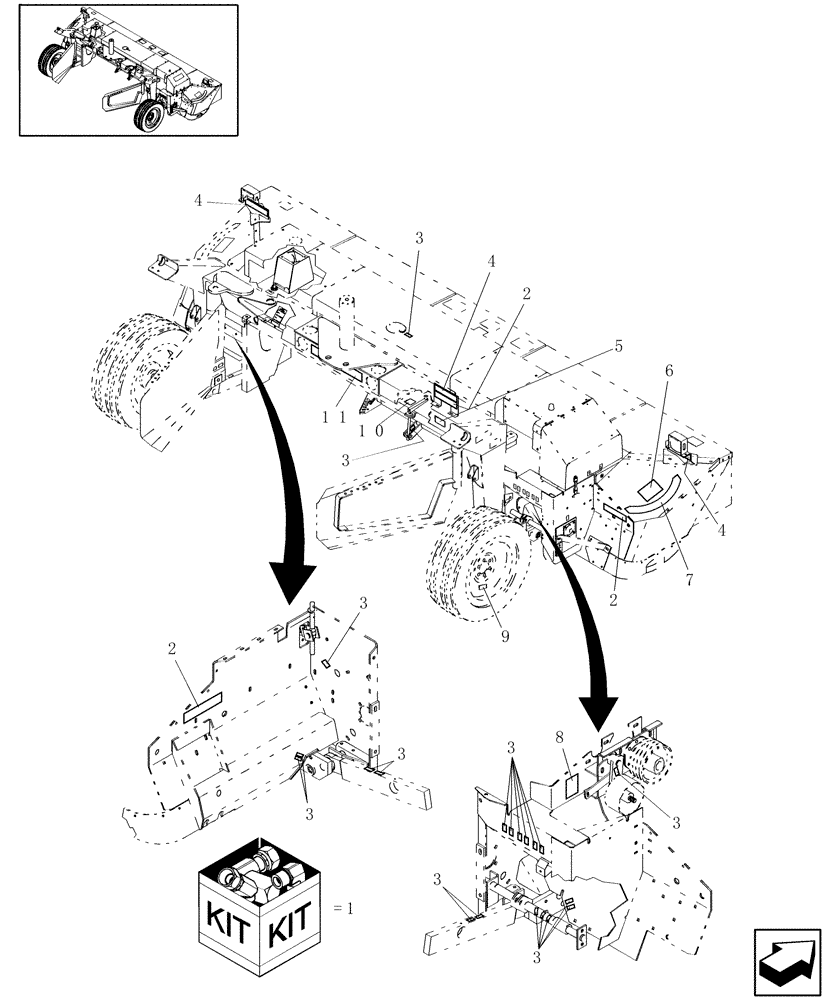

Запчасти Case IH DCX161 (08.07) - DECALS, BASE REAR (08) - SHEET METAL

1

86617651

DECAL KIT

Includes: Ref. 2 -11 (See Figures 08.05 & 08.06)

1шт.

2

86547783

REFLECTOR,Tape, Red Orange

Red/Orange Fluorescent

3шт.

3

165109

DECAL

Lube Fitting

1шт.

4

86547781

REFLECTOR,RED

Red Retroreflective

3шт.

5

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

5

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

5

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

6

86628571

WARNING DECAL

WARNING, Stand Clear, English

1шт.

6

86622074

WARNING DECAL

WARNING, Stand Clear, French

1шт.

7

80772110

WARNING DECAL

WARNING, Knife Tip Path, English

1шт.

7

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

8

86599243

DECAL

Spring

1шт.

9

183155

DECAL

Torque, English

2шт.

9

602232

DECAL

Torque, French

2шт.

9

9804237

DECAL

Torque, Spanish

2шт.

10

195096

DECAL

Roll Pressure, English

1шт.

10

601613

DECAL

Roll Pressure, French

1шт.

11

86624776

DECAL

Logo, CASE IH

1шт.
