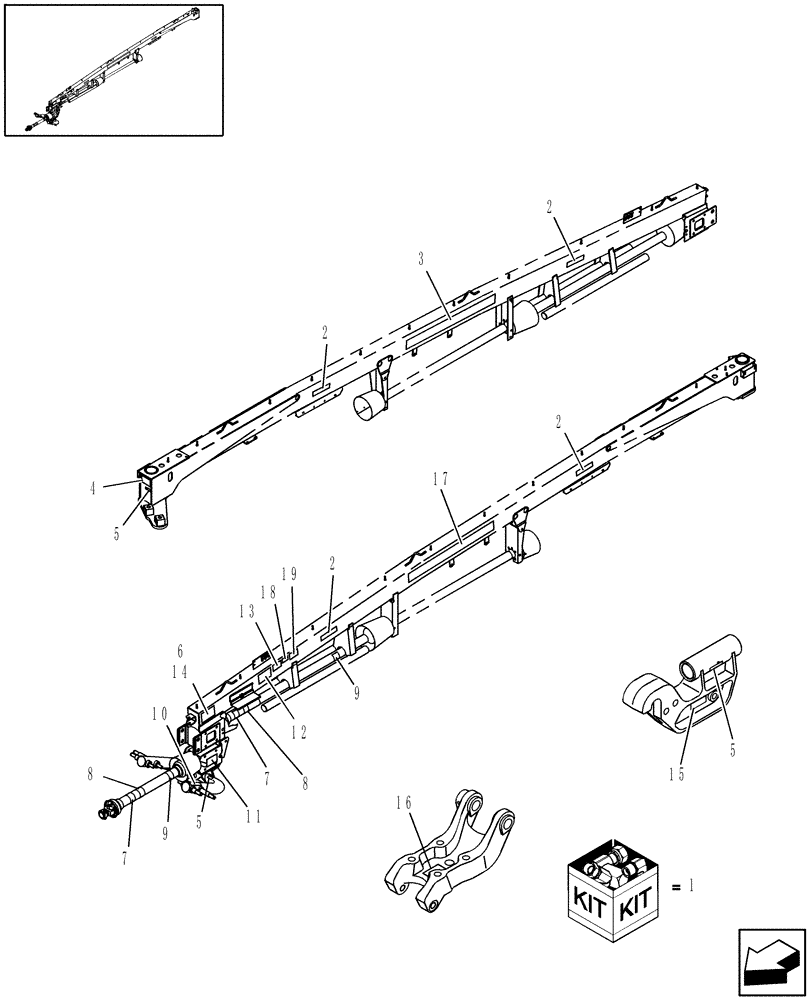

Запчасти Case IH DCX161 (08.05) - DECALS, TONGUE (08) - SHEET METAL

1

86617651

DECAL KIT

Includes: Ref. 2 -19 (See Figures 08.06 & 08.07)

1шт.

2

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

4шт.

3

86626407

DECAL

DCX161, RH

1шт.

4

770033

WARNING DECAL

Engage Safety Lock, English

1шт.

4

782380

WARNING DECAL

Engage Safety Lock, French

1шт.

5

165109

DECAL

Lube Fitting

1шт.

6

86555718

DECAL

Operate With Check Chains, English

1шт.

2 Point Swivel Tongue Only

1шт.

6

86559765

DECAL

Operate With Check Chains, French

1шт.

2 Point Swivel Tongue Only

1шт.

6

86604332

DECAL

Drawbar Hitch

1шт.

Drawbar Hitch Only

1шт.

7

849471

DANGER DECAL

Rotating Driveline, English

2шт.

7

849482

DANGER DECAL

Rotating Driveline, French

2шт.

7

9801260

DANGER DECAL

DANGER, rotating driveline, Spanish

2шт.

8

86593134

DECAL

Lube, Grease Per Hours Shown, English

2шт.

8

86593136

DECAL

Lube, Grease Per Hours Shown, French

2шт.

9

849472

DANGER DECAL

Shield Missing, English

2шт.

9

849483

DANGER DECAL

Shield Missing, French

2шт.

10

86555717

DECAL

Attention 3PT, Quick Hitch, English

1шт.

2 Point Swivel Tongue Only

1шт.

10

86559763

DECAL

Attention 3PT, Quick Hitch, French

1шт.

2 Point Swivel Tongue Only

1шт.

11

86536919

DECAL

Attention, Store Jack In Middle Of Tongue, English

1шт.

11

86536920

DECAL

Attention, Store Jack In Middle Of Tongue, French

1шт.

12

86622073

WARNING DECAL

English

1шт.

12

86622074

WARNING DECAL

WARNING, French

1шт.

12

86622075

WARNING DECAL

CAUTION, Spanish

1шт.

13

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

13

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

13

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

14

86604332

DECAL

Attention, Drawbar Hitch

1шт.

Drawbar Hitch Only

1шт.

15

86604628

WARNING DECAL

WARNING, Use Safety Latch, English

1шт.

Drawbar Hitch Only

1шт.

15

86605150

DECAL

WARNING, Use Safety Latch

1шт.

Drawbar Hitch Only

1шт.

16

86605697

DECAL

Torque

1шт.

Drawbar Hitch Only

1шт.

17

86626406

DECAL

DCX161, LH

1шт.

18

87049205

WARNING DECAL

PTO Shielding, English

1шт.

18

87053157

DECAL

WARNING, PTO Shielding, French

1шт.

18

87053158

DECAL

WARNING, PTO Shielding, Spanish

1шт.

19

87041060

WARNING DECAL

WARNING, Transport/Roading, English

1шт.

19

87042011

WARNING DECAL

WARNING, Transport/Roading, French

1шт.

19

87042012

WARNING DECAL

WARNING, Transport/Roading, Spanish

1шт.
