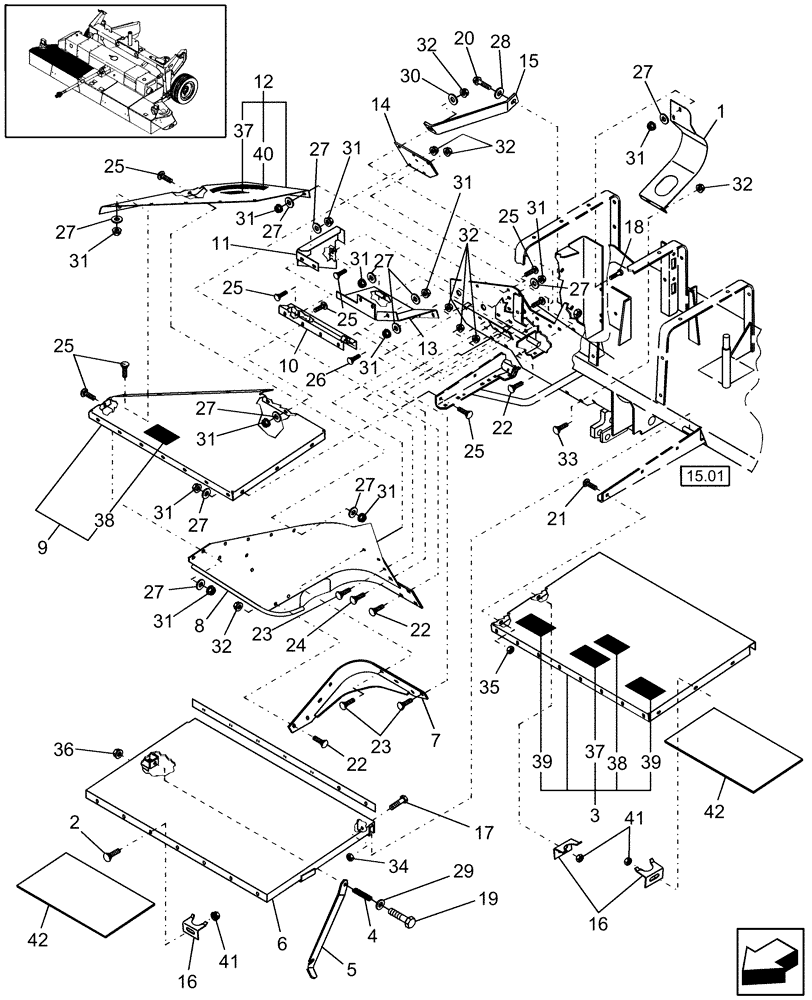

Запчасти Case IH DCX161 (08.02) - SHIELDING, RIGHT SIDE (08) - SHEET METAL

1

86631741

SHIELD

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

3

86626577

COVER

1шт.

4

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

5

86526613

LATCH

1шт.

6

86626543

HOOD

1шт.

7

86631728

SUPPORT

1шт.

7

87399537

SUPPORT

, Start Serial: Y7B652517

1шт.

8

87535097

SHEET

RH

1шт.

8

87047997

SHEET

RH, Start Serial: Y7B652517

1шт.

9

86631729

SUPPORT

RH

1шт.

10

86631731

FILLER

1шт.

10

87387511

FILLER

, Start Serial: Y7B652517

1шт.

11

86631733

COVER

1шт.

12

86631708

SHEET

RH Top

1шт.

12

87048001

SHEET

RH Top, Start Serial: Y7B652517

1шт.

13

86631735

BAFFLE

1шт.

14

86631739

PLATE

1шт.

15

86631737

BRACE

1шт.

16

86582727

CLIP

5шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

20

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

21

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

22

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

7шт.

23

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

5шт.

24

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

25

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

27шт.

26

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

28

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

29

495-21044

WASHER,3/8"

1шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

31

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

32

425-286

FLANGE NUT,Flg, 3/8"-16, G5

15шт.

33

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

34

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

35

231-5345

FLANGE NUT,Flg, 5/16"-18

6шт.

36

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

37

86628571

WARNING DECAL

Rotating Cutters, English

2шт.

37

86622074

WARNING DECAL

WARNING, French

2шт.

38

86611825

WARNING DECAL

WARNING, No Step, English

2шт.

38

86614084

WARNING DECAL

No Step, French

2шт.

39

86629146

WARNING DECAL

WARNING, Close Shield Prior To, English

2шт.

39

86629148

DECAL

WARNING, Close Shield Prior To, French

2шт.

40

80772110

WARNING DECAL

WARNING, Knife Tip Path, English

1шт.

40

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

42

86582725

LINER

Stone Guard

2шт.
