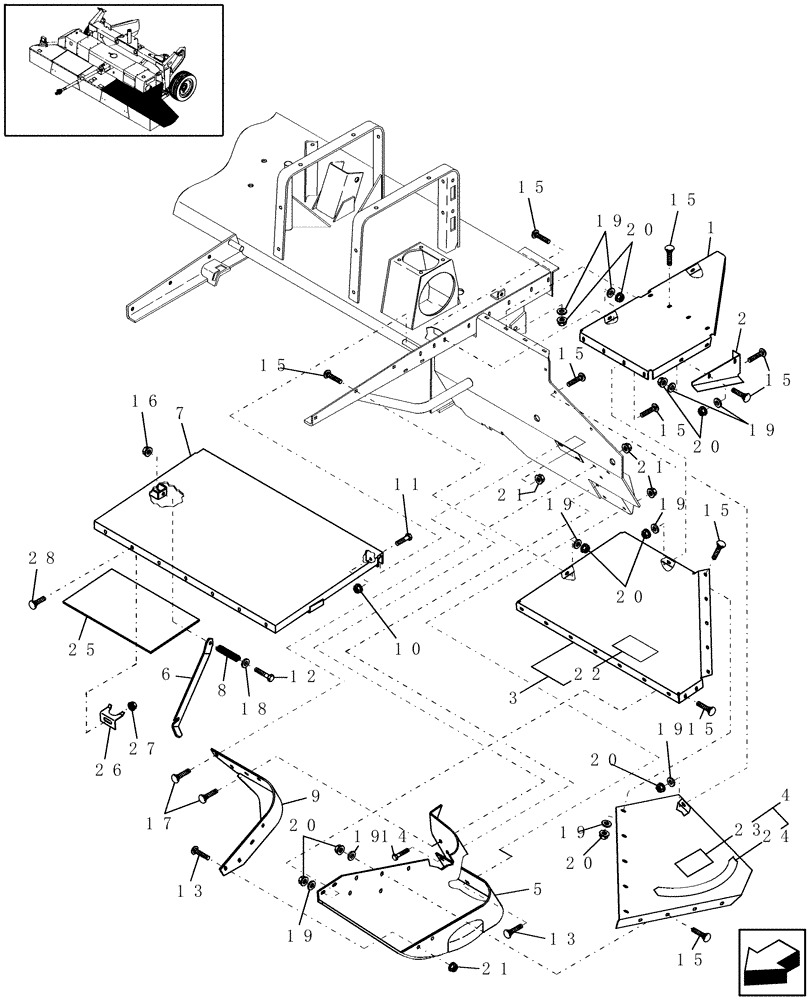

Запчасти Case IH DCX161 (08.01) - SHIELDING, LEFT SIDE (08) - SHEET METAL

1

86631745

SUPPORT

1шт.

1

87387508

SUPPORT

, Start Serial: Y7B652517

1шт.

2

86631743

COVER

, Serial Range: -Y7B652517

1шт.

3

86631746

SUPPORT

LH

1шт.

4

86631707

SHEET

1шт.

4

87047999

SHEET

, Start Serial: Y7B652517

1шт.

5

86627891

SHEET

LH

1шт.

6

86526613

LATCH

1шт.

7

86626543

HOOD

1шт.

8

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

9

86631728

SUPPORT

1шт.

9

87399534

SUPPORT

, Start Serial: Y7B652517

1шт.

10

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

11

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

12

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

29шт.

16

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

17

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

5шт.

18

495-21044

WASHER,3/8"

1шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

29шт.

20

425-285

FLANGE NUT,Flg, 5/16"-18, G5

29шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

9шт.

22

86611825

WARNING DECAL

WARNING, Do Not Use As Step, English

1шт.

22

86614084

WARNING DECAL

Do Not Use As Step, French

1шт.

23

86628571

WARNING DECAL

STAND CLEAR, English

1шт.

23

86622074

WARNING DECAL

WARNING, French

1шт.

24

80772110

WARNING DECAL

Knife Tip Path, English

1шт.

24

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

25

86582725

LINER

Stone Guard

1шт.

26

86582727

CLIP

3шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

28

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.
